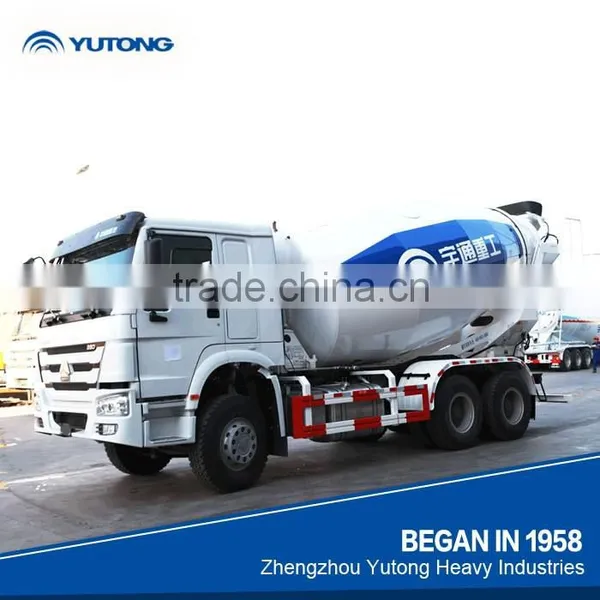

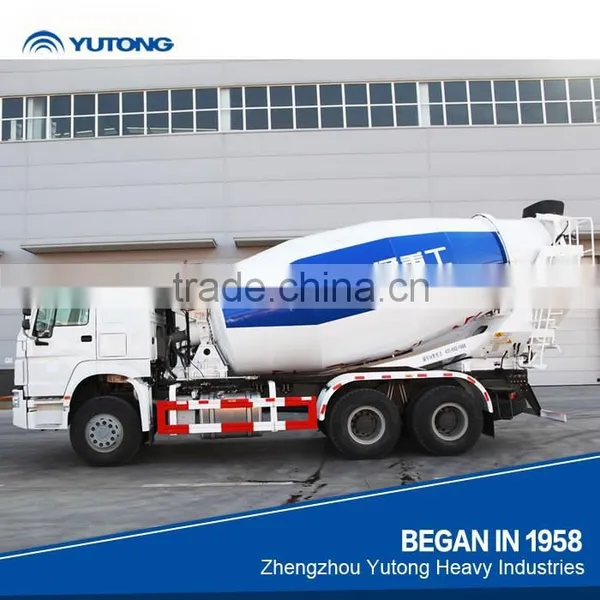

Military Technology 8 m3 Concrete Mixing Truck
Main Technical Parameters
Declared external dimension (mm) |
9400×2500×3990 |
|
Actual external dimension (mm) |
8930×2500×3910 |
|
Chassis model |
ZZ1257N3847C |
|
Curb weight of complete crane (kg) |
Actual: 14400 (Declared: 15050) |
|
Rated load (Kg) |
9820 |
|
Wheelbase (mm) |
3625+1350 |
|
Front suspension / rear suspension (mm) |
1500/2725 |
|
Approach angle/ departure angle (°) |
16/19 |
|
Wheel track of front wheel (mm) |
2022,2041 |
|
Wheel track of rear wheel (mm) |
1830/1830 |
|
Tire |
12.00-20 Common tire |
|
Agitating volume (cubic meter) |
10 |
|
Feed rate (cubic meter/minute) |
≥2.7 |
|
Discharge rate (cubic meter/minute) |
≥0.65 |
|
Discharging residual ratio (%) |
≤0.5 |
|
Rotating speed (r/min) |
0—14 |
|
Engine model |
WD615.95E |
|
Rated power of engine (kw/hp) |
247/336 |
|
Rated speed of engine (rpm) |
2200 |
|
Torque (N.m) |
1350/1300-1600 |
|
Air intake way |
Supercharging, inter-cooling |
|
Clutch |
Φ430mm Single-sheet dry type |
|
Transmission |
HW15710 |
|
Front axle(t) |
HF9 |
|
Middle and rear axles (t) |
HC16 axles |
|
Front suspension |
Non-independent leaf spring |
|
Cab |
HW76 flat-roofed and extended cab, equipped with single sleeping berth |
|
Service brake |
Dual-circuit air brake |
|
Parking brake |
Air brake braking by spring energy storage chamber |
|
Auxiliary braking |
Engine exhaust brake |
|
1.Yutong concrete mixer truck introduces the foreign advanced upper-car technology and it can match with the hydraulic systems imported from internationally renowned manufacturer. 2.Tank body of concrete mixer truck is assembled and connected by using specialized fixtures to ensure the correct concentricity of the tank body and stable operation of mixing tank. 3.Subframe of concrete mixer truck adopts high-grade anti-bending and torsion resistant longitudinal beams (formed as rectangular tubes). |
|

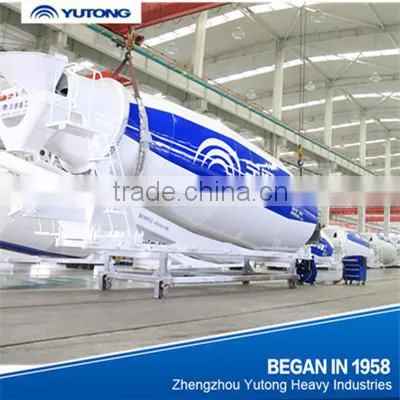

4.Longitudinal beams of concrete mixer truck are connected by using the national advanced diagonal bridging structure, which effectively increases the rigidity of the entire upper-car and improves the quality stability and operation safety of the entire vehicle. 5.Concrete mixer truck has dual sealing head structure. Reinforcing plates are added outside the heads and stiffeners are added inside the heads, greatly increasing tank body rigidity. 6.Double helical blades with optimal design are used in the tank body to realize unloading at a low rotation speed and a high displacement. 7.The concrete mixer truck adopts HOWO series chassis manufactured by China National Heavy Duty Truck and it introduces foreign advanced upper-car technology. 8.The concrete mixer truck has unique and beautiful modeling, advanced welding technology of tank body, high performance, reliable quality and highly cost-effective. |
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
