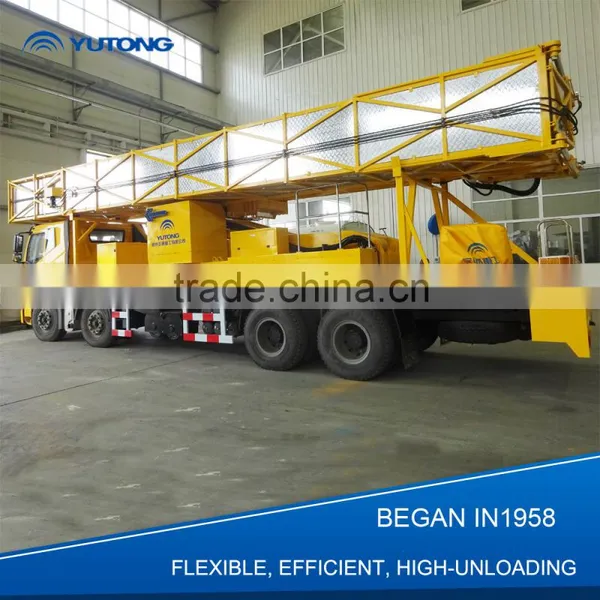

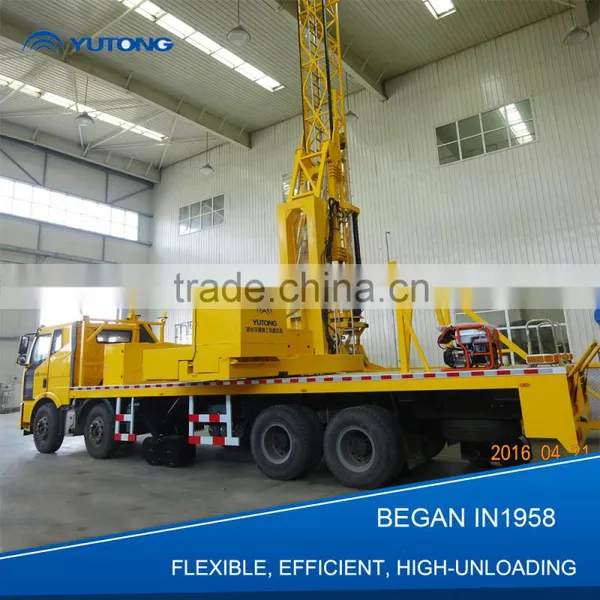

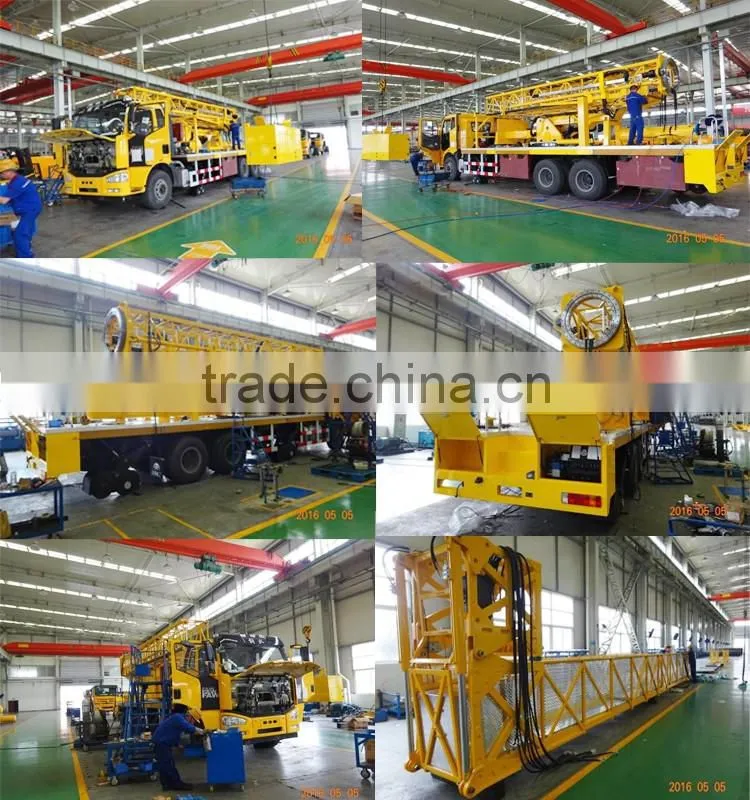

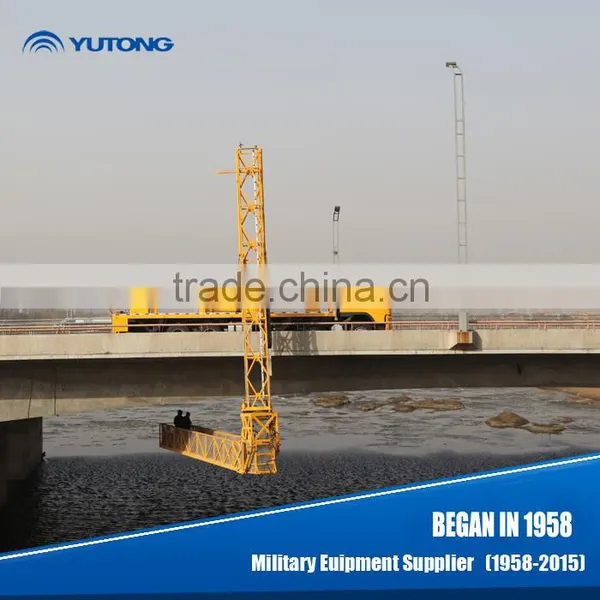

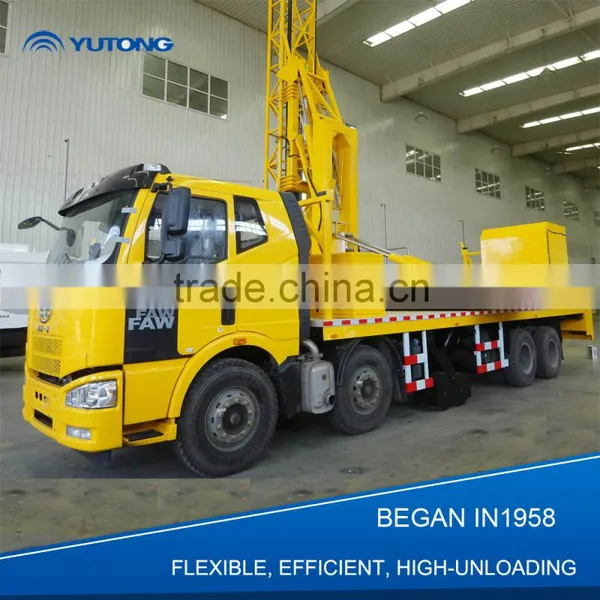

Hot Sale Working range 21m Bridge Inspection Truck
Main Technical Parameters
Vehicle model |
YTZ5310JQJ21 |
Chassis model |
CA1313P7K1L11T4E |
Chassis manufacturer |
China FAW Group Corporation |
Engine model |
FAW BF6M1013-28E3 |
Engine power (kw/Ps) |
206/280 |
Wheelbase (mm) |
1900+4500+1350 |
Rear axle |
13T class double rear axle |
Tire |
11.00R20 Steel wire tire |
Horizontal operating range under the bridge (mm) |
11800~21000 |
Working platform's maximum dimension of getting off the bridge (mm) |
8300 |
Rated load/remote load of working platform (kg) |
600/300 |
Swing angle of working platform under the bridge (°) |
180 |
Distance of crossing the sidewalk (mm) |
2100~2500 |
Height of crossing the guardrail (mm) |
2200 |
Structural type of working platform |
Trussed type |
Main power of working device |
Take the force from chassis through power take-off |
Standby power of working device |
Gasoline engine unit |
Drive type of self-propelled device |
Hydraulic drive |
Self-propelled speed (m/min) |
≤12 |
Operation method |
Manual, electric control |
Communication mode |
Wired and wireless intercom system |
Monitoring mode |
Wired monitoring system |
Performance characteristics
|
| 1.The material of trusswork adopts high-strength rectangular tube imported from Germany. |
2.The complete set of software and hardware products of electrical control system uses the products of Italy 3B6 Company. All the main components of hydraulic system adopt the products produced by Germany HAVE, Italy RR, OilControl, Denmark Danfoss and other international well-known manufacturers. |
3.The bridge-inspection truck has taken a five-day reliability test. Its standby power is imported from Honda. |
| 4.The key positions have three limit switches, including mechanical limit switch, hydraulic limit switch and electrical limit switch, and they can be interlocked when the operator gets on and off the bridge-inspection truck e. |
| 5.The automatic oil filling module which is independently developed by Yutong ensures the security of the vehicle’s hydraulic system. Operator can know the operating conditions in time through monitoring system. In order to prevent dangerous working conditions caused by strong wind . |
6.The bridge-inspection truck is equipped with wind speed monitor. |
7.Standard large-power generator provides independent power for the detection and construction under the bridge. The self-propelled capacity is strong during operation. |
8.The bridge-inspection vehicle can be unfolded directly on the ground, without getting on the bridge, so it facilities the routine maintenance. |
9.The passageway of working platform adopts non-barrier design. |
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
