High-pressure Water Circuit Road Cleaning Truck
The high-pressure water circuit of the road washer adopts the pneumatic actuator to control the high-pressure ball valve switch, and the auxiliary air tank at the chassis is used for air supply, which is environmental protection and energy saving and at the same time it is able to avoid secondary pollution due to oil leakage by using the hydraulic cylinder control switch.

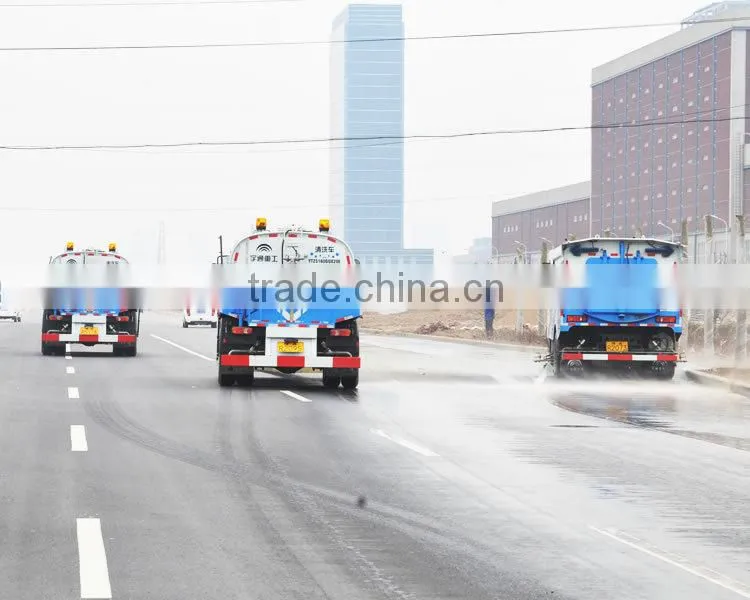

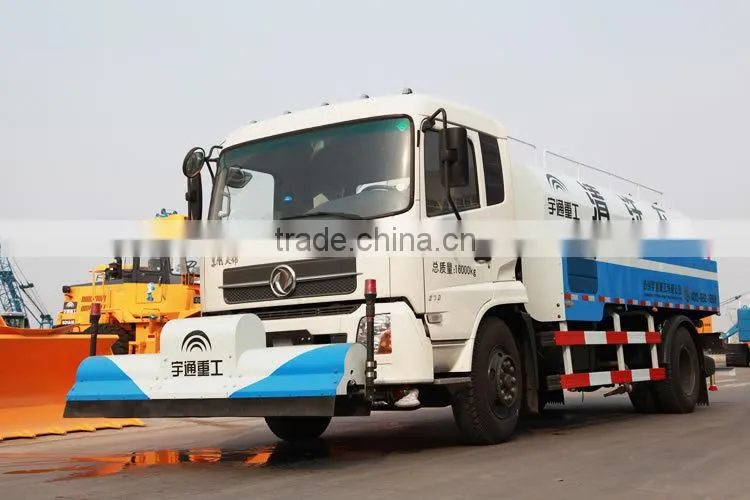

Picture of cleaning truck
Parameter Technical
Item |
YTZ5250GQX20E/F |
|
Chassis model |
DFL1250A8/DFL1250A11 |
|
Engine type |
ISDe245 30/ ISDe245 40 |
|
Engine power(kW) |
180 |
|
Emission standard |
State 3/ state 5 |
|
Dimension(mm) |
10930X2490X3030 |
|
Wheel base(mm) |
4350+1300 |
|
Curb weight(kg) |
11600 |
|
Overall weight(kg) |
25000 |
|
Dimension of the tank(mm) |
5500X2330X1440 |
|
Max. speed(km/h) |
90 |
|
Washing width(m) |
2.5-3.5 |
(optional) |
Washing speed(km/h) |
3-20 |
|
Max. water pressure(MPa) |
13 |
|
Water volume(L/min) |
153 |
|
Rated volume of the tank(L) |
18000 |
|
Spraying lift(m) |
90 |
|
Spraying width(m) |
≥24 |
|
Water volume(L) |
400-800 |
|
Water range(m) |
≥36 |
|
Item |
YTZ5250GQX20E/F |
|
Chassis model |
DFL1250A8/DFL1250A11 |
|
Engine type |
ISDe245 30/ ISDe245 40 |
|
Engine power(kW) |
180 |
|
Emission standard |
State 3/ state 5 |
|
Dimension(mm) |
10930X2490X3030 |
|
Wheel base(mm) |
4350+1300 |
|
Curb weight(kg) |
11600 |
|
Overall weight(kg) |
25000 |
|
Dimension of the tank(mm) |
5500X2330X1440 |
|
Max. speed(km/h) |
90 |
|
Washing width(m) |
2.5-3.5 |
(optional) |
Washing speed(km/h) |
3-20 |
|
Max. water pressure(MPa) |
13 |
|
Water volume(L/min) |
153 |
|
Rated volume of the tank(L) |
18000 |
|
Spraying lift(m) |
90 |
|
Spraying width(m) |
≥24 |
|
Water volume(L) |
400-800 |
|
Water range(m) |
≥36 |
|
Working of cleaning truck
The high-pressure water circuit of the road washer adopts the pneumatic actuator to control the high-pressure ball valve switch, and the auxiliary air tank at the chassis is used for air supply, which is environmental protection and energy saving and at the same time it is able to avoid secondary pollution due to oil leakage by using the hydraulic cylinder control switch.
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
