Home > Transportation > Specialized Vehicle > Garbage Truck > 4x2 8 Ton Compression Refuse Collector Truck

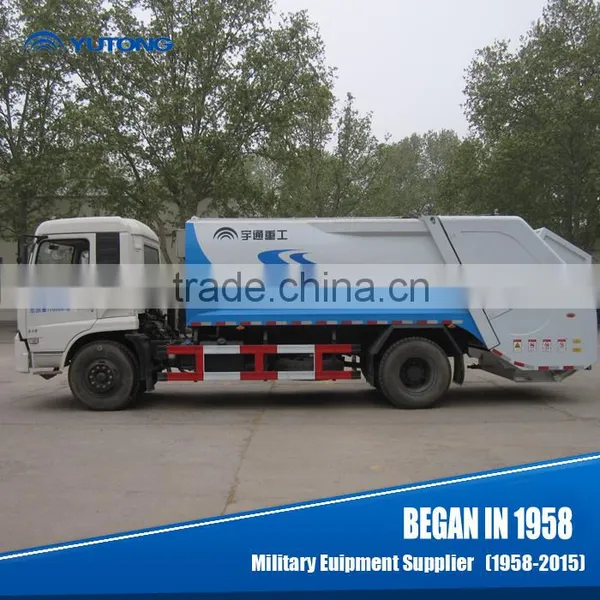

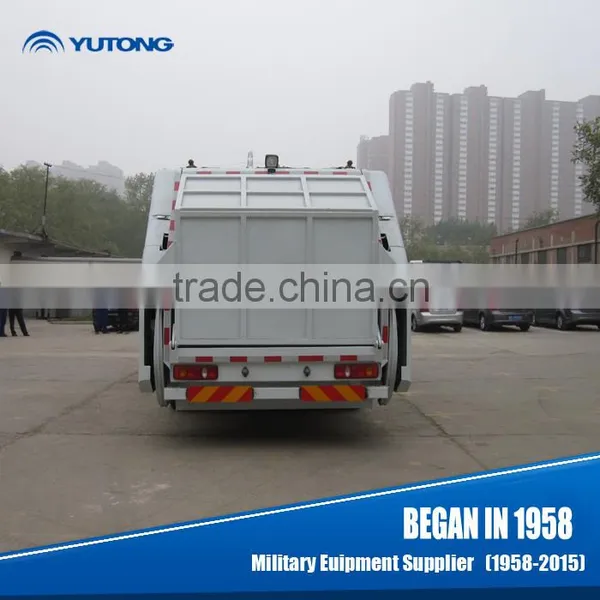

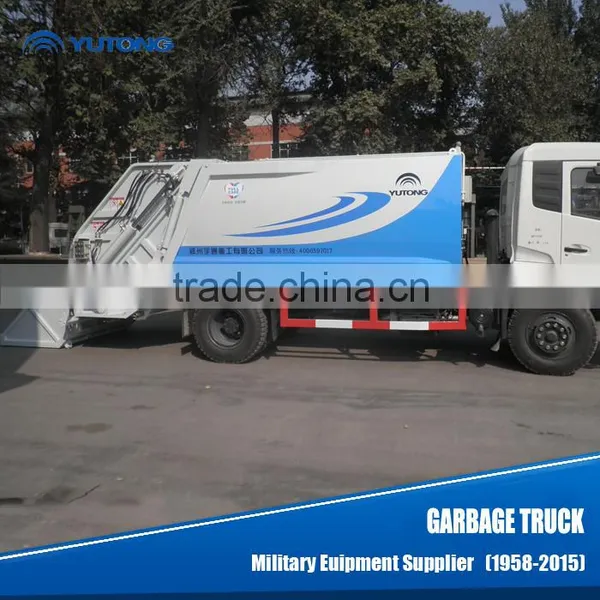

4x2 8 Ton Compression Refuse Collector Truck
US$ 60,250 - 91,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Recycling
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Sale 3.2m Sweeping Width Street CleanersUS$ 41,250 - 64,300MOQ: 1 Unit -
China Hot Sale 17 m3 Garbage Collector TruckUS$ 31,115 - 31,500MOQ: 1 Piece
-
China Military Quality New Landfill Compactor For SaleUS$ 70,000 - 101,000MOQ: 1 Unit
-
2016 China Produce Sprinkler Truck For SaleUS$ 80,010 - 150,020MOQ: 1 Set
-
2016 YUTONG New Design 4x2 Road Sweeper For SaleUS$ 50,000 - 82,820MOQ: 1 Set
Condition
New
Drive Wheel
4x2
Type
Recycling
Transmission Type
Manual
Emission Standard
Euro 4
Volume
3001 - 6000L
Fuel Type
Diesel
Engine Capacity
6700
Size
8690(8710,8855)x2480x2930
Gross Vehicle Weight
16000
Place of Origin
Henan, China
Brand Name
YUTONG
Model Number
YTZ5160ZYS20F
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
4x2 8 Ton Compression Refuse Collector Truck
Product Description
Main Technical Parameters
Product model |
YTZ5160ZYS20F |
|
Chassis model |
DFL1160BX4 |
|
Chassis manufacturer |
Dongfeng Commercial Vehicle Co., Ltd. |
|
Overall dimension of complete vehicle (mm) |
8690(8710,8855)×2480×2930 |
|
Wheelbase (mm) |
4500 |
|
Wheel track of front wheel (mm) |
1880 |
|
Wheel track of rear wheel (mm) |
1860 |
|
Kerb mass (kg) |
10150,10550,10450 |
|
Rated load (Kg) |
5655,5255,5355 |
|
Gross mass (kg) |
16000 |
|
Maximum vehicle speed (km/h) |
90 |
|
Maximum gradeability (%) |
20 |
|
Maximum turning diameter (m) |
19 |
|
Minimum ground clearance (mm) |
250 |
|
Approach angle (°) |
20 |
|
Departure angle (°) |
10 |
|
Dustbin volume (m3) |
12.6 |
|
Volume of precompressor (m3) |
1.9 |
|
Compression cycle time (s) |
30 |
|
Garbage dumping time (s) |
40 |
|
Compression density (t/m3) |
0.6-0.8 |
|
Product model |
YTZ5160ZYS20F |
|
Chassis model |
DFL1160BX4 |
|
Chassis manufacturer |
Dongfeng Commercial Vehicle Co., Ltd. |
|
Engine model |
ISDe210 40 |
|
Emission |
Euro4 |
|
Rated power of engine |
155 kw |
|
Model of gearbox |
DF6S900 |
|
Tyre |
10.00-20 bias tire |
|
Optional Configuration |
Bucket hanging type turnover feeding mechanism Dustpan-type turnover feeding mechani |
Performance
|
1.The complete truck adopts domestic well-known Dongfeng Tianjin chassis that meets National III/National IV emission standard, providing economy, durability, elegant appearance and drive comfort. 2.The chassis power adopts National III/National IV engine produced by Cummins or Guangxi Yuchai, which has powerful power and high reliability and can meet the needs of different users. 3.The energy-efficient engine, with low fuel consumption and low noise, is economical. 4.The carriage body adopts the design technology of frameless arc-shaped bin. The arc-shaped side plates increase the rigidity and strength of the carriage body structure and the surface phosphorization and preservative treatment improve the carriage’s corrosion ability. 5. All plates of structural components are made of high strength manganese steel plate, extending the service life of the complete truck radically. 6.The guided sliding blocks of the dozer blade and the sliding plate are made of the high-density and high-intensity ultra-high molecular weight polyethylene materials, providing self-lubricating, anti-acid and alkali, high stiffness and no noise; the sealing strips are made of silicon rubber materials, which are aerotolerant, anti-aging and light resistant and have stable chemical stability. 7.These materials are not afraid of high temperatures and can resist cold weather. 8.The international leading hydrocylinder-driven locking arm technology has been applied to the precompressor locking |
|
9.The operation of locking the precompressor is easy and can be completed with one key. 10.The manual, automatic and mechanical control systems are available so that it is easy and reliable to operate, providing low failure rate and easy maintenance. 11.Dumping garbage can be controlled in the cab. The electrical system has been wired concealedly. The waterproof connectors have been used to ensure the safety and reliability of use. 12. The engine is provided with a throttle accelerator so that idle running and accelerated compression and unloading can be achieved in the process of the compression working cycle. 13. All plates of structural components are made of high strength manganese steel plate, extending the service life of the complete truck radically. 14.The hydraulic is characterized by a high degree of integration, easy operation, high performance and high response and so on; All the hydraulic cylinders are equipped with the imported Parker seals. |
Our Services
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
