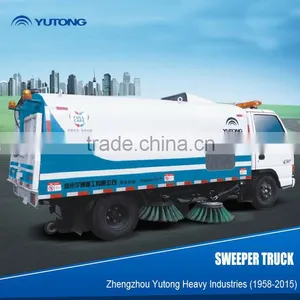

China Hot Sale 3.2m Sweeping Width Street Cleaners

China Hot Sale 3.2m Sweeping Width Street Cleaners photo-1

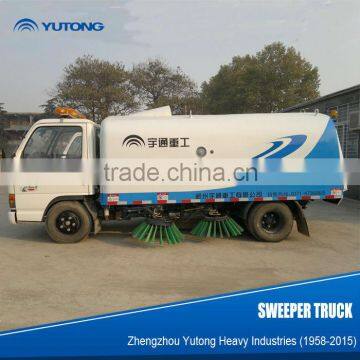

China Hot Sale 3.2m Sweeping Width Street Cleaners photo-2

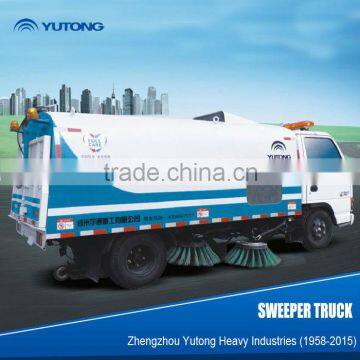

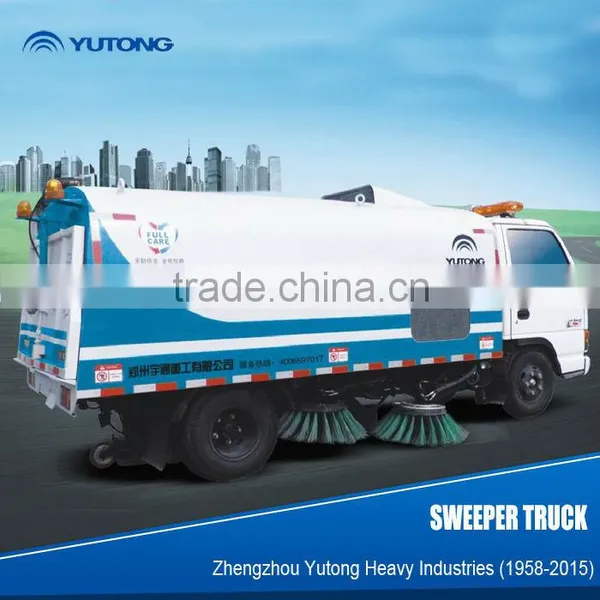

China Hot Sale 3.2m Sweeping Width Street Cleaners photo-3

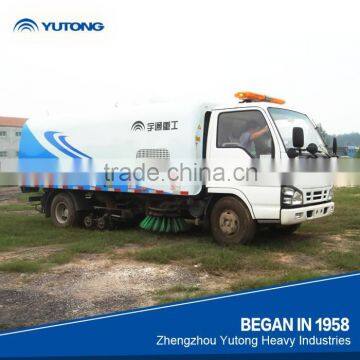

China Hot Sale 3.2m Sweeping Width Street Cleaners photo-4

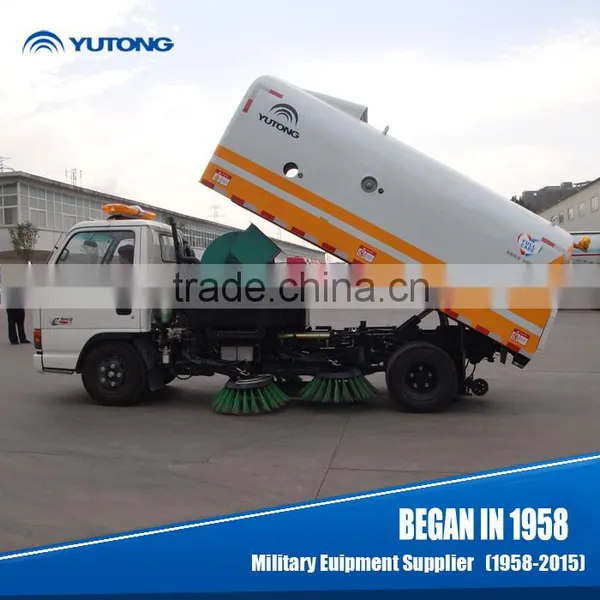

China Hot Sale 3.2m Sweeping Width Street Cleaners photo-5
China Hot Sale 3.2m Sweeping Width Street Cleaners photo-6
US$ 41,250 - 64,300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
YUTONG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name YUTONG
Model Number YTZ5050TSL70E
Dimension(L*W*H) 5650x2000x2350
Weight 4420
Certification ISO
Warranty 12months/2000hours
After-sales Service Provided Engineers available to service machinery overseas

China Hot Sale 3.2m Sweeping width Street Cleaners

Product Description

Main Technical Parameters



Item

Parameter

 China Hot Sale 3.2m Sweeping width Street Cleaners

1. Dimension parameters

Overall dimension (L × W × H)

5650×2000×2350mm

Front suspension

1015 mm

Rear suspension

1275 mm

Angle of approach

24°

Angle of departure

25°

 China Hot Sale 3.2m Sweeping width Street Cleaners

Minimum ground clearance

190 mm

Volume of garbage compartment

5 m3

Volume of water tank

1100 L

2. Mass parameters

Kerb mass (kg)

4420kg

Mass of front axle (no load)

1800kg

 China Hot Sale 3.2m Sweeping width Street Cleaners

Mass of rear axle (no load)

2620kg

Mass of front axle (full load)

1920kg

Mass of rear axle (full load)

3380kg

Max. gross mass

5300 kg (Including two people)

3. Performance Parameters

Sweeping width

2.5-3.2m

 China Hot Sale 3.2m Sweeping width Street Cleaners

Operating speed

3-15km/h

Maximum vehicle speed

98 km/h

Tipping angle for garbage

60°

Maximum cleaning efficiency

96%

Operating fuel-consumption (8Km/h)

6.8L/h

Driving fuel-consumption

10.6L/100km

 China Hot Sale 3.2m Sweeping width Street Cleaners

Chassis model

QL10508HARY (Qingling Brand)

Maximum power

70kW /3400 rpm

Max. torque

206N.m/1700rpm

Model of auxiliary engine

JE493G3-201

Maximum power

57kW /3600 rpm

Performance
China Hot Sale 3.2m Sweeping width Street CleanersChina Hot Sale 3.2m Sweeping width Street Cleaners
China Hot Sale 3.2m Sweeping width Street Cleaners

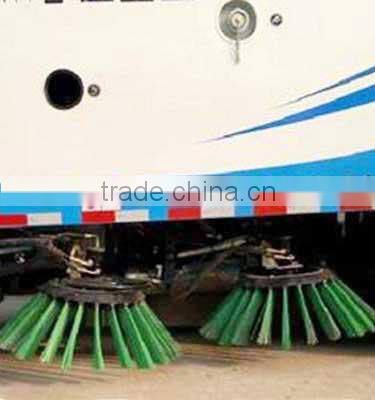

1.The  truck adopts a technological structure: four sweeping brushes are mounted on left and right sides and a wide suction nozzle is mounted in the middle.

2. Sweeping brushes of the street sweeping truck are equipped with automatic avoidance device. The street sweeper truck is featured by centralized operating devices, constant space between suction nozzle and ground, etc.

3. Both of water tank and dustbin are made of 304 stainless steel materials. The water tank, with double stainless steel structure, is firm and durable and has strong corrosion resistance!






















4. A low water level sensing alarm system is equipped within the water tank. It will automatically give an alarm when there is no water in the tank, so as to prevent the water pump from being damaged due to water shortage .

5. The street sweeping truck selects and uses "imported hydraulic block". The hydraulic system is further optimized.

6.As for the heat dissipation of hydraulic oil, water cooling system is equipped, which can fully guarantee the normal operation of the truck in the hot summer .
China Hot Sale 3.2m Sweeping width Street Cleaners

7.The street sweeping truck uses Qingling chassis; the cab is equipped with air conditioner; turbocharged and inter-cooled engine; low fuel consumption, powerful power, good handling, comfortable and luxurious; the cab is wide and bright and has wide field of view!

8. Centralized electrical control box of the street sweeping truck is used to control the truck and it can be controlled by one key in the cab, with high level of automation.

9.A voice alarm device is equipped to accurately broad cast a variety of safety tips and failures; meanwhile, through working camera, optional GPS satellite positioning, reversing radar and other devices, operator can conduct real-time monitoring on the truck
Our Services
China Hot Sale 3.2m Sweeping width Street Cleaners

"12380"Service after sale. We can offer:

1.After receiving the customer mobile, we will help customer solve problem through removing the resources of
Yutong service and reply the customer clearly in one hours;

2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit

about the satisfaction of after sale service;

3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will

have 3 times On-Site Inspection forwardly in warranty period;

8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service

engineer can not leave the on-sit;

0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance,

seamless docking and service in the period of product using.
Company Information
China Hot Sale 3.2m Sweeping width Street Cleaners
China Hot Sale 3.2m Sweeping width Street Cleaners
China Hot Sale 3.2m Sweeping width Street Cleaners
China Hot Sale 3.2m Sweeping width Street Cleaners

Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center.

Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award.

 Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile.

FAQ&Contact Us
  • Can you give us a brief introduction to Yutong Company please?

We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.

  • How about the quality guarantee and after -sale service?

For quality guarate, we give one year guarantee, and with 24hours response principle for better service.

We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.

  • How about the payment terms?

We accept T/T, L/C, D/P, D/A,even L/G.

China Hot Sale 3.2m Sweeping width Street Cleaners
