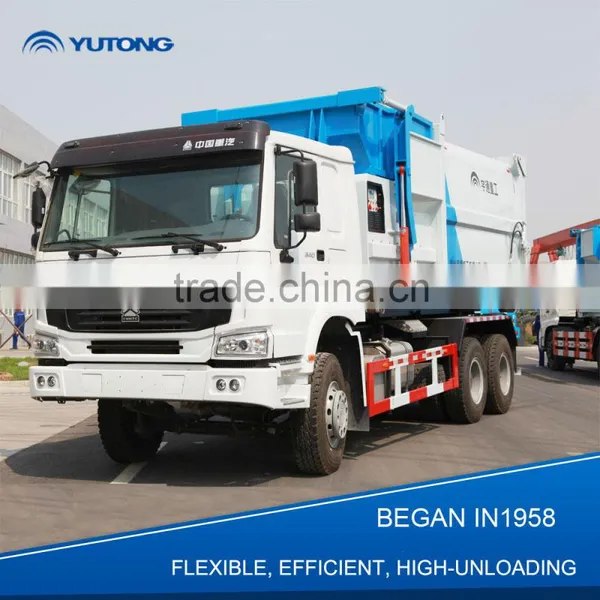

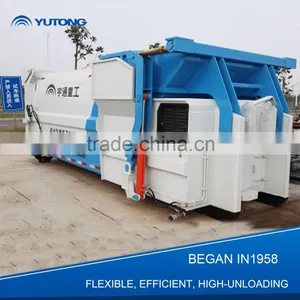

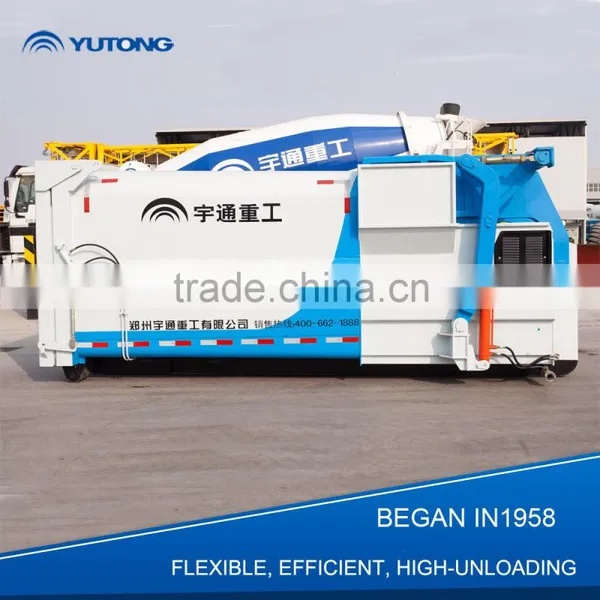

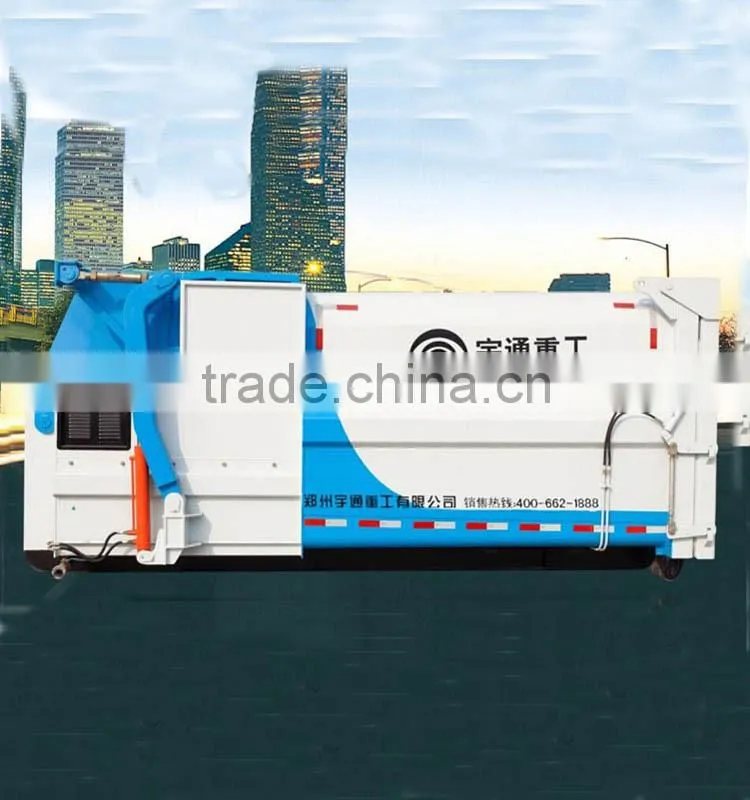

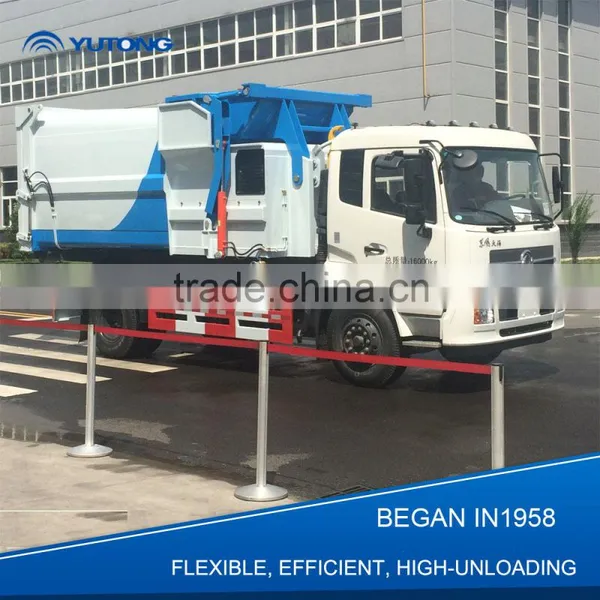

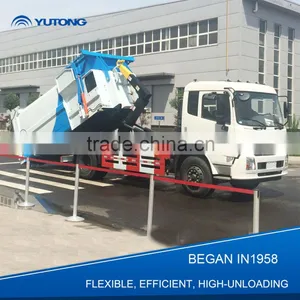

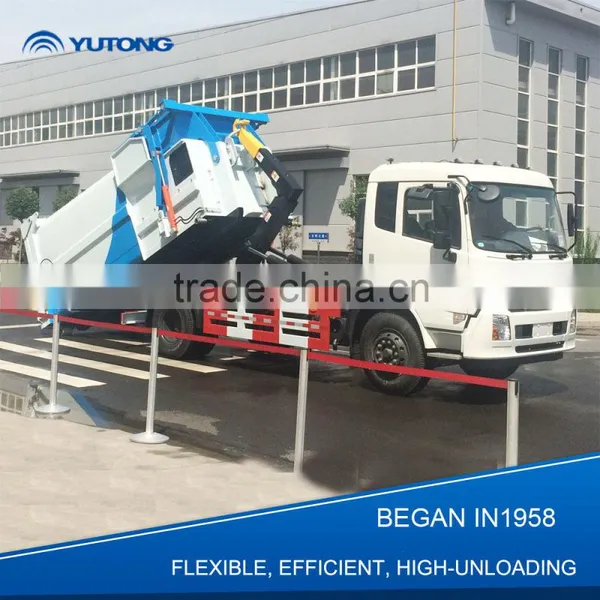

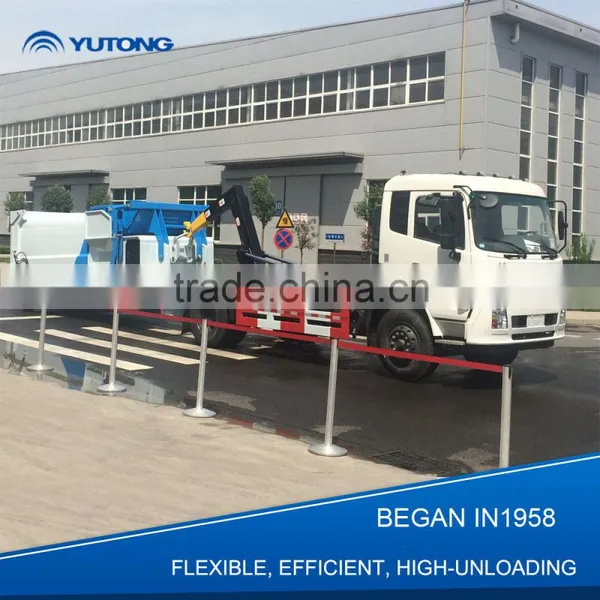

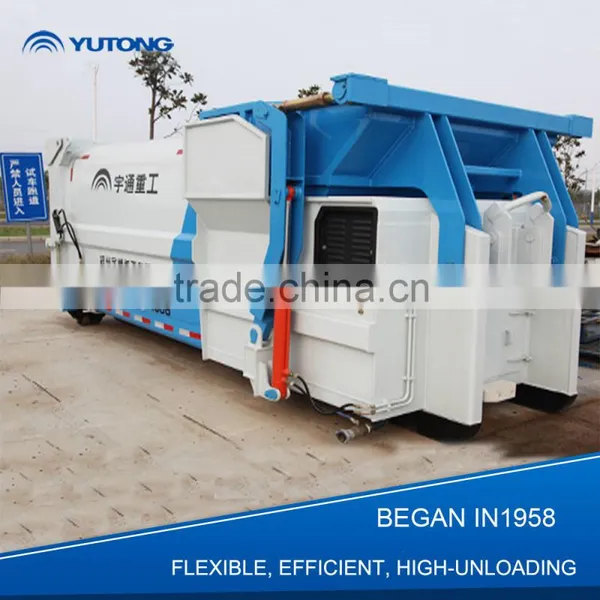

China Hot Sale 17 m3 Garbage Collector Truck
Item |
Parameter |
|
Disposal form |
Compression-type |
|
Compression mode |
Compress horizontally |
|
Disposal amount of garbage |
15 t/h |
|
Volume of feed bin |
≥2.0m3 |
|
Volume of dustbin |
≥17 m3 |
|
Max load |
15 ton |
|
Rated compression force of waste compression mobile station |
≥300 kn |
|
Maximum compression force |
≥350 kn |
|
Cycle time of no-load compression |
≤30 s |
|
Cycle time of feeding mechanism |
≤40 s |
|
Weight of complete machine |
≥6 t |
|
Color |
Optional |
|
Structure size (tipping-bucket is in dumping state) (L × W × H) |
≤6500 mmx2500 mm x2500 mm |
|
Power of rubbish compression mobile station |
380V/50Hz/5.5kW |
|
Model of electric motor |
MZQA132S4A (ABB) |
|
Rated power of electric motor (Kw) |
5.5 |
|
Voltage of electric motor (v) |
380 |
|
High-pressure gear pump |
ALP2-D-20 (Marzocchi) |
|
Rated pressure of system (MPa) |
18 |
|
PLC Module of rubbish compression mobile station |
231-0HC22-0XA8 (Siemens) |
|
PLC CPU of rubbish compression mobile station |
6ES7214-1AD23-0XB8 (Siemens) |
|
Wireless remote controller |
YT4K/DC24V (Shize Technology) |
|
Solenoid directional valve |
SDHI-0632/2 (Atos) |
|
Hydraulic control one-way valve |
HR-012 (Atos) |
|
1. Rear door adopts hydraulic locking device (four points) and polymer sealing tape providing reliable sealing. 2.As for feeding, front-mounted tipping-bucket is equipped. The feeding inlet adopts real-time sealing, which effectively prevent the proliferation of garbage odors and dust. 3.Due to streamlined design, large arc-shaped rear door and large rounded design of dustbin, the complete machine owns attractive appearance.. 4.The complete rubbish compression mobile station adopts grit blasting first and then applies primer and topcoat, so the color is vivid and lasting. 5.Large crushing force: the cooperation between compression head with W-type design and tooth plate at the garbage entrance will effectively prevent the garbage from rebounding during the compression and can break bulky garbage. |
|
6.Simplex hydraulic pump greatly reduces hydraulic system warm-up; exhaust fan installed at the hydraulic tank and ventilation louver are used to enhance the air circulation and further reduce the oil temperature, so as to ensure the hydraulic system can keep stable and reliable under the continuous working state. 7.The machine takes electric power which is economic and pollution free as its power source. The power of the electric motor of the complete machine is only 5.5 kw, providing low operating cost. 8.Large crushing force: the cooperation between compression head with W-type design and tooth plate at the garbage entrance will effectively prevent the garbage from rebounding during the compression and can break bulky garbage. |
|
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
