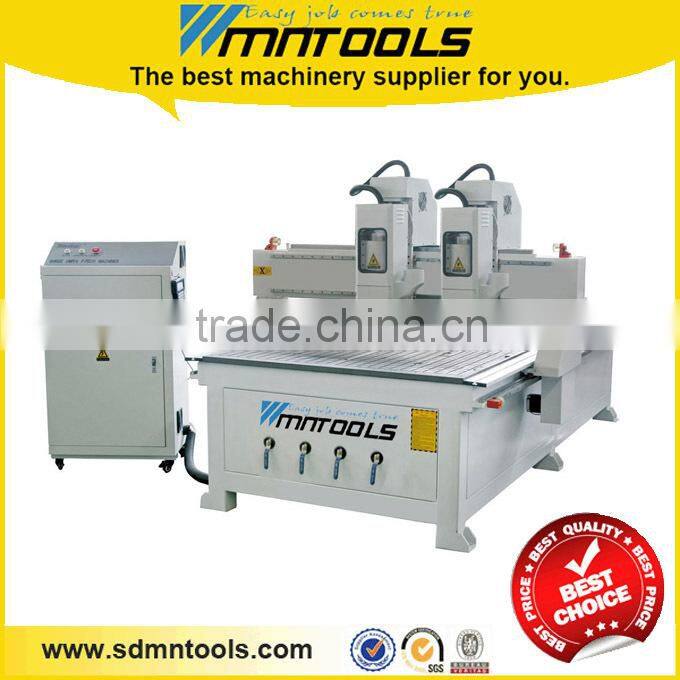

Help CenterCNC Router , Kitchen Cabinet , Door Production
Related Products
Specifications
High production rate;High production quality;
Heavy duty;
Wood cnc router
Features:
1, lengthen the X and Y axis, can be used for large scale material processing. Adopted international leading parts, cost performance is high.
2, They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity. Well adapted to engrave and cut on Density board, solid wood panel, also engrave 3D archaistic furniture.
3, vacuum table we allow for both Mechanical and Vacuum fixturing. What does this mean? If you are processing sheets of material such as MDF, Melamine, Plastic, Foam or any other sheet like material, vacuum hold-down is an excellent solution. If you are processing small or irregular shaped products, heavy material, then you may want to utilize mechanical clamps.
4, It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly. So it is guaranteed not to out of shape and shake when it works for a long time.
Technical parameter:
1 |
model |
MTCNC-1325EVD |
2 |
X,Y working area |
1300x2500mm |
3 |
Z Max working area |
200mm |
4 |
Table size |
1400x3000mm |
5 |
Working delicacy |
0.03mm |
6 |
X,Y,Z repositioning Positioning Accuracy |
0.03mm |
7 |
Frame |
groove steel structure |
8 |
X,Y,Z Structure |
X,Y axis gear transmission,Z axis ball screw |
9 |
Driver |
Leadshine M860 |
10 |
Inverter |
Fuling inverter |
11 |
Spindle Power Motor |
3.0KW x 2pcs water cooling spindle.changsheng brand |
12 |
Working Voltage |
AC380v/50HZ |
13 |
Power (not include the spindle) |
1500W |
14 |
Spindle Speed |
0-24000RPM |
15 |
Drive Motors |
Leadshine Stepper system |
16 |
Command Language |
G cord*.u00*.mmg*plt |
17 |
Operating System |
NC Studio controlling system(computer control system) or DSP |
18 |
Running Environment |
Temperature: 5 ~ 45 |
19 |
Surrounding for software |
Windows98/2000/xp |
20 |
Cutters |
A sets |
21 |
Table |
Vacuum table (without vacuum pump) |
Field of application:
Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould etc.
Applicable material: wood, acrylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
Major application fields: furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft etc.
