Help CenterCNC Router , Kitchen Cabinet , Door Production
Related Products
Specifications
High production rate;High production quality;
Heavy duty;

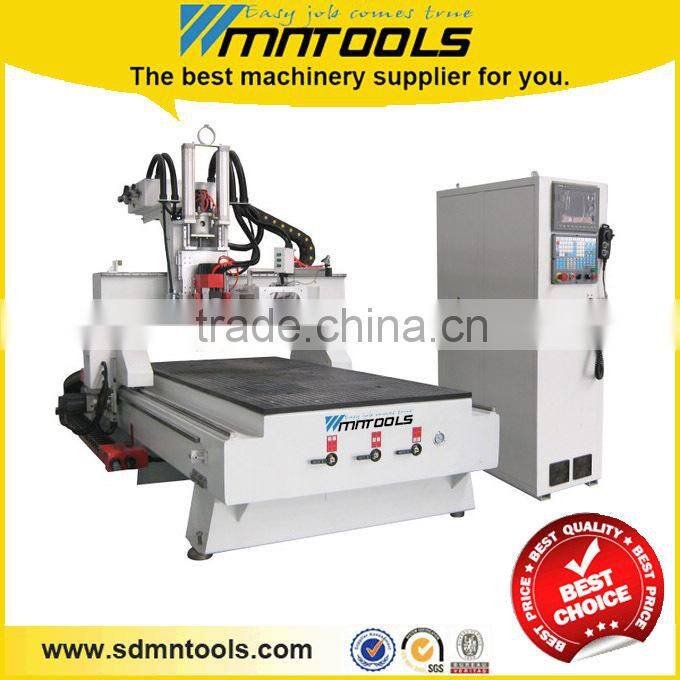

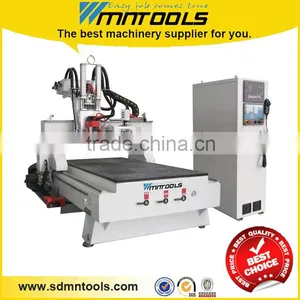

Wood cnc router
Machine Features:
-Working table:1300mm(X axis)x2500mm(Y axis)
- Taiwan Syntec Operating System
- Yaskawa Servo Motor
- Taiwan Delta Inverter
- Taiwan HIWIN Linear Rail
-9.0KW HSD Air Cooling ATC spindle
- Drum Type ATC. Tool Magazine Capacity-8.
- Tool Changing Time-8 seconds
- Designed for Complex Machining.
Application:
Ideal for processing solid wood door's decorative line, membrane tectorial door, membrane tectorial cabinet door, bathroom's panel wood cabinet, etc.
Specifications
Model | MTCNC-1325TCD | MTCNC-1530TCD | |
Working Size | 1300*2500*200 mm | 1500*3000*200 mm | |
Table Size | 1300*2500mm | 1500*3000mm | |
Structure | Vacuum Table | ||
Transmission | X,Y-Rack Pinion Z-Ball Screw from Germany | ||
Speed | MAX Travelling Speed: 50000mm/min | ||
MAX Working Speed: 20000mm/min | |||
Spindle Power | 9.0 KW HSD Air Cooling Spindle | ||
Spindle Speed | 24000rpm/min | ||
Driving System | YASKAWA Servo Motor | ||
Working Voltage | AC380V/3PH/50Hz | ||
Operating System | Taiwan Syntec | ||
Net Weight | 1800 KG | 2200 KG | |
Gross Weight | 2100 KG | 2500 KG | |
Option | Table Structure: T-Slot and Vacuum Table | ||
Operating System: OSAI | |||
Boring Unit: 9 Vertical + 2 Horizontal +2 Saws | |||
Dust Collecting System | |||
Germany Becker Vacuum Pump | |||
Can produce any size CNC Router for customers special requirement | |||
Note: Any changes of technical parameters without notice | |||
