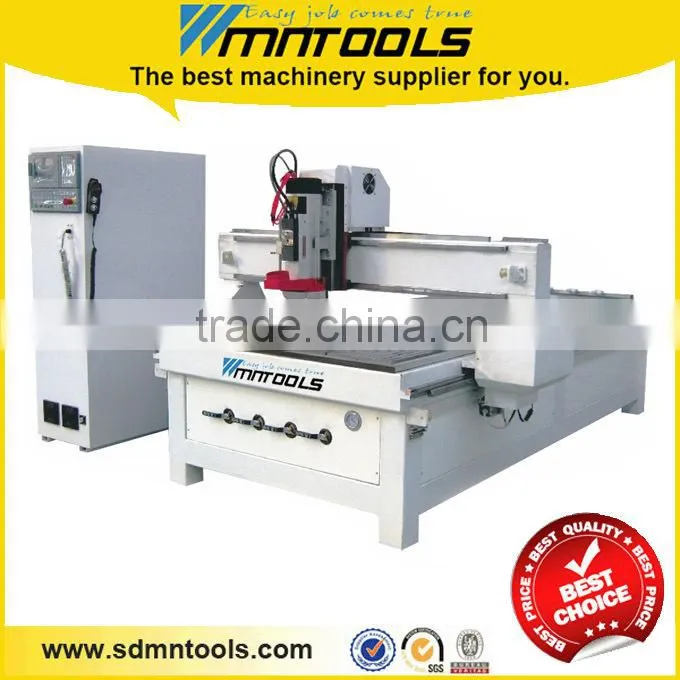

Help CenterCNC Router , Kitchen Cabinet , Door Production
Related Products
Specifications
High production rate;High production quality;
Heavy duty;
Wood cnc router
Auto Tool Changer cnc router
Feathers of auto tool change machine:
1) Linear Automatic Tool Change
2) 9.0KW HSD Spindle from Italy
3) High-performanceYASKAWA Servo system from Japan
4) 30 mm Linear Guide from Taiwan
5) Oil-injection system makes the maintenance more convenient.
6) Syntec controller system from Taiwan
Application:
1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
Model NO. MTCNC-1325TCL
Parameters:
NO. |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
1300X2500X200mm |
2 |
Table Size |
1440X3040mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Welded Strucutre |
6 |
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
7 |
Z Structure |
Ball Screw, Shaft Linear Bearings |
8 |
Max.Consume power |
20KW |
9 |
Max.Speed |
0-60000mm/min |
10 |
Max.Working Speed |
0-25000mm/min |
11 |
Spindle Power Motor |
9KW HSD Spindle ATC |
12 |
Spindle Speed |
0-24000RPM |
13 |
Working Mode |
Servo system |
14 |
Working Voltage |
AC380V/50/60Hz , 3PH |
15 |
Command |
G Code, *uoo, *mmg, *plt |
16 |
Operating System |
SYNTEC System |
17 |
Interface |
Internet line |
18 |
Flash Memory |
512M |
19 |
Collet |
ER32 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3 software, Wentai software,Artcam software |
22 |
Running circumstance |
Temperature: 0°C~45°C, |
23 |
Packing Size |
4000x2150x2200 mm |
24 |
Net Weight |
2000KG |
25 |
Gross Weight |
2300KG |
