Specifications
Heavy duty;High production speed;
High production quality

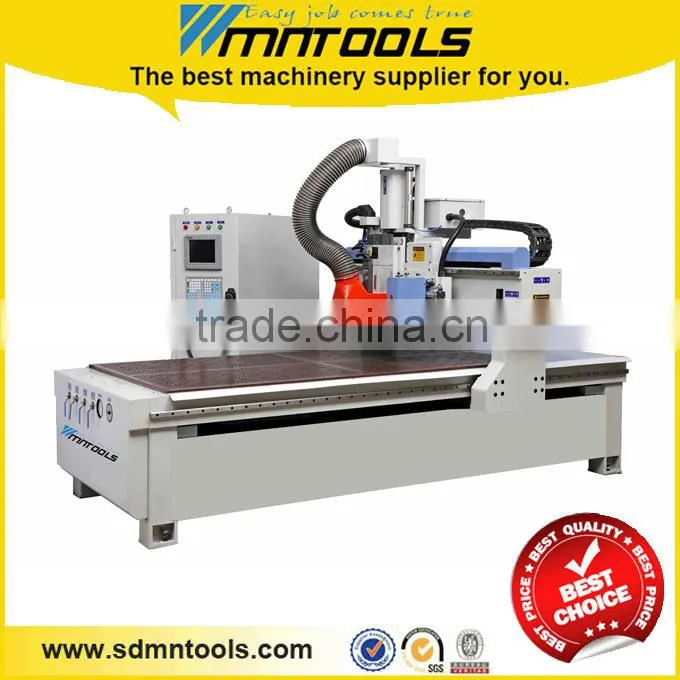

CNC router
Feature:
- The whole steel structure of the machine is seamless welded, rigid and isn't easy to be distorted, so the machine could satisfy the processing precision demands with the stable machine body and the firm work table.
- Both the speed and the precision of the machine movements are guaranteed with the simple security operation, the advanced document pretreatment, and the precise three - dimensional curve forecast.
- With the flexible structural design, the machine can do drilling, carving, hollowing, milling and etc. Customers may choose different mills or drills, thus the machine would work with different tools in a much higher efficiency.
- The work table size can be OEM produced as per customer's demand.
Model No: MTCNC-1325PRO
Parameter
NO. |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
1200X2400X200mm |
2 |
Table Size |
1220x2440x200mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.05/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
<0.001mm |
5 |
Table Surface |
Vacuum suction table |
6 |
Frame |
Cast Steel |
7 |
X, Z Structure |
Ball Screw |
8 |
Y Structure |
Hiwin Rail Linear Bearings and rack & pinion |
9 |
Max.Power Consumption(Without spindle) |
2.0Kw |
10 |
Max.Rapid Travel Rate |
60m/min |
11 |
Max. working speed |
20m/ min |
12 |
Spindle Power Motor |
8.0Kw |
13 |
Spindle Speed |
6000-24000RPM |
14 |
Drive Motors |
Servo system |
15 |
Working Voltage |
AC380V/50Hz |
16 |
Command Language |
G code,*uoo,*mmg, *plt |
17 |
Operating System |
Windows System |
18 |
Interface |
9 pin |
19 |
Flash Memory |
512M |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.001mm |
22 |
Software Compatability |
Type3 software, Ucancam software (Option:Artcam software) |
23 |
Running Environment |
Temperature: 0°C~45°C Relative humidity: 30%~75% |
24 |
Packing Size |
|
25 |
Net Weight |
2500KG |
26 |
Gross Weight |
2600KG |
All parameters above subject to change without prior notice | ||
