3000RPM Bending Machine Servo Motor and Servo Control Devices

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai/Shenzhen/Wuhan
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China		Brand Name	Maxsine
Model Number	110MSL04030F&EP3-GL120		Motor Type	AC Motor

Product Description

Specifications

1'with USB communication interfaces
2'sustaining Modbus agreement
3'with simple PLC function
4'strong overload capacity

Production Description of Servo Motor and Servo Driver

All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm
and power from 50w to 7.2kw.

Introduction of Servo Driver 110MSL04030F

Name	servo motor
Model	110MSL04030F
Rated Power	1200w
Rated Line Voltage	3 phase 220VAC
Rated Line Current	5.0A
Rated Speed	3000rpm
Rated Torque	4.0Nm
Peak Torque	12.0Nm
Rotor Inertia	0.54*10^-3 kg·m²
Lines of Encoder	2500ppr
Motor Insulation Class	ClassB(130°C)
Operating Environment	Temperature: -20°C ~ +50°C; humidity: relative humidity (RH)<90% (not including condensing condition)

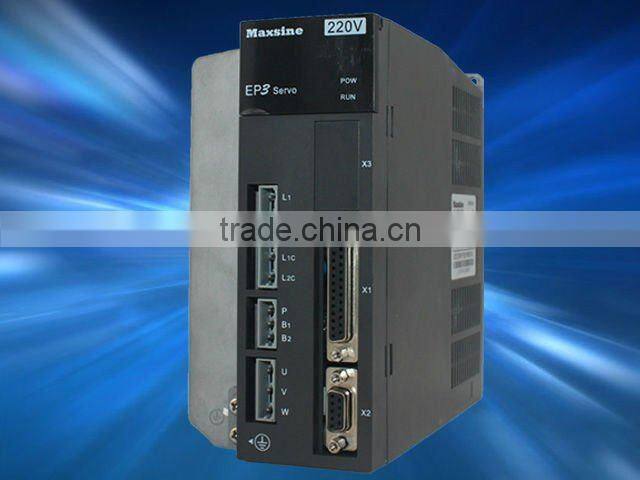

Introduction of EP3-GL120

Introduction of EP3 Size

Introduction of EP3 Specification

Model		GL 120
Rated output Power(kW)		1.5
Rated output current(A)		12.0
Input power	Main supply	3-phase 220VAC -15%~+10% 50/60Hz
	Control supply	1-phase 220VAC-15%~+10% 50/60Hz
Environment	Temperature	Working:0°C~ 40°C Storing:-40°C~ 50°C
	Humidity	Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing )
	Atmospheric Pressure	86kPa ~ 106 kPa
Control Mode		vector control
Regenerative Braking		Built-in/built-out
Feedback Mode		2500 line incremental encoder or 17 bit absolute encoder
Control Mode		Position, speed, torque, position/ speed,speed/torque,position/torque
Digital input		5 Programmable input terminals(Optical Isolation)
Digital Output		3 Programmable input terminals(Optical Isolation)
Position	Input Frequency	differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
	instruction mode	Pulse+Signal,CCW Pulse/CW Pulse, Two-phase A/ orthogonal Pulse
	Electronic Gear Ratio	1 ~ 32767/1 ~ 32767
Speed	Simulation command input	-10V ~ +10V,input impedance10kΩ
	Instructions Acceleration And Deceleration	Parameters set
	Instructions source	analog,Internal speed instructions
Torque	Simulation command input	-10V ~ +10V,input impedance10kΩ
	Speed restriction	Parameters set
	Instructions source	analog,Internal torque instructions
Special Functions		ZRN ,Gain switch,mechanical resonance wave trap, sustaining Modbus agreement
Surveillance Function		Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function		Overspeed,Overvoltage,Overcurrent,Overload,Abnormal brake,Abnormal Encoder,out of tolerance etc.
Feature	Speed Frequency Response	≥300Hz
	Speed Fluctuation Rate	<±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
	Speed Ratio	3.513889

Details show

Application

CNC industry
Textile industry
Robot industry
Paper making industry
Industrial spring machine
Printing and packaging industry
Mechanical spring machine industry

Shipping

EXPRESS(sample): around 5-7 working days to arrive
EXPRESS: around 3 weeks to arrive
Ocean carriage: usually less than 2 months

Payment

Wire Transfer
Western Union
Alibaba B2B Credit Card

Certification

Packing

After inspection the goods are packed in plastic bags and then carefully packed in cartons.
