Home > Electrical & Electronics > Variable-Frequency Drive > 3-phase 220V ac Servo Motor Controller

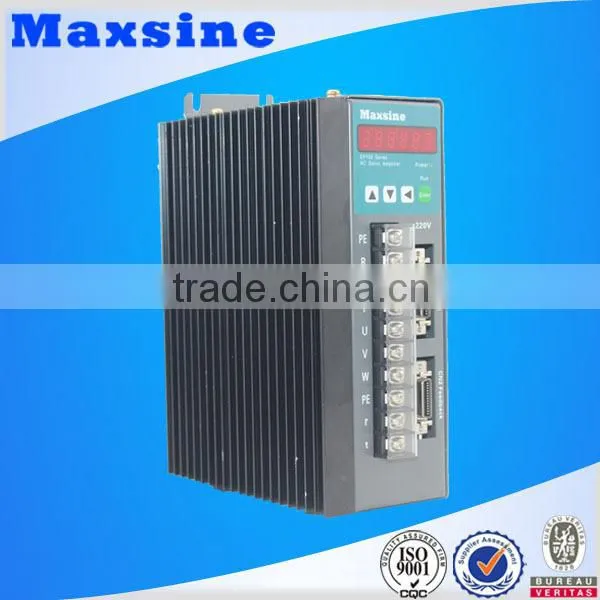

3-phase 220V ac Servo Motor Controller

Name: 3-phase 220V ac Servo Motor Controller
Brand: Maxsine
SKU: 118969575
Availability: InStock

3-phase 220V ac Servo Motor Controller thumbnail-1

3-phase 220V ac Servo Motor Controller thumbnail-2

3-phase 220V ac Servo Motor Controller thumbnail-3

3-phase 220V ac Servo Motor Controller photo-1

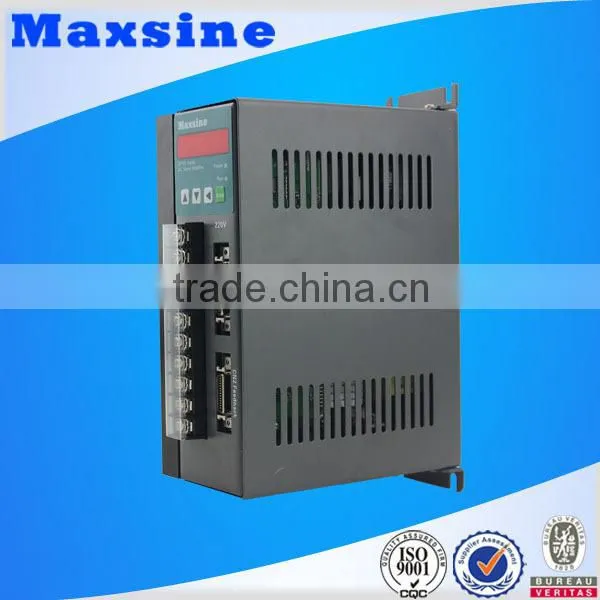

3-phase 220V ac Servo Motor Controller photo-2

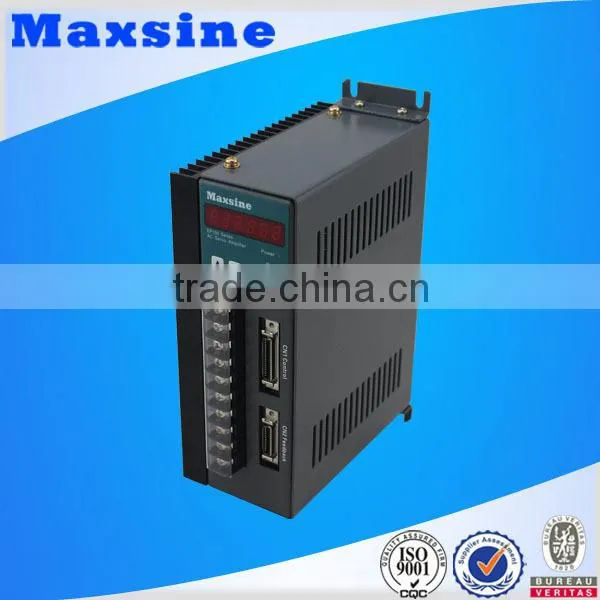

3-phase 220V ac Servo Motor Controller photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

Maxsine

Model Number:

EP100-3A

Contact Supplier Request Quote Chat Now

Wuhan Maxsine Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name Maxsine

Model Number EP100-3A

Motor Type AC Motor

Specifications

1. servo driver distributors
2. 3 phase 220V 50 or 60Hz
3. pulse control
4. analog control
5. Passing QC

Production Description

with IPM and DSP
1.4kw
Pulse or Torque or Speed control
Protection Level: IP20

Name		Servo Driver
Model		EP100-3A
Input Power		3-phase AC220V -15% ~ +10% 50/60Hz
Environment	Temperature	Working:0°C~ 40°C Storing:-40°C ~50°C
	Humidity	40% ~80%(non condensing ) Storing:under 93%(non condensing )
	Atmospheric Pressure	86kPa ~ 106 kPa
Protection Level		IP20
Regenerative Braking		Built-in
Control Mode		Position,Speed, Torque
Digital Input		1.SRV-ON 2.A-CLR 3.CCW Drive Inhibition 4.CW Drive Inhibition 5.Deviation CL/Speed Selection 1/ ZEROSPD 6.Instructions Pulse Inhibition/Speed Selection2 7.CCW Torque Limitation 8.CW Torque Limitation
Digital Output		1.Servo Ready Output 2.Servo Alarm Output 3.Finish Orientation Output/Reach Speed Output 4.Mechanical Brake Output
Position	Input Mode	Pulse+Signal, CCW Pulse/CW Pulse,Two-phase A/ orthogonal Pulse
	Electronic Gear Ratio	1~32767/1~32767
	Feedback Pulse	2500 Line/turn
Torque	Analog Instructions Input	-10V ~ +10V,Input Impedance10kΩ
	Rate Limitation	Parameter Setting
	Instructions Source	Analog,Internal Torque Instructions
Speed		4 kinds Internal Speed/Analog Control
Acceleration and Deceleration Function		Parameter Setting 1~10000ms
Surveillance Function		Revolving Speed,Current Position,Instructions Pulse Accumulation,Positional Deviation,Motor Torque,Motor Current,Straight-line Speed,Rotor Absolute Position,Instructions Pulse Frequency,Running State,Input and Output Terminal Signals etc.
Protection Function		Overspeed,Overvoltage, Undervoltage,Overcurrent,Overload,Abnormal Brake of main Power,Abnormal Encoder,Abnormal Control Power Supply,out of tolerance etc.
Feature	Speed Frequency Response	≥250Hz
	Speed Fluctuation Rate	<±0.03%(Load 0 ~ 100%); <±0.02%(Power -15% +10%)(parameters agree with rated speed)
	Speed Ratio	3.513888889

Details show

Application

1. CNC industry

2. Textile industry

3. Printing and packaging industry

4. Robot industry

5. Mechanical spring machine industry

6. Paper making industry

7. Industrial spring machine

Shipping

1. EXPRESS(sample): around 5-7 working days to arrive

2. EXPRESS: around 3 weeks to arrive

3. Ocean carriage: usually less than 2 months

Payment

1. Wire Transfer

2. West Union

3. Paypal

Certification

Packing

After inspection the goods are packed in plastic bags and then carefully packed in cartons.

Services

About us

Wuhan Maxsine Electric Co., Ltd.was established in Wuhan in 2004. Alldigital AC Servo Drivers and

Permanent Magnet AC Servo Motors are core products. They have been chosen and approved by more and more customers and been widely used in the numerical control machine tool, textile machinery, packaging machine, printing machine, cutting machine, marking machine, industrial robot and many other industrial automation fields.
