Help CenterVector Control ac Servo Amplifeir With CE Certificate
Related Products
-
Pulse Control ac Servo Amplifier SupplierNegotiableMOQ: 1 Piece -
2500 Watt ac Servo Driver With USB InterfaceNegotiableMOQ: 1 Piece
-
Monophase 0.5kw~5.5kw Servo AmplifierNegotiableMOQ: 1 Piece
-
1.5kw Servo Driver for Cutting MachineNegotiableMOQ: 1 Piece
-
Grinding Machine 220V ac Servo Motor DriverUS$ 267.67 - 283.33MOQ: 10 Pieces
Specifications
1' external brake resistor2' DC Reactor terminals
3' USB communication interfaces
4' 0.5kw~5.5kw 3 phase 220VAC
5' CE, ISO
|
|
1'Introduction of EP1C Specification
| Model | TL05F | TL10F | TL15F | TL25F | TL35F | TL55F | ||
| Input Power | 3-phase AC220V -15% ~ +10% 50/60Hz | |||||||
| Environment | Temperature | Working: 0°C~ 40°C Storing: -40°C~ 50°C | ||||||
| Humidity | Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing ) | |||||||
| Atmospheric Pressure | 86kPa ~ 106 kPa | |||||||
| Protection Level | IP20 | |||||||
| Control Mode | vector control | |||||||
| Regenerative Braking | Built-in/Built-out | |||||||
| Feedback Mode | 2500 line incremental encoder,encoder with fewer lines | |||||||
| Control Mode | Position | |||||||
| Digital input | 5 Programmable input terminals(Optical Isolation) Function:SRVON ,ACLR ,CW Drive inhibition,CCW Drive inhibition,CW Torque inhibition,CCW Torque inhibition,Emergency Stop,Electronic gear selection 1,electronic gear selection2,Position deviation clear,pulse input inhibition | |||||||
| Digital Output | 3 Programmable input terminals(Optical Isolation) Function:SRDY ,alarm,Finish Orientation Output ,Reach Speed ,electro-magnetic brake,Torque restrictions | |||||||
| Signal Output of encoder | Signal Types | A,B,Z Differential output,Z signal open-collector output | ||||||
| Position | Input Frequency | differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps) | ||||||
| instruction mode | Pulse+Signal,CCW Pulse/CW Pulse, orthogonal Pulse | |||||||
| Electronic Gear Ratio | 1 ~ 32767/1 ~ 32767 | |||||||
| Surveillance Function | Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc. | |||||||
| Defensive function | Overspeed,Overvoltage,Overcurrent,Overload,Abnormal of main Power,Abnormal Encoder,out of tolerance etc. | |||||||
| Feature | Speed Frequency Response | ≥300Hz | ||||||
| Speed Fluctuation Rate | <±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%) | |||||||
| Speed Ratio | 1:5000 | |||||||

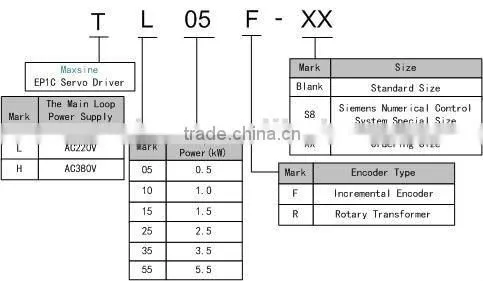

2'Servo driver models
EP1C-TL05F, EP1C-TL10F, EP1C-TL15F, EP1C-TL25F, EP1C-TL35F, EP1C-TL55F
3'Introduction of EP1C Size
4' Application
- CNC industry
- Textile industry
- Robot industry
- Paper making industry
- Industrial spring machine
-
Printing and packaging industry
- Mechanical spring machine industry

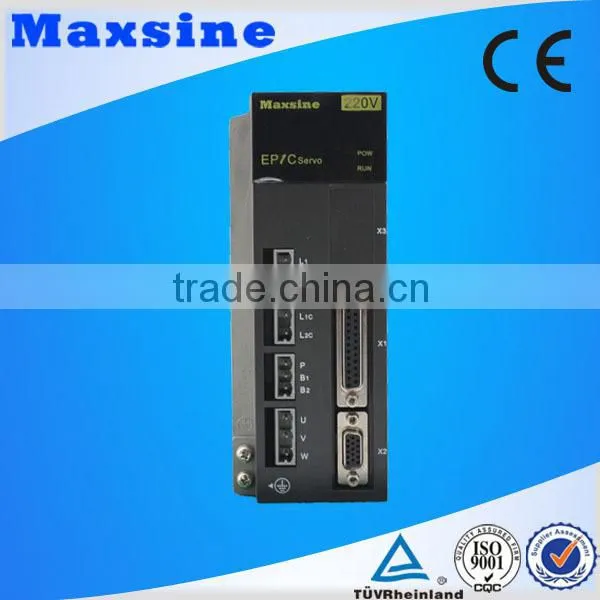

5' Detail show
|
packing:
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
|
|
Shipping:
1. EXPRESS(sample): around 5-7 working days to arrive 2. EXPRESS: around 3 weeks to arrive 3. Ocean carriage: usually less than 2 months |
Wuhan Maxsine Electric Co., Ltd. was established in Wuhan City in 2004. All-digital AC Servo Drivers and Permanent Magnet AC Servo Synchronous Motor are core products. With continuous effort of the staff for nearly 10 years and technical accumulation and innovation of the technical team for more than 20 years, our company has succeeded in holding both technology leading status and the biggest market share in China.
