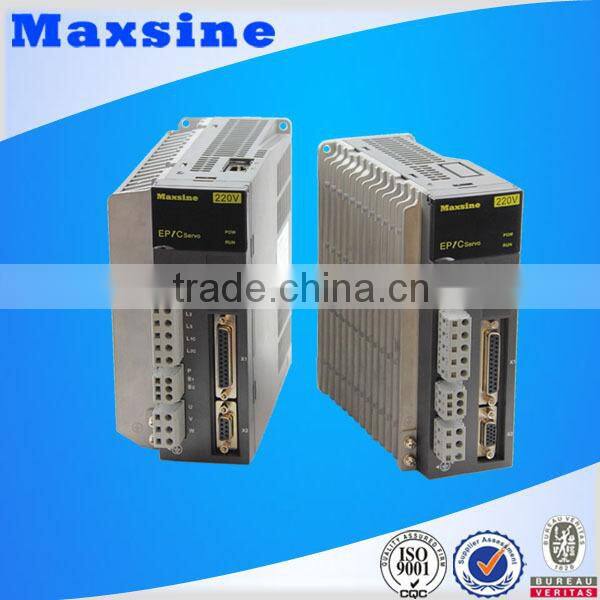

Specifications

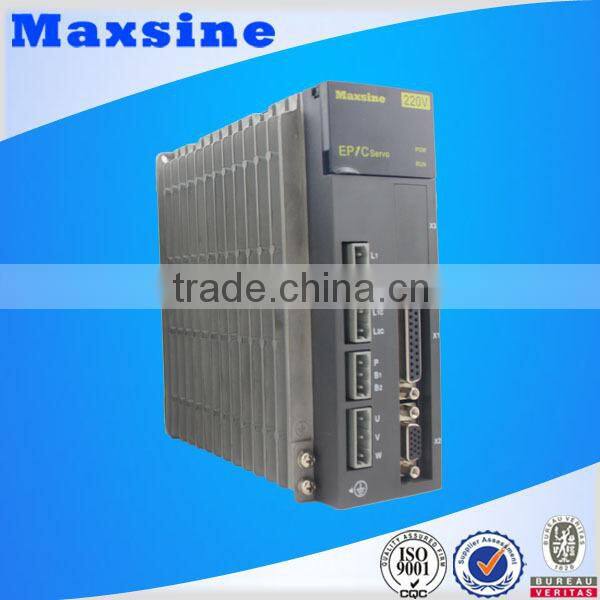

1' External brake resistor2' DC Reactor terminals
3' USB interface
4' 0.5kw~5.5kw 3 phase 220V
5' Analog and pulse control
|
|
1'Introduction of EP1C Specification
| Name | SERVO DRIVER | |||||||||
| Model | ATL05F | ATL10F | ATL15F | ATL25F | ATL35F | ATL55F | ||||
| Input power | Single phase AC220V | 3-phase AC220V -15% ~ +10% 50/60Hz | ||||||||
| Environment | Temperature | Working: 0°C~ 40°C Storing: -40°C~ 50°C | ||||||||
| Humidity | Working:40% ~ 80%(non condensing) Storing:below 93%(non condensing) | |||||||||
| Atmospheric Pressure | 86kPa ~ 106 kPa | |||||||||
| Protection Level | IP20 | |||||||||
| Control Mode | Vector control | |||||||||
| Regenerative Braking | Built-in/Built-out | Built-out | ||||||||
| Feedback Mode | 2500 line incremental encoder,encoder with fewer lines | |||||||||
| Control Mode | Position, speed and torque | |||||||||
| Digital Input | 5 Programmable input terminals(Optical Isolation) Function SRVON ,ACLR ,CW Drive inhibition,CCW Drive inhibition,CW Torque inhibition,CCW Torque inhibition,Emergency Stop,Electronic gear selection 1,electronic gear selection2,Position deviation clear,pulse input inhibition | |||||||||
| Digital Output | 3 Programmable input terminals(Optical Isolation) Function:SRDY,alarm,Finish Orientation Output,Reach Speed,electro-magnetic brake,Torque restrictions | |||||||||
| Signal Output of Encoder | Signal Types:A,B,Z Differential output,Z signal open-collector output | |||||||||
| Position | Input Frequency | Differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps) | ||||||||
| Instruction mode | Pulse+Signal,CCW Pulse/CW Pulse, orthogonal Pulse | |||||||||
| Electronic Gear Ratio | 1 ~ 32767/1 ~ 32767 | |||||||||
| Speed | Analog command input | -10V~+10V,Input impedance 10kΩ | ||||||||
| Acceleration/deceleration command | Parameter setting | |||||||||
| Command source | Analog quantity | |||||||||
| Torque | Analog command input | -10V~+10V,Input impedance 10kΩ | ||||||||
| Speed limit | Parameter setting | |||||||||
| Command source | Analog quantity | |||||||||
| Surveillance Function | Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency,busbar voltage,internal temperature of module etc. | |||||||||
| Defensive function | Overspeed, Overvoltage,Overcurrent,Overload,Abnormal of main Power,Abnormal Encoder,out of tolerance etc. | |||||||||
| Feature | Speed Frequency Response | ≥300Hz | ||||||||
| Speed Fluctuation Rate | <±0.03%(load 0 ~ 100%); <±0.02%(power-15% ~ +10%) | |||||||||
| Speed Ratio | 1:5000 | |||||||||
2'Servo driver models

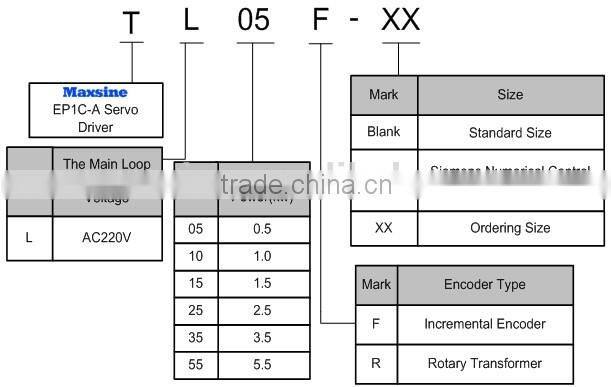

EP1C-ATL05F, EP1C-ATL10F, EP1C-ATL15F, EP1C-ATL25F, EP1C-ATL35F, EP1C-ATL55F

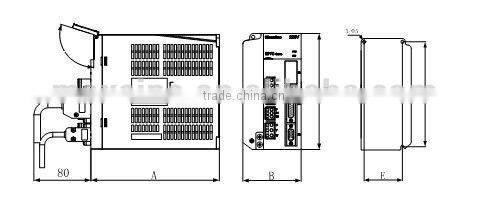

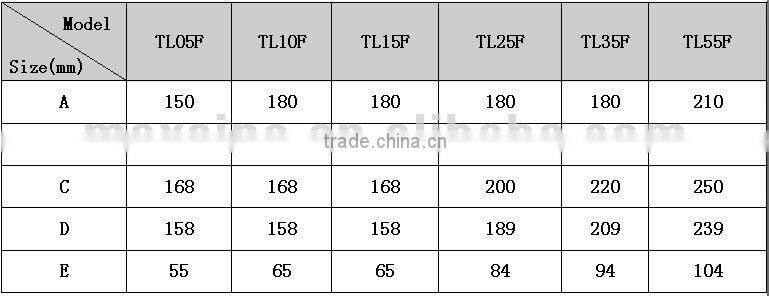

3'Introduction of Servo Driver EP1C-A Size
4' Application
- CNC industry
- Textile industry
- Robot industry
- Paper making industry
- Industrial spring machine
- Printing and packaging industry
- Mechanical spring machine industry
5' Detail show
packing:
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
|
Shipping:
1. EXPRESS(sample): around 5-7 working days to arrive 2. EXPRESS: around 3 weeks to arrive 3. Ocean carriage: usually less than 2 months |
Wuhan Maxsine Electric Co., Ltd. was established in Wuhan City in 2004. All-digital AC Servo Drivers and Permanent Magnet AC Servo Synchronous Motor are core products. With continuous effort of the staff for nearly 10 years and technical accumulation and innovation of the technical team for more than 20 years, our company has succeeded in holding both technology leading status and the biggest market share in China.

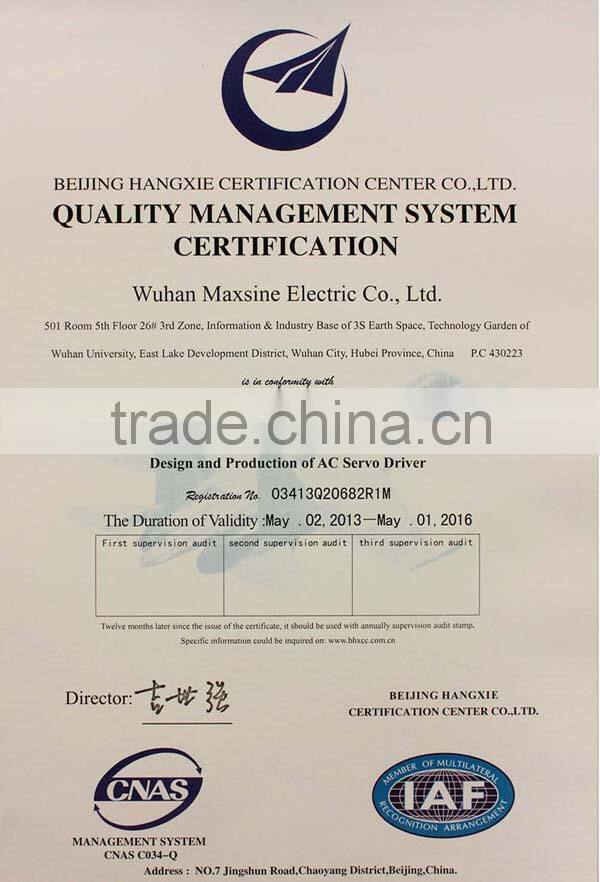

Certification
|
|
