Waste pe Plastic Film Recycling Production Line

Specifications

  waste pe plastic film recycling production line

  Features:

1) Environmentally friendly composite plastic-cellulose fiber materials

 2) The knievs can be shaped using carpentry and construction tools

3) Applications: Indoor decoration film, packing film, pallet making production, agricultural film etc.

 4) Capacity: 300-1000kg/h

5) Use: Clean PE PP film, dirty PP PE film, PP PE film with oil.

We can design a complete films washing line according to your request.

1. Belt conveyor: Convey material to next process.

2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)

3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.

4. Float Washing tank: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)

5. Screw feeder: transport material and as well as for rub them for surface cleaning.

6. Dewatering machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)

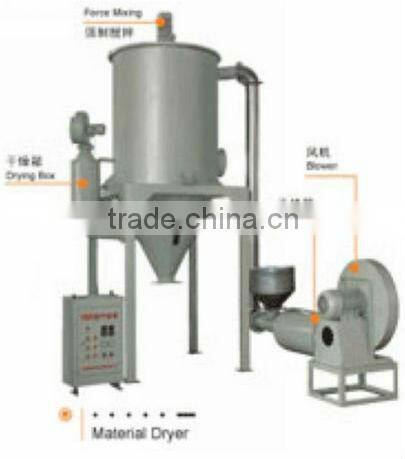

7. Air cyclone drying system: Using stainless steel “U” type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.

8. Cyclone silo: Storage for final products.

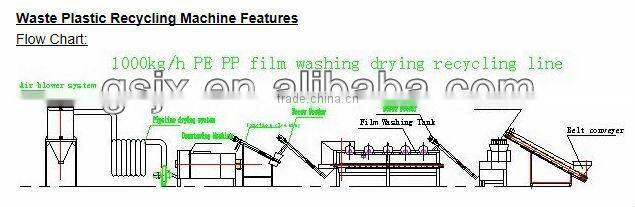

waste pe plastic film recycling production line  process flow:

 waste pp pe film plastic recycling machine data:

1, length of production line: 27 m;

2, installed power: 128 kw;

3, equipment noise: 1 meter≤ 80dB; 5  meters≤ 75dB;

4, water consumption for recyling 1T waste material: 1m³ (circulating water);

5, oil burning boiler steam volume: 300kg/h  ; steam pressure 0.7MPa; vapor temperature: 170° C;

average oil consumption per hour: 15-25L;

If you are interested in our plastic recycling machine,please feel free to contact us.

Thanks and best regards.

Amy Su
