Waste Plastic Bags Recycling Machines
- 36 Set / Sets per Month
- shanghai
- T/T
- complete set of pelletizer flue gas treating machine
- one-stop pelletizer flue gas treating machine
- Best performance pelletizer flue gas treating machine
- stainless steel pelletizer flue gas treating machine
- Portable pelletizer flue gas treating machine
- complete set of organic waste processing equipment
Product Details
Condition: | New | Application: | waste plastic recycling | Automatic Grade: | Automatic |
Production Capacity: | 500kg/h | Place of Origin: | Jiangsu, China | Brand Name: | gaosheng Waste Plastic Bags Recycling Machines |
Model Number: | 500kg/h Waste Plastic Bags Recycling Machines | Voltage: | 380V 50HZ | Power(W): | 90kw |
Certification: | CE | Warranty: | one year |
Product Description
Specifications
1.type:Waste Plastic Bags Recycling Machines2.capacity:500kg/h
3.power:90kw
4.CE certification
5.reasonable price
Waste Plastic Bags Recycling Machines
Features:
1) Environmentally friendly composite plastic-cellulose fiber materials
2) The knievs can be shaped using carpentry and construction tools
3) Applications: Indoor decoration film, packing film, pallet making production, agricultural film etc.
4) Capacity: 300-1000kg/h
5) Use: Clean PE PP film, dirty PP PE film, PP PE film with oil.
We can design a complete films washing line according to your request.
Waste Plastic Bags Recycling Machines ---machine list:
1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4. Float Washing tank: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
5. Screw feeder: transport material and as well as for rub them for surface cleaning.
6. Dewatering machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
7. Air cyclone drying system: Using stainless steel “U” type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
8. Cyclone silo: Storage for final products.

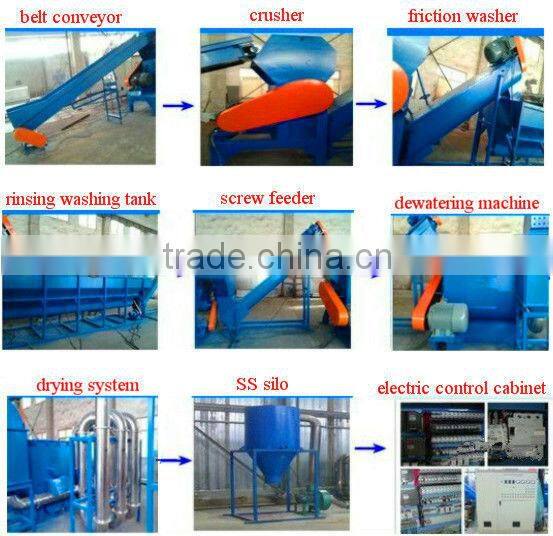

Waste Plastic Bags Recycling Machines-- Machine picture:
Waste Plastic Bags Recycling Machines detail information:
Number | Description | Technical parameters |
1 | Belt Conveyor | 1.Length: 4000mm,width:600mm 2.Material: Rubber 3.Motor: 1.5KW
|
2 | Crusher with Water | 1.Crush Capacity: 300-500Kg/h 2.Knife Material: Cr12MoV4. Motor Power: 37KW 3.Feeder Throat Dimension: 700×450mm, Diameter: Φ360mm
|
3 | High speed friction washing machine | 1.Motor power: 7.5 KW 2.Filtering method: Stainless Steel mesh 3.Principal axis diameter: 300mm, rotate speed: 750r/min 4.Spraying mouth on top: 2 fleets, 8 mouths 5.The equipment is with the material-feeding function.
|
4 | Film Rinse Tank | 1.Clean roller:5pcs 2.Width:1250mm,available length:6000mm 3.Motor power:2.2*2 4.Decontamination motor power:1.5KW 5.Tank Material: Stainless Steel 6. Residue Exclude Method: By Screw
|
5 | Screw Conveyer | 1. Motor Power: 1.5KW 2.Screw diameter:Φ200 3.With Water-drainage Function
|
6 | Film Dewatering Machine | 1. Motor Power: 45KW 2. Rotary Speed: 1400rpm 3.Main Shaft: Through dynamic and static balance treatment 4.Water -drainage Method: Downwards.
|
7 | Drying System | 1. Fan Motor Power: 5.5KW 2.Heating Power:28KW 3.Pipe Tract Diameter: Φ 159mm
|
8 | Material Store System/ hopper | 1. Cubage: 2 M ³ 2.Process Material: Stainless Steel 3.Material Lay-off Control: Plate Valve
|
9 | Electricity Control | 1. Contactor is brand“siemens”
|
10 | Production time | 35 days |
11 | Guarantee period | One year |
1, length of production line: 27 m;
2, installed power: 128 kw;
3, equipment noise: 1 meter≤ 80dB; 5 meters≤ 75dB;
4, water consumption for recyling 1T waste material: 1m³ (circulating water);
5, oil burning boiler steam volume: 300kg/h ; steam pressure 0.7MPa; vapor temperature: 170° C;
average oil consumption per hour: 15-25L;
If you are interested in our plastic recycling machine,please feel free to contact us.
