Specifications
1.type:Waste Plastic Wet Film Recycling Machine2.capacity:500kg/h
3.power:90kw
4.CE certification
5.reasonable price
Waste Plastic Wet Film Recycling Machine
Features:
1) Environmentally friendly composite plastic-cellulose fiber materials
2) The knievs can be shaped using carpentry and construction tools
3) Applications: Indoor decoration film, packing film, pallet making production, agricultural film etc.
4) Capacity: 300-1000kg/h
5) Use: Clean PE PP film, dirty PP PE film, PP PE film with oil.
We can design a complete films washing line according to your request.

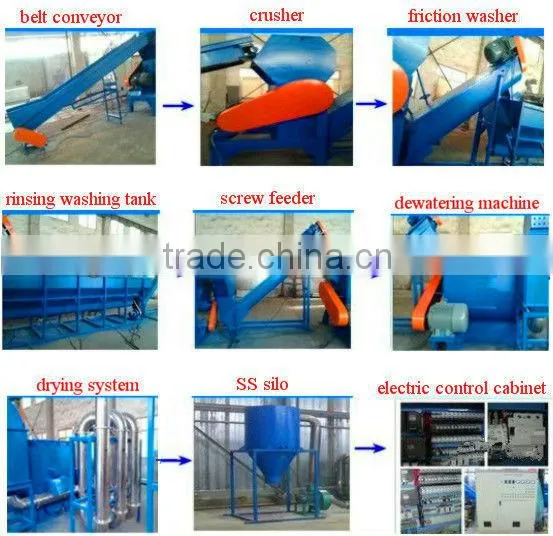

Waste Plastic Wet Film Recycling Machine machine description:

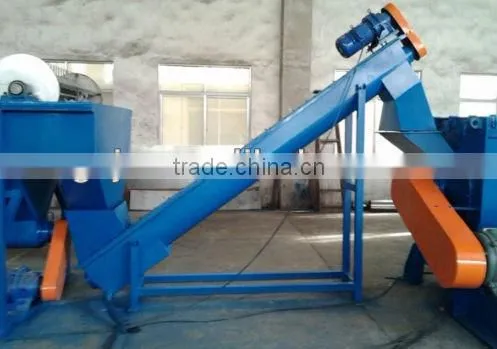

1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4. Float Washing tank: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
5. Screw feeder: transport material and as well as for rub them for surface cleaning.
6. Dewatering machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
7. Air cyclone drying system: Using stainless steel “U” type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
8. Cyclone silo: Storage for final products.

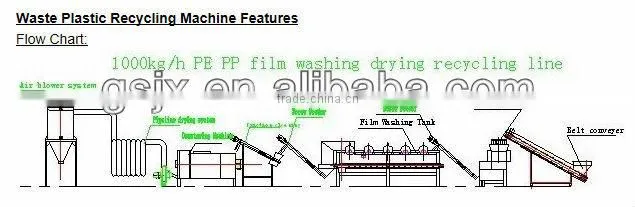

Waste Plastic Wet Film Recycling Machine process flow:
Waste Plastic Wet Film Recycling Machine technical data:
| WASTE PE. PP FILM CRUSHING WASHING LINE(OUTPUT: 500-700kg/hr) | |||||
| NO | component items | POWE(kw) | L*W*H(mm) | WEIGHT (kg) | QTY |
| 1 | Belt conveyor | 1.5 | 6000*900*600(3200) | 600 | 1 |
| 2 | PS-1000 Crusher with water | 45 | 1650*1660*2800(2800+920) | 1700 | 1 |
| 3 | Screw Loader 1(Φ 500) | 11 | 3500*800*1300 | 700 | 1 |
| 4 | Single Screw friction washing | 11+0.75 | 5300*1300*2150 | 2200 | 1 |
| 5 | Screw Loader 2(Φ 500) | 11 | 3500*800*1300 | 700 | 1 |
| 6 | Floating Tank | 2.2+1.1+1.5 | 6000*1200*2150 | 2300 | 1 |
| 7 | Screw Loader 3(Φ 500) | 11 | 3500*800*1300 | 700 | 1 |
| 8 | Horizontal dryer | 30 | 2300*1750*1900 | 2200 | 1 |
| 9 | Silo | 1500*900*3400 | 130 | 1 | |
| 10 | electrical control system | 800*500*2000 | 520 | 1 | |
| 1000*550*1150 | 120 | 1 | |||
|
1, length of production line: 27 m; 2, installed power: 128 kw; 3, equipment noise: 1 meter≤ 80dB; 5 meters≤ 75dB; 4, water consumption for recyling 1T waste material: 1m³ (circulating water); 5, oil burning boiler steam volume: 300kg/h ; steam pressure 0.7MPa; vapor temperature: 170° C; average oil consumption per hour: 15-25L; | |||||
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
Amy Su
