Plastic grinder and crusher recycling machine
- 100 Set / Sets per Month
- Qingdao/Shanghai
- T/T Credit Card PayPal
- Industrial plastic recycling crusher for bottle
- High Performance Powerful Recycling Machine Plastic Crusher
- Low Investment Waste Tire Shredder Equipment Line
- Hard PVC/PE Plastic pipe Crusher machine
- Fresh drinking water vendor/water vending machine for drinking
- Mineral Water Vending Machines/RO Water Vendor For Sale/Pure Water Vending Machine
Product Details
Condition: | New | Application: | Crushing and washing scrap plastic | Automatic Grade: | Automatic |
Production Capacity: | 1 Ton per hour | Place of Origin: | Henan, China | Brand Name: | AZEUS |
Model Number: | AZS800 Plastic grinder and crusher recycling machine | Voltage: | 380 V /50 Hz , 3 phase | Power(W): | 80.6 Kw |
Dimension(L*W*H): | 25000*4000*3000 mm | Weight: | 8000 Kg | Certification: | CE TUV |
Warranty: | 12 months, 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude packing . One 40 GP container for the whole plastic recycling line .
Plywood case packing for plastic bottle recycling line.
Product Description

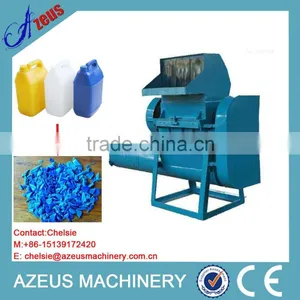

Plastic grinder and crusher recycling machine
Application of Plastic grinder and crusher recycling machine
Plastic bottle recycling line is used for crushing the waste PET bottles into the small flakes , it is a high automatic line with the function of auto conveying , label removing , crushing , washing ( hot wash and cold wash ) , dewatering The final PET flakes will be high cleanliness and can be sold to chemical fibre factory or reused for new plastic bottle production .
It is also applicable to PE , PP ,HDPE plastic , such as , plastic chair , plastic drum , plastic crate ,etc .

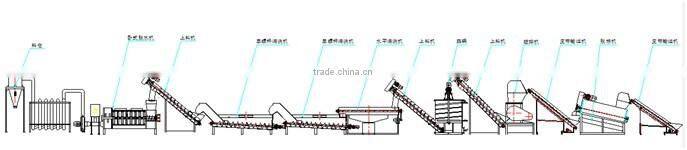

Conveyor--Label removal machine--Conveyor--Plastic crushing washing machine-Floating washing tank--Screw feeder--Hot washer--Screw feeder--Friction washer machine--Floating washing tank--Dewatering machine

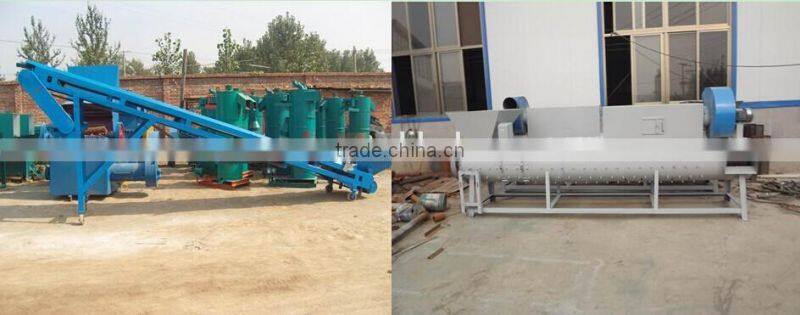

Belt conveyor Label removal machine

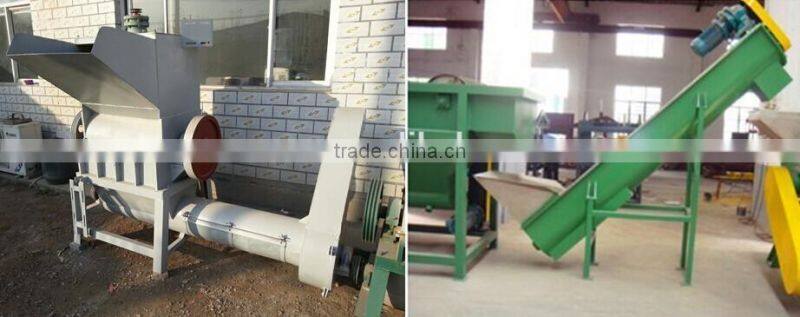

Plastic crushing washing machine Screw feeder

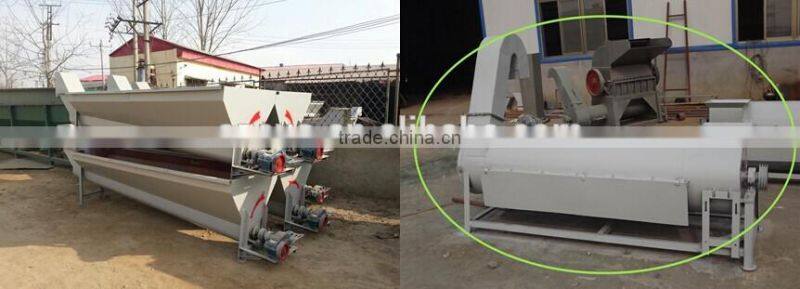

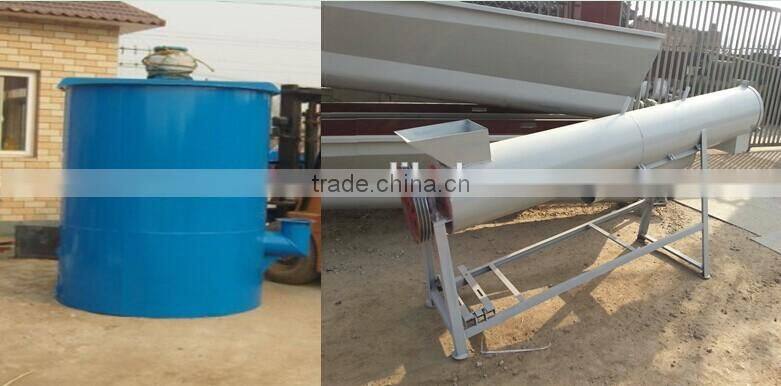

Hot washer Friction washing machine
Floating washing tank Dewatering machine
Main features of Plastic grinder and crusher recycling machine
1. Different production capacity for your option , 600 Kg per hour , 1000 Kg per hour , 1500 Kg per hour.
2. High automatic , once the recycling line is set up , only need 3-4 persons to control it .
3. The output plastic size can be customized by your order . Normally it is 10--20 mm .

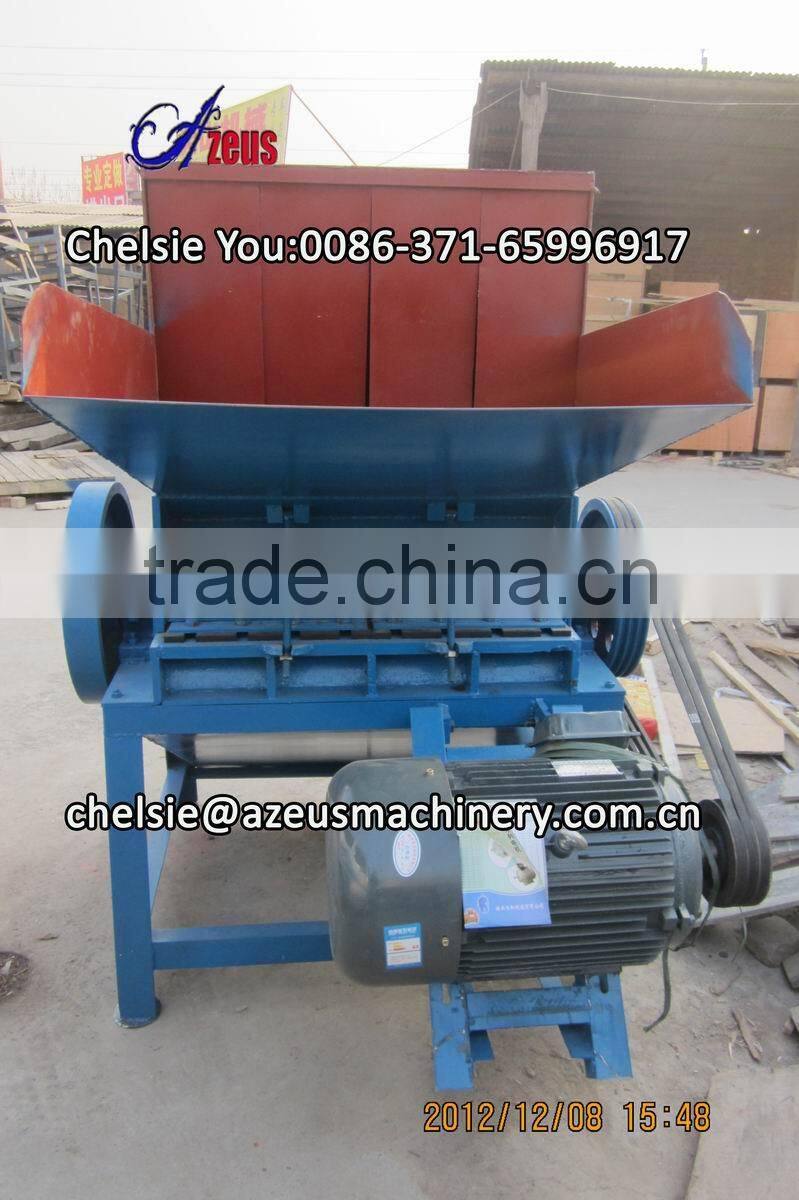

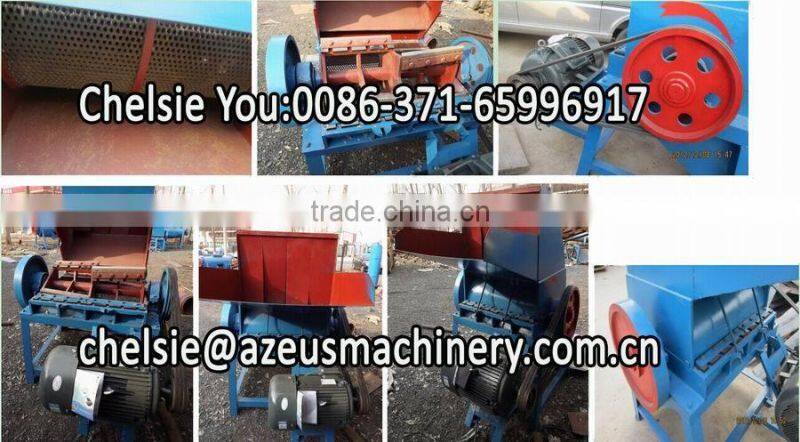

4. Plastic crusher adopts 25 mm thickness iron crushing chamber, more durable and can run for long time.
5. There is a spiral pressurizer equipped on the top of the crusher machine , its main function is to force the PET bottles into the crushing room. It can greatly increase the productivity.
6 . Good price . Gain the biggest profit by costing not too much money .
7. High cleanliness . All the dirt , mud , oil stain can be washed off by a series of washing .
Technical parameter for Plastic grinder and crusher recycling machine
Model | AZS600 | AZS800 | AZS1000 |
Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Motor Power | 15Kw | 22Kw | 30Kw |
Rotation Speed | 600-1000RPM | 900-1000RPM | 900-1000RPM |
Inlet Size(L*W) | 60*25cm | 80*40cm | 60*100cm |
Capacity | 600-700kg/h | 800-1000kg/h | 1500kg/h |
Screen Aperture | 16/18mm | 16/18mm | 16/18mm |
Machine Weight | 850KG | 950Kg | 1000Kg |
Machine Dimension | 1.2*1.6*1.1m | 1.2*1.7*1.1m | 1.4*1.4*1.7m |

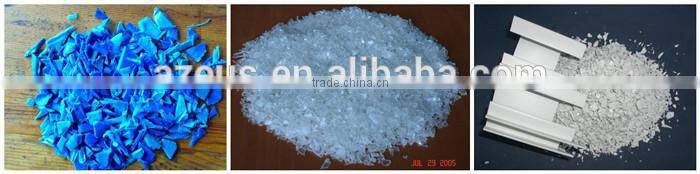

Process all kinds of the plastic waste products into valuable plastic flakes in clean and shining condition !!
Before
After
Payment terms
We accept different payment terms as below, you can choose the most suitable one.
Our services
1.Plastic bottle and can crusher warranty period is 12 months expect consumable spare parts, such as grinding stone, filter net.
2.During this guarantee period, we will provide the spare parts ( not including consumable spare parts) without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operation, we will provide the spare parts at cost price.
3.AZEUS will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
4.The machine will come with one extra consumable parts for replacement, user's manual in English, recipe.
5.If you need help after you service the machine, please call us or email us to get more detailed technical assistance. We will reply within 24 hours.
