Specifications
PVC Ceiling Panel Extruding Machine1.sharping length:2.1m
2.factory
3.cutting size:100x70mm
4.CE certification
PVC Ceiling Panel Extruding Machine
Feature::
This machine is used to produce PVC ceiling panel, PVC wall panel with width from 160mm upto 600mm. the surface of PVC ceiling panel can be two color high glossy printing, heat transfer printing, lamation, which can make marble,wooden design on surface of product.

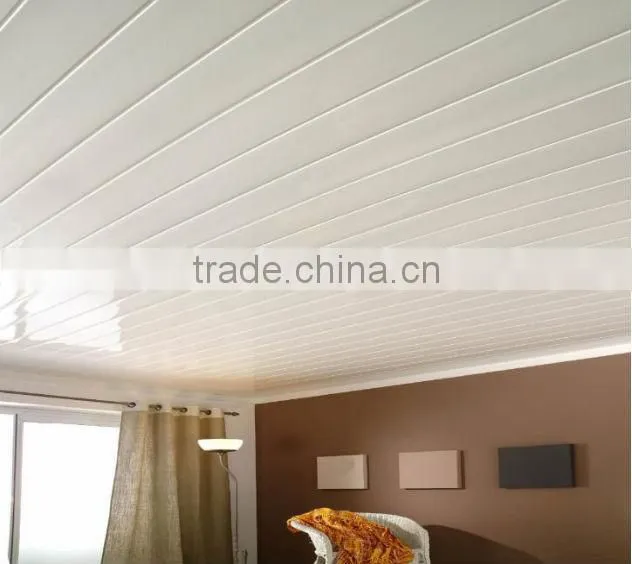

Ceiling application:
1.Household Ornament: Wall and ceiling of indent independent house bathroom
2.Public and Management Place: Toilet of building and hall
3.Common Office: Ceiling of business Place .
PVC Ceiling Panel Extruding Machine --Main Machine:

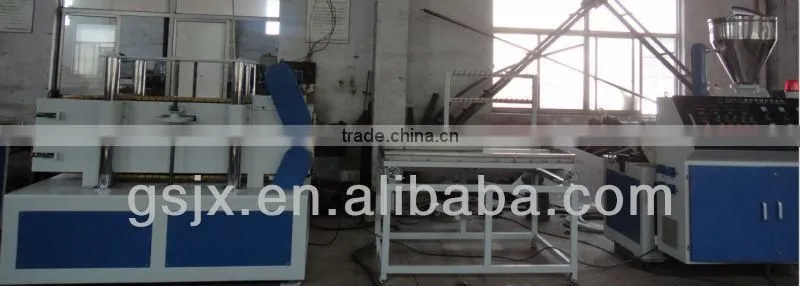

Raw material → mixing → feeder → double screw extruder →mould → vacuum calibration table → haul-off unit → automatic cutting machine → stack
Name |
Quantity |
|
Mixing unit
|
1set |
|
Conical twin screw extruder
|
1set |
|
Mould and calibrating
|
1set |
|
Vacuum calibrating table
|
1set |
|
Haul-off machine
|
1set |
|
Cutter machine
|
1set |
|
Tipping stacker
|
1set |

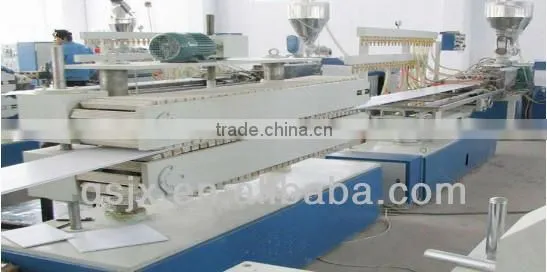

PVC Ceiling Panel Extruding Machine --picture:
1.Extruder
2.Vacuum forming machine
Function:The adjustment of shaping mold from left to right and from up to down is convenient and simple.
Independent four-section vacuum system assures the quality of product.
High effective vacuum device can realize high effective extrusion of product.
3.hauling off machine
Function:The traction pressure can be adjusted freely.
The powerful traction can meet the needs to produce high quality profile,
The traction and traction speed can be controlled remotely and the operation is very simple
4.Cutter machine
Unique transverse cutting gurantees high quality kerf.
Particular alloy blade guarantees section quality of profile
Synchronizer guarantees cutting accord with extruding.
Strong dust arrest system protect the environment.
PVC Ceiling Panel Extruding Machine ---data sheet:
| Extruder Model | Main power | Product width |
Capacity |
|
SJZ51 twin screw extruder
|
18.5KW | 200mm |
100kg/h |
|
SJZ55/110 double screwextruder
|
22KW |
300mm | 100-150kg/h |
|
SJZ65/132 twin screw extruder
|
37KW |
400mm | 150-250kg/h |
|
SJZ80/156 double screwextruder
|
55KW |
600mm | 250-300kg/h |

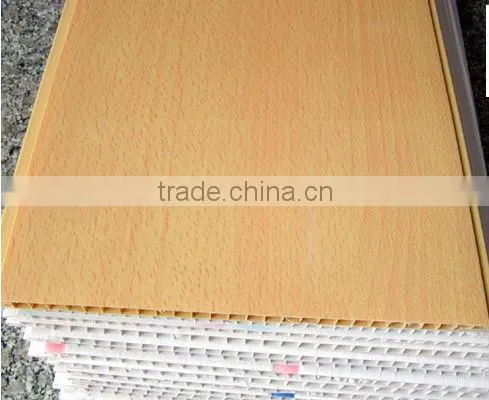

The ceiling sample:
After Service:
We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machine,please feel free to contact us.
We hope we can assist you on the machine.
Thanks a lot.
Kind regards.
