Chinese Laser Machine (400mmx400mm)

Name: Chinese Laser Machine (400mmx400mm)
Brand: Quanxing
SKU: 118937533
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Laser Type:

CO2

Engraving Area:

400x400mm

Engraving Speed:

0-500mm/s

Jinan Quanxing Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOBQingdao

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Engraving Area 400x400mm

Engraving Speed 0-500mm/s

CNC or Not No

Cooling Mode Water Cooling

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood

Graphic Format Supported PLT, DXF, BMP

Place of Origin Shandong, China

Brand Name Quanxing

Model Number QX-4040

Certification CE, ISO

Specifications

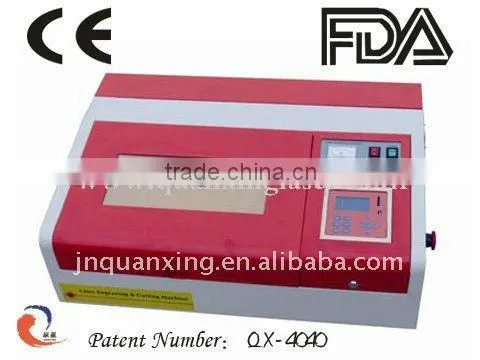

QX-4040 mini laser engraving cutting machine
40w CO2 laser tube
newlydraw software

Jinan laser engraving cutting machine QX4040

Range of application:

1. It is suitable for small area craft processing on wood, bamboo, double color board, rubber, acrylic, clothing and leather.

2. It is special designed for stamp, portrait, badges, chest cards and various small engraving and cutting.

Warranty :

1.12 Months for Machine

2.3 Months for laser tube, lens and mirror

3.6 Months for equipments outside, such as water pump, fan, air pump,etc.

TERMS & CONDITIONS:

1. PAYMENT TERMS: By T/T
2. DELIVERY TIME: Max. 5-7 days after your deposit
3. PACKING: Seaworthy Packing

Parameters:

Model	QX4040
Engraving Area	400 X 400mm
Laser Power	40W
Engraving Speed	0-500mm/s
Cutting speed	0-50mm/s
Up and down work table	Manual Up and down
Minimum Shaping Character	1 X 1mm / (0.04 X0.04)in.
Resolution Ratio	0.0254mm / 0.001in. (1000dpi)
Power Supply	220V(or110V)+/-10% 50HZ
Resetting Positioning	Accuracy less than or equal to 0.01mm 0.0004in.
Gross Power	500W
Operating Temperature	0-45C
Operating Humidity	35-70 Celsius system
Graphic Format Supported	PLT,DXF,BMP(Direct output); JPG,GIF,PGN,TIF(Conversion output)
Software supported:	Design software: CorelDraw, PhotoShop Direct output software: Newlydraw (Included)
Operation System	Windows98/ME/2000/XP/VISTA
Engraver For Curve Surfaces(Yes/No)	Yes, ≤1.5mm
Water Cooling(Yes/No)	Yes
Laser Tube(Life time)	1200-1500 Hours
Certificate	CE and FDA
Equipment Dimensions	800X500X250cm / (31.5 X20 X9.8)in.
Net weight	35KG
Gross weight	37KG
Shipping Dimensions	945x640x430mm / (37.2X 25.2 X16.9)in.
