Specifications
QX1490 laser engraving machine1)CO2 laser tube:60w 80w 100w 150w 180w
2)DSP control system
3)USB interface

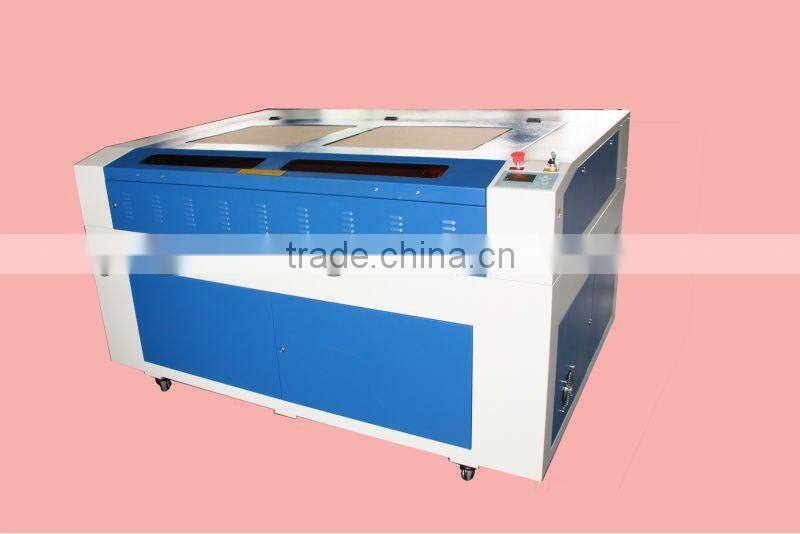

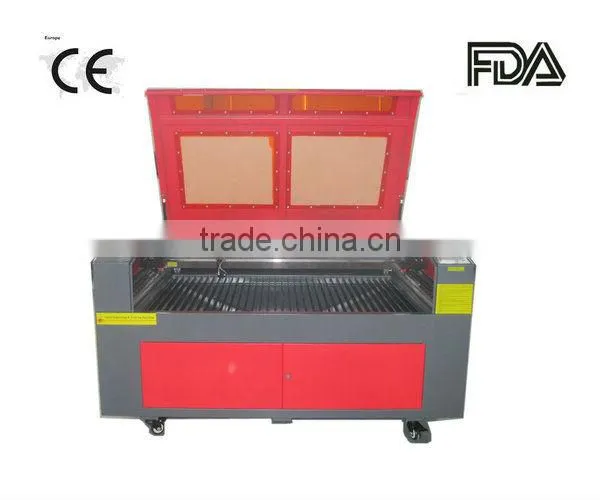

QX1490 Galvo laser cutting mahcine
Product Description:
1. LCD Panel
2. DSP Control System
3. Lasercut5.3 Software, Coredraw CAD
4. Various workingtable: Honeycomb or slat worktable with funnel
5. Motorized up &down worktable
6. Water pump, air pump, air blower
7. CE FDA certificate
Product Features:
1 Double Red Pointer, Wast collect box
2 with front and back feature for super-long materials processing
3 limit switch for safe processing
4 Seperate control system box
Standard basic setting:

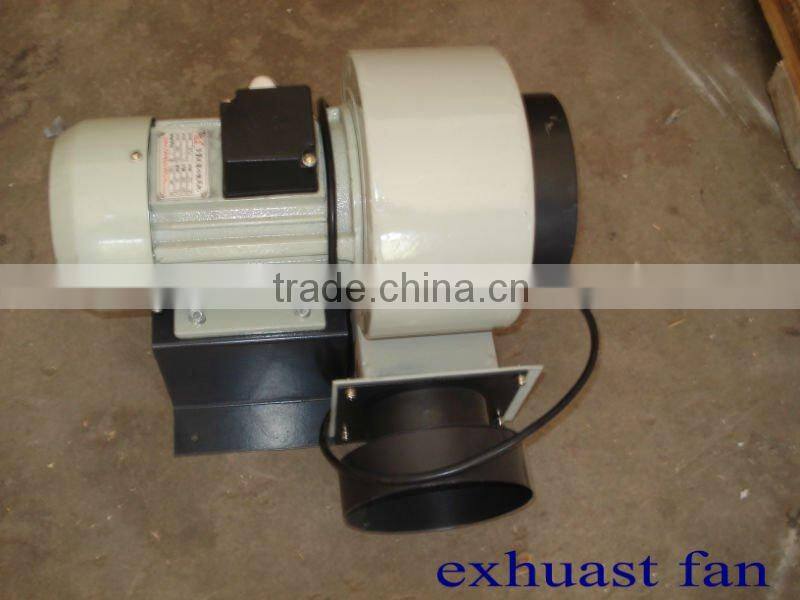

Water pump, air pump, exhaust fan, LaserCut software, laser tube
Optional setting:

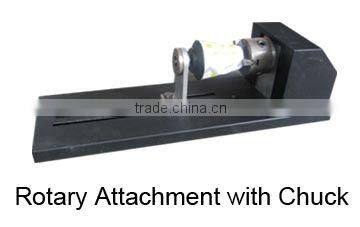

1. Rotary clamp for engraving on cups, cylinder or round materials
2. Motorized up&down table for thick object engraving
3. Water chiller for cooling laser tube
4. Red DOT pointer
5. Auto focus
6. Honeycomb working table for soft material
7. Vacuum table special for soft material
Applicable materials:
Non-metal materials such as double color board, Plexiglas, glass, acrylic, bamboo and wood, rubber, marble, granite and tiles, leather, cloth etc.
Applicable industry:
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry
TERMS & CONDITIONS:
1. PAYMENT TERMS: By T/T
2. DELIVERY TIME: Max. 7 -10 days after your payment
3. PACKING: Seaworthy Packing
4. PRODUCT OF ORIGIN: P. R. China
5. PRODUCT GUARANTEE PERIOD: Twelve Months for every part of machine, 6 months for laser tube and lens
After-sales service:
CD, Video, User Manual to guide how to install, operate our machine.
main features:
(1) double red pointer , wast collect box
(2) with front and back feature for super-long materals processing
(3) limit switch for safe processing
(4) seperate control system box
(5) 12 month warranty for every part of machine, 3 months for laser tube
(6) CD, video user manual to guide you how to install, operate , maintain machine step by step
Equip with imported dual linear guide,so machine can move stably and cut the edge smoothly.
Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
Specification | |||
Model |
QX1490 |
||
Working area |
1400*900mm |
||
Laser Power |
80W(optional: 60w, 100w, 130w 150w) |
||
Laser Type |
CO2 sealed glass Laser Tube |
||
Engraving speed |
0-75,000mm/min |
||
Cutting speed |
0-4,000mm/min |
||
Driving system |
stepper |
||
Resetting positioning accuracy |
0.01mm |
||
Location precision |
≤0.01mm |
||
Minimum Shaping Character |
1×1mm |
||
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
||
Software supported |
ArtCut, CorelDraw, PhotoShop, AutoCAD |
||
Graphic format supported |
BMP CIF JPEG TGA TIFF PLT AL DXF DST(TIANDAO Embroidery Software) DWG CDR |
||
Water Cooling(Yes / No) |
Yes |
||
Laser Tube (life hours) |
2000-3000 hours |
||
Assistant Equipment |
Water pump |
Air pump |
Exhaust fan |
Optional Parts |
Red dot pointer, auto focus |
Water chiller |
Rotary, up and down table |
Consumables |
Lens and mirror, laser tube |
||
Certificate |
CE |
||
Proper Materials: Acrylic, Crystal, Bamboo, Cloth, Fabric/Denim, Fiberglass, Glass, Laminated Plastic, Leather, Marble, Plastic, Paper, Rubber, Wood, MDF, Marble, Anodized Aluminium, Coated Metal, etc. | |||
Application: Sign Making, Nameplates, Awards, Badges and Tags, Gift Engraving, Model Making, Architectural Model, Image engraving, Fabric Engraving and Cutting, Jeans Image, Hollowing on Leather, Notary Seals, Rubber Stamps, Souvenirs, etc. | |||
|
Warranty:
| |||
