Specifications
1. QX1290 Laser Engraving Machine2. Double Red Pointer
3. DSP Control System
4. Lasercut5.3 Software,Coredraw CAD
5. CE

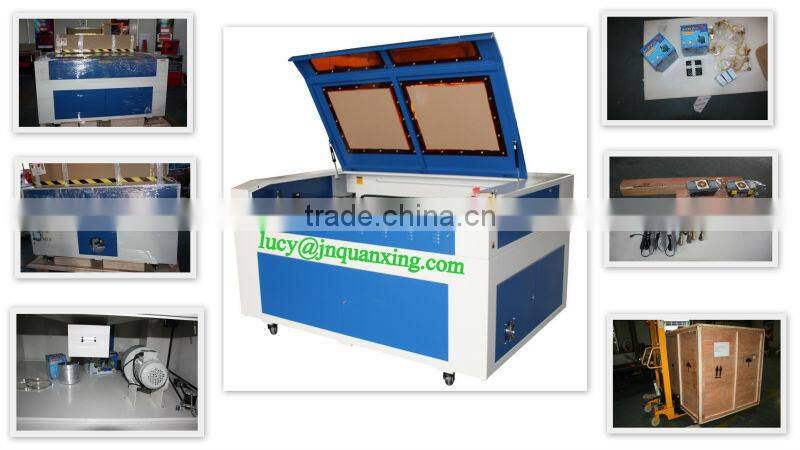

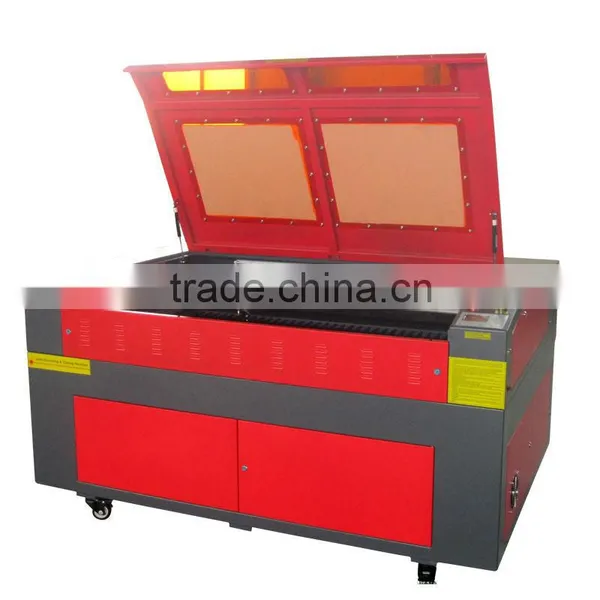

Laser Engraving Cutting Machine Price------QX1290
QX1490 Laser Machine Working Video:
/watch?v=Exkppp127r0
A: Main application:
Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline, marble, leather, cloth, double-color board, etc. Nonmetal materials
B: Laser Machine Standard Configuration & Parts included:
1) Double Red Pointer: easy to adjust focus distance.
2) Front and back feature door: for super-long materials processing
3) X, Y Z axis Limit switch: for safe processing
4) Seperate control system box : much safe
5) Leetro MPC6515 or MPC6535 DSP Offline system with USB: much stable
6) Water flow sensor: protect laser tube, no water, will have no laser light
7) Slat work table or Honeycomb Table with funnel: Selectable
8) Air pump, water pump, exhaust fan,tool box, etc.

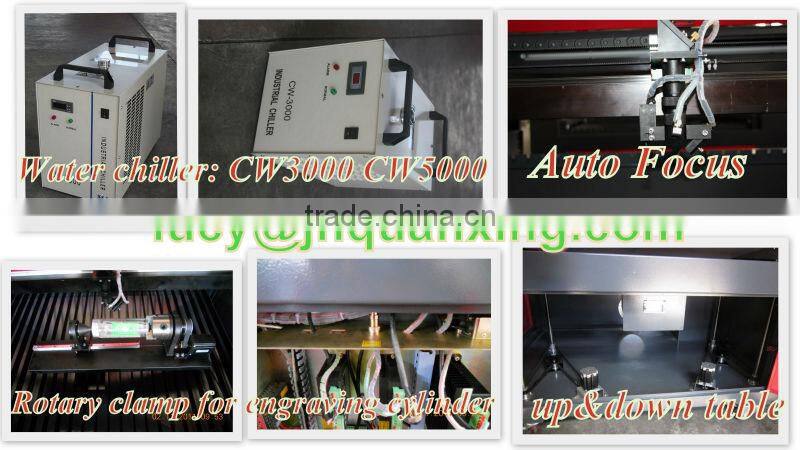

C: Optional Parts:
1) Motorized up&down table for thickness materials processing
2) Rotary clamp for engraving cylinders
3) Water chiller CW3000 or CW5000 for cooling tube, much better cooling system
4) Auto Focus, based on up&down table, it could set focus distance automaticaly.
D: Trading Terms:
@ Delivery time:
It is 5-7 working days after your order.
@ Favorable Policy:
We'd like to give you some discount or send you some spare parts free of charge according to quantity of your order, especially for distributors.
@ Warranty:
12 month warranty for every part of machine, 3 months for laser tube, lens, mirror
@ After-sales service:
CD, Video, User Manual to guide you how to install, operate, maintain machine step by step
@ Payment Terms: T/T
E: Techncial Parameter:
Product model |
QX1290 |
Maxi working area |
1200*900mm |
Laser power (standard configuration) |
80W |
Options: long life time laser tube 80W, 100W,150W,180W | |
Laser Types |
Hermetic And Detached CO2 Laser Tube |
Engraving speed |
0-75,000mm/min |
Cutting speed |
0-40,000mm/min |
Location precision |
≤0.01mm |
Resetting positioning accuracy |
≤0.01mm |
Power supply |
AC 220V/50Hz |
Gross power |
<1,000W |
Operating temperature |
0 - 45° |
Operating humidity |
5 - 95% |
Minimum shaping character |
English 1×1mm |
360°slope engrave |
Yes |
Driving system |
stepper |
Cooling mode |
Water-cooling and protection system |
Auxiliary Devices |
Exhauster And Exhaust Pipe |
Software |
Lasercut 5.3 |
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Optional |
Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, Filtrator |
Optional water cooling system |
water pump, water chiller, air cooler |
F: Laser Machine Processing Materials:

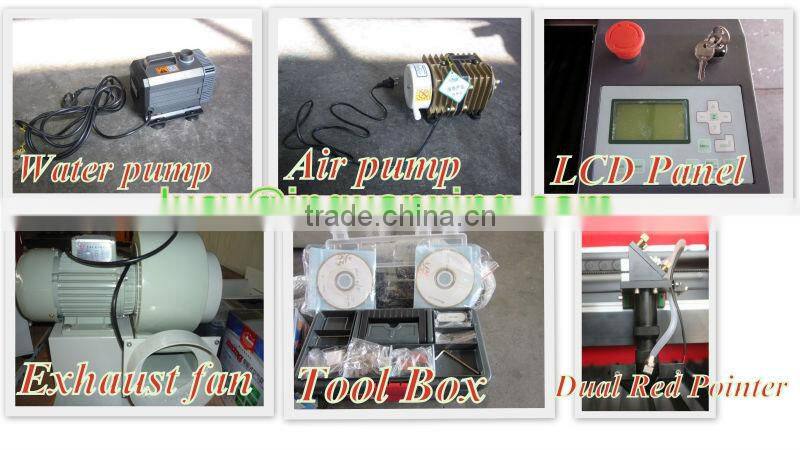

G: Parts&Configuration Included:
H: Optional Parts:
I: Sample Pictures:

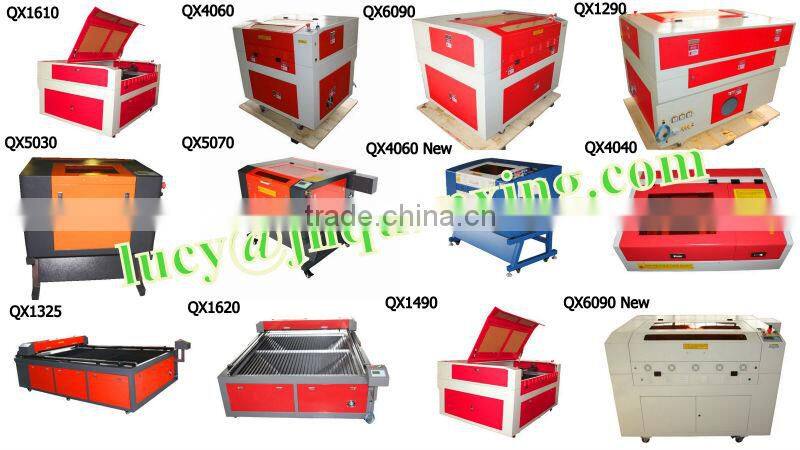

J: Other Models of Laser Engraving Cutting Machine:
K: Contact Information:
