QX1290(100W) Textile Laser Cutting Machine

Name: QX1290(100W) Textile Laser Cutting Machine
Brand: Quanxing
SKU: 118932871
Availability: InStock

US$ 4,000 - 5,000 MOQ: 1 Set

Key Specifications

Laser Type:

CO2

Applicable Material:

Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness:

1-25mm

Jinan Quanxing Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness 1-25mm

Cutting Area 120x90cm

Cutting Speed 0-400mm/s

CNC or Not Yes

Cooling Mode Water Cooling

Control Software DSP

Graphic Format Supported AI, PLT, DXF, BMP, DST, DXP

Place of Origin Shandong, China

Brand Name Quanxing

Model Number QX1290, QX1290

Certification CE, ISO, SGS

Specifications

textile laser cutting machine
1)CO2 laser tube
2)tube power: 60w 80w 100w 130w 150w
3) double red pointer

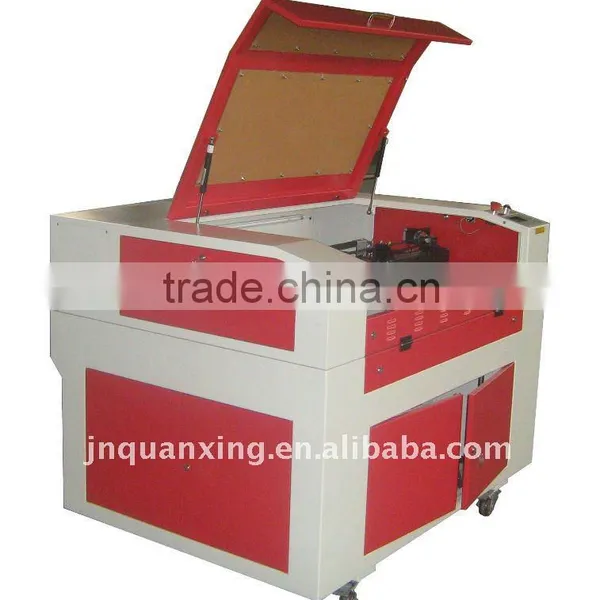

QX1290(100w)Textile laser cutting machine

Specification
Model	QX1290
Working area	1200*900mm
Laser Power	100W(optional: 60w, 80w, 130w 150w)
Laser Type	CO2 sealed glass Laser Tube
Engraving speed	0-75,000mm/min
Cutting speed	0-4,000mm/min
Driving system	stepper
Resetting positioning accuracy	0.01mm
Location precision	≤0.01mm
Minimum Shaping Character	1×1mm
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Software supported	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported	BMP CIF JPEG TGA TIFF PLT AL DXF DST(TIANDAO Embroidery Software) DWG CDR
Water Cooling(Yes / No)	Yes
Laser Tube (life hours)	1200-1500 hours
Assistant Equipment	Water pump	Air pump	Exhaust fan
Optional Parts	Red dot pointer, auto focus	Water chiller	Rotary, up and down table
Consumables	Lens and mirror, laser tube
Certificate	CE
Proper Materials: Acrylic, Crystal, Bamboo, Cloth, Fabric/Denim, Fiberglass, Glass, Laminated Plastic, Leather, Marble, Plastic, Paper, Rubber, Wood, MDF, Marble, Anodized Aluminium, Coated Metal, etc.
Application: Sign Making, Nameplates, Awards, Badges and Tags, Gift Engraving, Model Making, Architectural Model, Image engraving, Fabric Engraving and Cutting, Jeans Image, Hollowing on Leather, Notary Seals, Rubber Stamps, Souvenirs, etc.
Warranty: 12 Months for Machine 3 months for laser tube, lens and mirrors 6 months for external assistant device, such as water pump, fan
