Specifications
laser cut acrylic shapes1>Up-down working table
2>Double red-pointer fixed position
3>one year good warranty
4>CE FDA

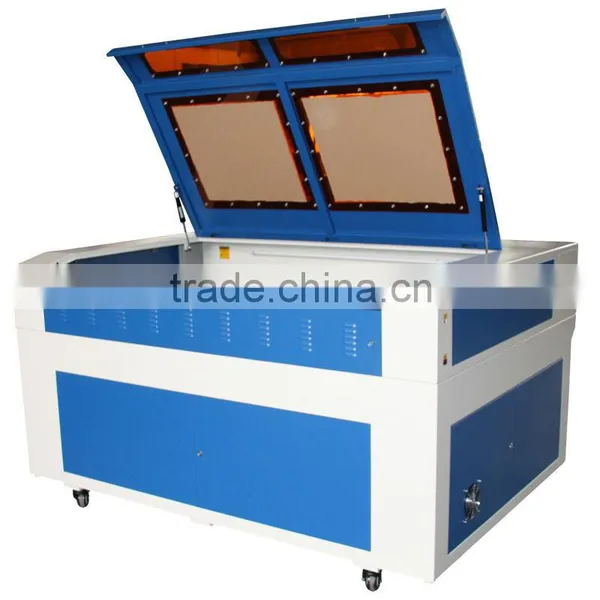

laser cut acrylic shapes QX-1490
Performance Features of laser machine
1.Configure higher power laser tube.
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.
Techincal Parameter
QX-1290- laser machine | |
Item / Model |
QX-1490 |
Cutting area |
1400x900mm |
Laser power |
80W/100W/150W/180W |
Laser type |
CO2 Laser tube |
Cutting speed |
0-50000mm/min |
Resetting positioning accuracy |
0.01mm |
Power supply |
220V/50HZ 110V/60HZ |
Operating temperature |
0 - 45°C |
Operating humidity |
5-95% |
Min. shaping character |
English 1.0x 1.0mm |
Graphic format supported |
PLT,AI,DXF,BMP,DST.ect. |
Software supported |
CorelDraw, PhotoShop, AutoCAD, Tiandao,Tajima |
Driving system |
3 phases actuator / Stepper/Servomotor |
Cooling mode |
Water-cooling and protection system |
Equipment Dimensions |
1200*1110*820mm |
Net Weight: |
240kg |
Shipping Dimensions |
1560*1410*1100mm |
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts |
Laser Tube and Lens |
Application Field
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry
