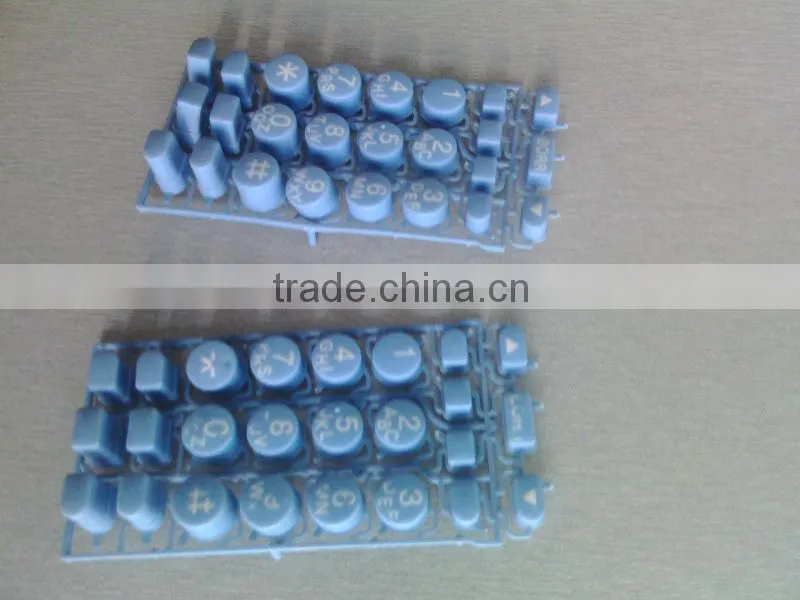

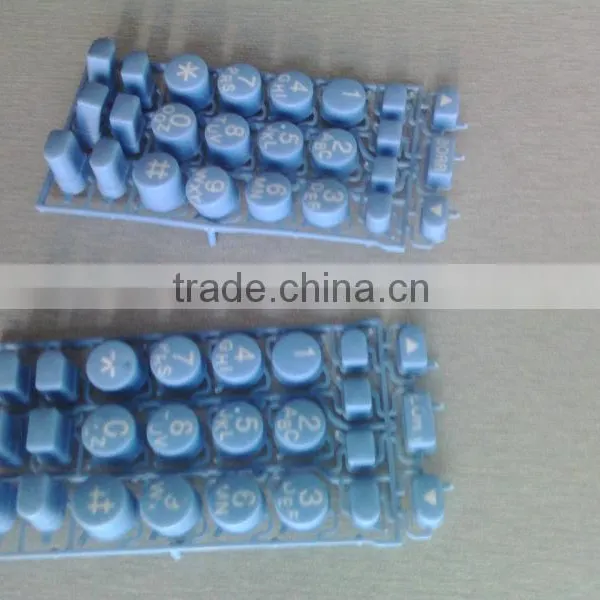

Help CenterKS-45T Plastic Button Making Machine
Related Products
-
KS-55T-001 Machine de MoulageNegotiableMOQ: 1 Set -
KS-35T Small Injection Moulding MachineUS$ 6,808 - 8,266MOQ: 1 Set
-
85ton Standard Injection Molding MachineNegotiableMOQ: 1 Set
-
KS-55T Insert Molding Production for Injection MachineNegotiableMOQ: 1 Set
-
2015 NEW KS-35T Electric Wire/Plug Making MachineNegotiableMOQ: 1 Set

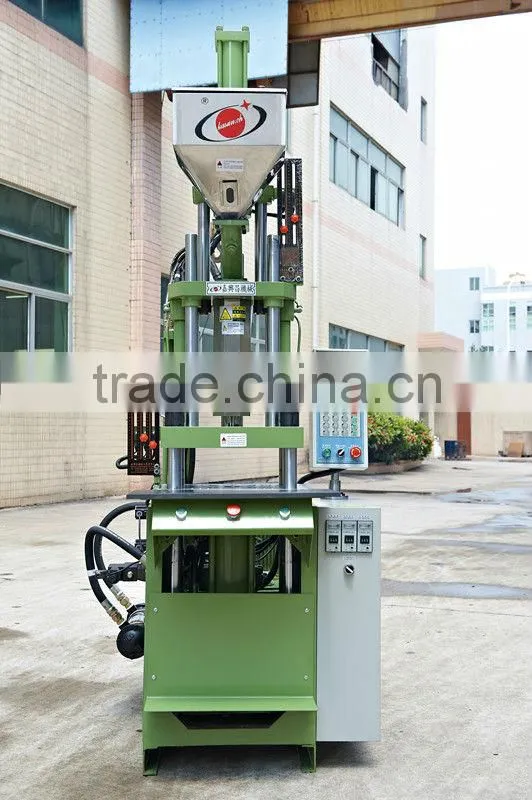

KS-45T vertical injection molding machine
Injection unit:
double guiding rod supporting
double dro-cylinder balance injection
cold start protection
linear displacement transducer accurately monitor injection position
heating status indicate
Computer-control:
PLC control
improved precision to due to faster speed control system
automatic alarm
digital memory for mold group
Hydraulic unit:
Japan YUKEN
system pressure is controlled through proportional valves
Clamping unit:
fine-element analysis used to design platen
adjustable mechanical support system used for moving platens to protect tie bars
Other parts:
shot counter and reset function
malfunction alarm light
self-diagnostic function
emergency stop buttons placed both front and rear of the machine to provide to easy access
blotter filter
| Model | Unit | KS-45T |
| Screw Diameter | mm | 25 | 28 | 32 |
| Injection Pressure | Kg/cm² | 2150 | 1714 | 1313 |
| Theoretical Shot Volume | cm³ | 78.5 | 98 | 129 |
| (ps) Max.shot Weight(ps) | G/oz | 72 | 90 | 119 |
| Injection Rate | cm³/sec | 43 | 54 | 70 |
| Number of Temperature Control | zone | 3 |
| Clamping Force | Tons | 45 |
| Opening Force | Tons | 9 |
| Platen Size | mm | 600*440 |
| Distance Between Tie Bare | mm | 410*250 |
| Min.Mold Height | mm | 100/150 |
| Oprening Stroke | mm | 200 |
| Ejector Force | Tons | 2.2 |
| Ejector Stroke | mm | 34 |
| Max.Hydaulic Pressure | Kg/cm² | 140 |
| Pump Output | Liters/min | 40 |
| Pump Motor Power | kw/HP | 5.5/7.5 |
| Barrel Heating Power | kw | 3.9 |
| Machine Weight | Tons | 1.6 |
| Machine Dimensions(L×W×H) | m | 1.55*1.23*2.45 |
| Shipping Measurements(L×W×H) | m | 1.9*1.5*2.0 |
