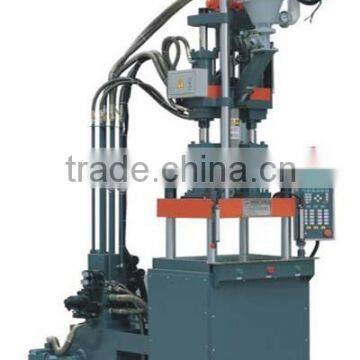

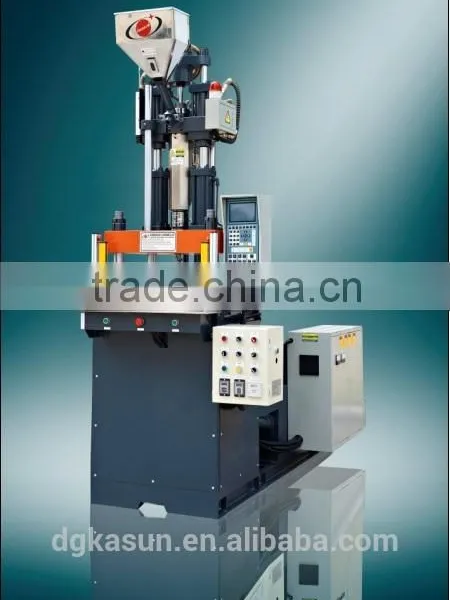

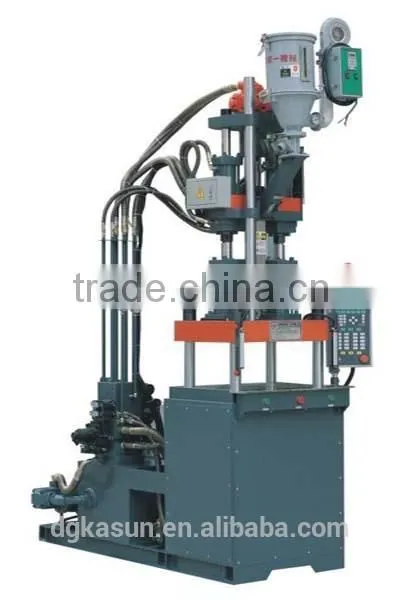

KS-55T-001 Machine de Moulage
Negotiable
/ Set
1 Set(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Vertical | Brand Name | kasun | |
| Model Number | KS-55T | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 81-133g | Injection Rate | 65-106cm3/sec | |
| Clamping Force | 55tons | Opening Stroke | 200mm | |
| Certification | ISO9000 |
Product Description
Specifications
1.Machine de moulage2.factory address:xinsha industrial area shatou district chang'an town dongguan
KS-55T Machine de moulage
Injection unit:
double guiding rod supporting
double dro-cylinder balance injection
cold start protection
linear displacement transducer accurately monitor injection position
heating status indicate
Computer-control:
PLC control
automatic alarm
digital memory for mold group
Hydraulic unit:
Japan YUKEN
system pressure is controlled through proportional
Clamping unit:
fine-element analysis used to design platen
adjustable mechanical support system used for moving platens to protect tie bars
Other parts:
shot counter and reset function
malfunction alarm light
self-diagnostic function
emergency stop buttons placed both front and rear of the machine to provide to easy access
| Model | Unit | KS-55T |
| Screw Diameter | mm | 25 | 28 | 32 |
| Injection Pressure | Kg/cm² | 2150 | 1714 | 1313 |
| Theoretical Shot Volume | cm³ | 88 | 111 | 145 |
| (ps) Max.shot Weight(ps) | G/oz | 80 | 102 | 133 |
| Injection Rate | cm³/sec | 65 | 81 | 106 |
| Number of Temperature Control | zone | 3 |
| Clamping Force | Tons | 55 |
| Opening Force | Tons | 14 |
| Platen Size | mm | 720*560 |
| Distance Between Tie Bare | mm | 500*340 |
| Min.Mold Height | mm | 200 |
| Oprening Stroke | mm | 200 |
| Ejector Force | Tons | 2.2 |
| Ejector Stroke | mm | 49 |
| Max.Hydaulic Pressure | Kg/cm² | 140 |
| Pump Output | Liters/min | 60 |
| Pump Motor Power | kw/HP | 11/15 |
| Barrel Heating Power | kw | 6 |
| Machine Weight | Tons | 2.3 |
| Machine Dimensions(L×W×H) | m | 2.1*1.25*2.82 |
| Shipping Measurements(L×W×H) | m | 2.3*1.5*2.3 |
Configuration table
| Oil pressure spares: | ||||||||
| oil pump | Taiwan Hai Teke Hydraulic CO.,LTD. | |||||||
| oil motor | U.S. WHITE Group | |||||||
| electromagnetic selector valve | Japan YUKEN CO.,LTD. | |||||||
| proportional valve | Japan YUKEN CO.,LTD. | |||||||
| semi-closure valve controller | Germany Dr.Rexroth INC. | |||||||
| hydraulic valve | Taiwan Hai Teke Hydraulic CO.,LTD. | |||||||
| Electric spares: | ||||||||
| computer controller | Procheson Technology CO.,LTD. | |||||||
| temperature sensing wire | Taiwan Arico CO.,LTD. | |||||||
| SSR | Taiwan Yangming CO.,LTD. | |||||||
| electric ruler | Switzerland Mrian CO.,LTD. | |||||||
| power switch | Mitsubishi | |||||||
| Others: | ||||||||
| electronic motor | Global Electric Machinery LTD. | |||||||
| sealing | Japan NOK Joint-Stock-Cooperation | |||||||
| feed pipe group | Taiwan Tianxing CO.,LTD. | |||||||
| tie bar | Taiwan Jiangjun Machinery CO. | |||||||
| oil pipe | Italy ALFA CO. | |||||||
| oil cylinder | Taiwan Jiangjun Machinery CO. | |||||||
