KS-35T Small Injection Moulding Machine
US$ 6,808 - 8,266
/ Set
1 Set(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, injection molding | |
| Style | Vertical | Brand Name | kasun | |
| Model Number | KS-35T | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 56-92g | Injection Rate | 38-63cm3/sec | |
| Clamping Force | 35tons | Opening Stroke | 180mm | |
| Certification | ISO9000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

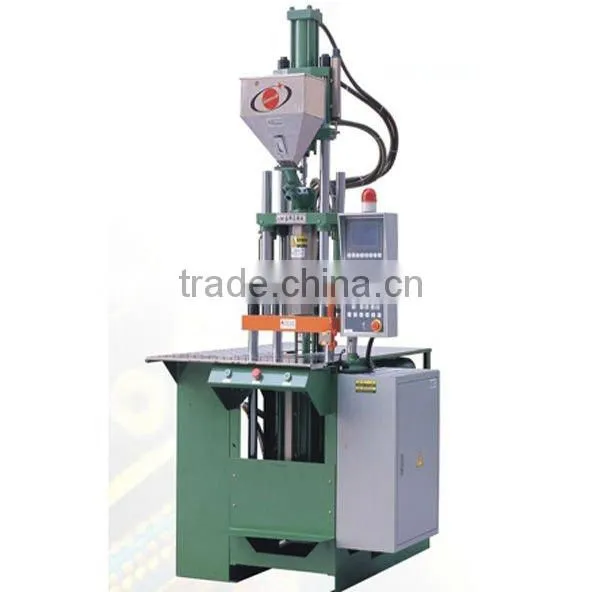

KS-35T vertical small injection moulding machine
Injection section:
double guiding rod supporting
double dro-cylinder balance injection
Computer-control:
PLC control
improved precision to due to faster speed control system
automatic alarm
digital memory for mold group
Hydraulic unit:
Japan YUKEN
system pressure is controlled through proportional
Clamping unit:
fine-element analysis used to design platen
adjustable mechanical support system used for moving platens to protect tie bars
Other parts:
shot counter and reset function
malfunction alarm light
self-diagnostic function
emergency stop buttons placed both front and rear of the machine to provide to easy access
blotter filter
| Model | Unit | KS-35T |
| Screw Diameter | mm | 25 | 28 | 32 |
| Injection Pressure | Kg/cm² | 1814 | 1446 | 1107 |
| Theoretical Shot Volume | cm³ | 61 | 77 | 100 |
| (ps) Max.shot Weight(ps) | G/oz | 56 | 71 | 92 |
| Injection Rate | cm³/sec | 38 | 48 | 63 |
| Number of Temperature Control | 3 | |
| Clamping Force | Tons | 35 |
| Opening Force | Tons | 7 |
| Platen Size | mm | 530*380 |
| Distance Between Tie Bare | mm | 355*205 |
| Min.Mold Height | mm | 60/120 |
| Oprening Stroke | mm | 180 |
| Ejector Force | Tons | 1.5 |
| Ejector Stroke | mm | 30 |
| Max.Hydaulic Pressure | Kg/cm² | 140 |
| Pump Output | Liters/min | 30 |
| Pump Motor Power | kw/HP | 4/5.5 |
| Barrel Heating Power | kw | 2.95 |
| Machine Weight | Tons | 1.2 |
| Machine Dimensions(L×W×H) | m | 1.47*1.07*2.41 |
| Shipping Measurements(L×W×H) | m | 1.8*1.3*1.8 |
