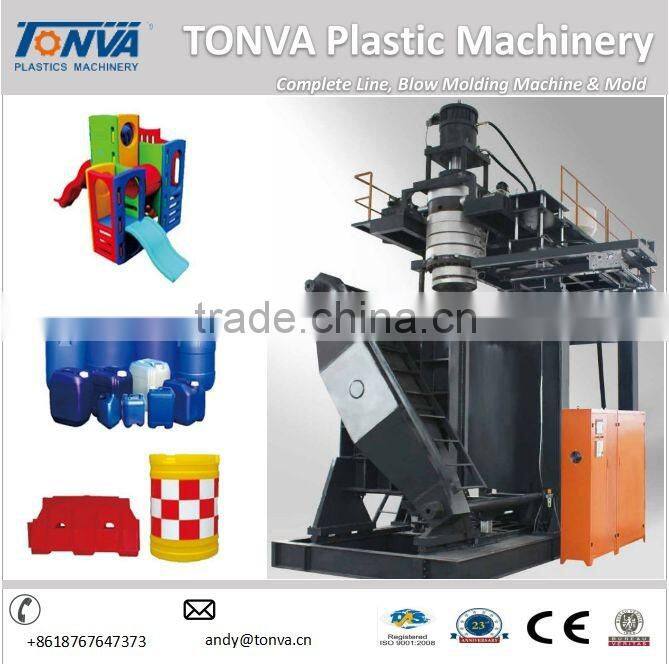

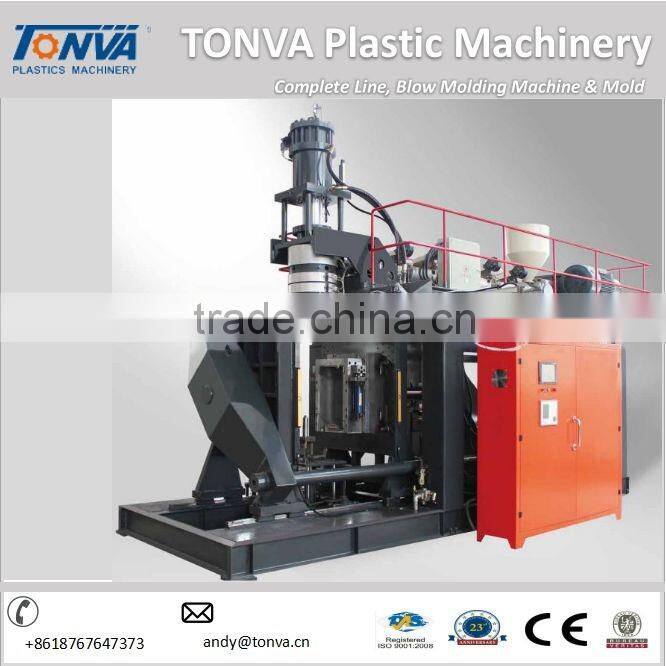

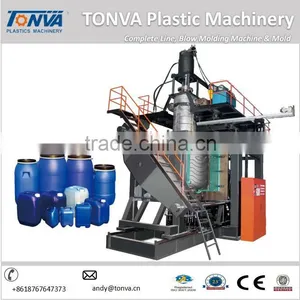

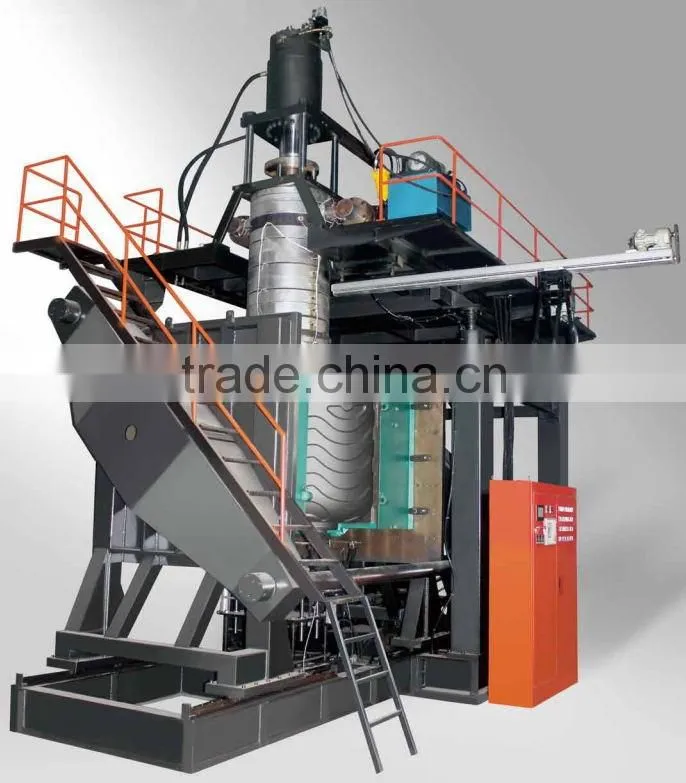

TONVA Blowing Machine Of Plastic Water Tank Machine

TONVA Blowing Machine Of Plastic Water Tank Machine thumbnail-1
TONVA Blowing Machine Of Plastic Water Tank Machine thumbnail-2
TONVA Blowing Machine Of Plastic Water Tank Machine thumbnail-3
TONVA Blowing Machine Of Plastic Water Tank Machine thumbnail-4
TONVA Blowing Machine Of Plastic Water Tank Machine thumbnail-5
TONVA Blowing Machine Of Plastic Water Tank Machine photo-1
TONVA Blowing Machine Of Plastic Water Tank Machine photo-2
TONVA Blowing Machine Of Plastic Water Tank Machine photo-3
TONVA Blowing Machine Of Plastic Water Tank Machine photo-4
TONVA Blowing Machine Of Plastic Water Tank Machine photo-5
US$ 218000.00 - 218000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Yuhuan Tonva Plastics Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name TONVA
Model Number TVA-2000L-III
Voltage 380V
Power(W) 55*3kW
Dimension(L*W*H) 8.9*5.8*6.6
Weight 45kg
Certification ISO9001;BV;CE;SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
About Us
Product Description

TVA-2000L-III Basic Specification:

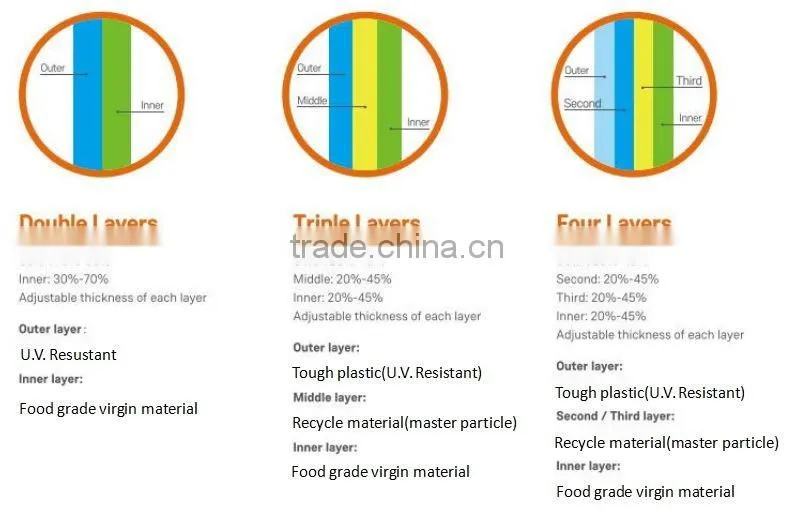

Single station,triple layer;
Accumulator Die-head;
110mm screw / 55kw motor;
110mm screw / 55kw motor;
110mm screw / 55kw motor;
HDPE etc material;
Output(Barrel per hour):(30KG-40KG)---6-7BPH;
MOOG parison controller 100 points;
Intelligent temperature control system;
Take out robot arm strong type;
Servo motor for saving energy;

TVA-2000L-III Working Condition:

Power supply:380VAC/50HZ(depending on client's country);
Water cooling-----20℃(30HP Water chiller);
Air source-----18kw air compressor;
TVA-2000L-III Technical Parameter
CATEGORY
ITEM
UNIT
TVA-2000L-III

Basic Specification
Raw Material
--
HDPE etc
Dimension
m
8.9*5.8*6.6
Total Weight
kg
45000




Extrusion System
Diameter of screw
mm
110*3
Screw L/D ration
L/D
30:1
Screw rotating speed
r/min
10-85
Plasticizing capacity
kg/h
550
Drive motor
kw
55*3
Heating power
kw
27*3


Die Head
Die head material
--
38CrMOALA
Accumulator volume
L
70
Accumulator capacity
kg
52.5
Heating power
kw
45

Clamping System
Platen size(W*H)
mm
1800*2100
Clamping range
mm
1100*3100
Clamping force
kn
1400



Power Consumption
Servo pump power
kw
45
Total power
kw
336
Average power consumption
kw/h
138
Air consumption
m³/min
1.5
Water consumption
m³/h
3.8

Basic Working Theory:

This kind of machine is accumulator die head, single station, equipped with PLC control system, operating manual in English, pure hydraulic operated, with MOOG 100points parison controller, running stable.

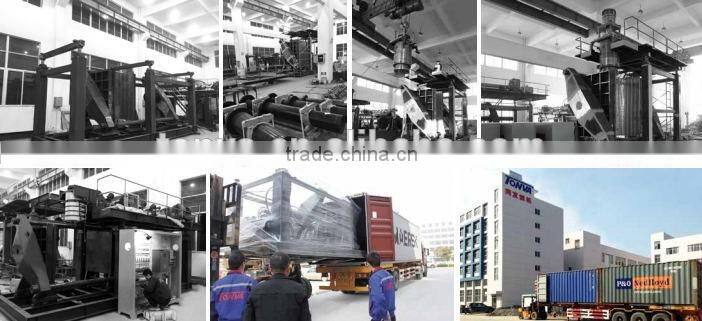

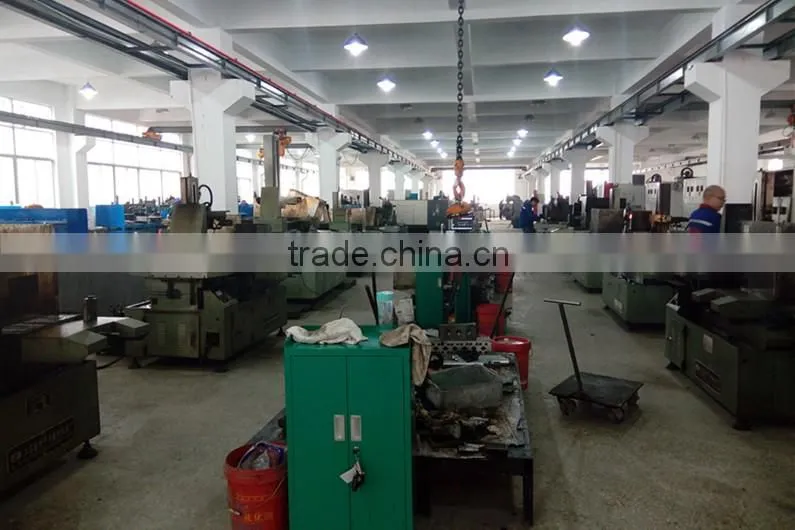

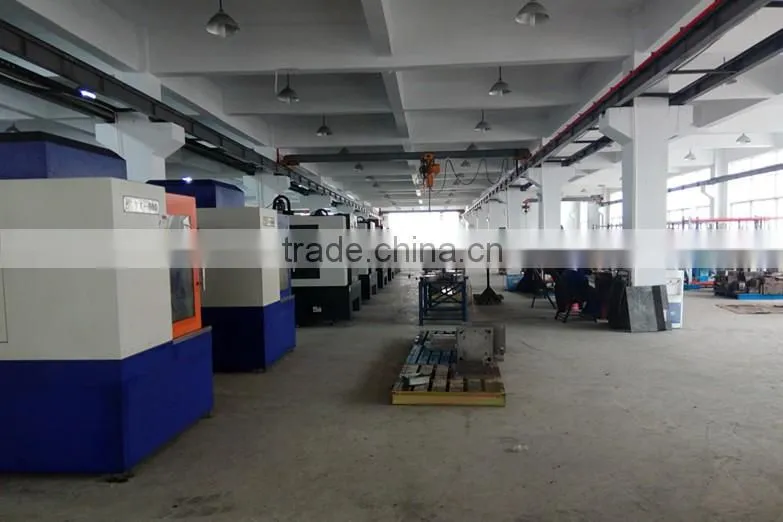

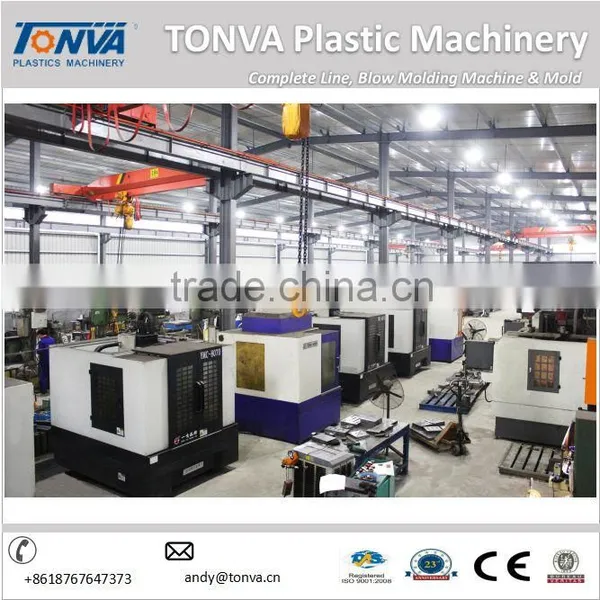

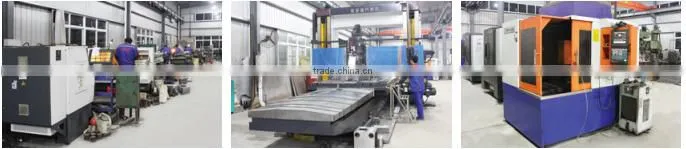

Moulds Workshop
Main parts brand
Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
