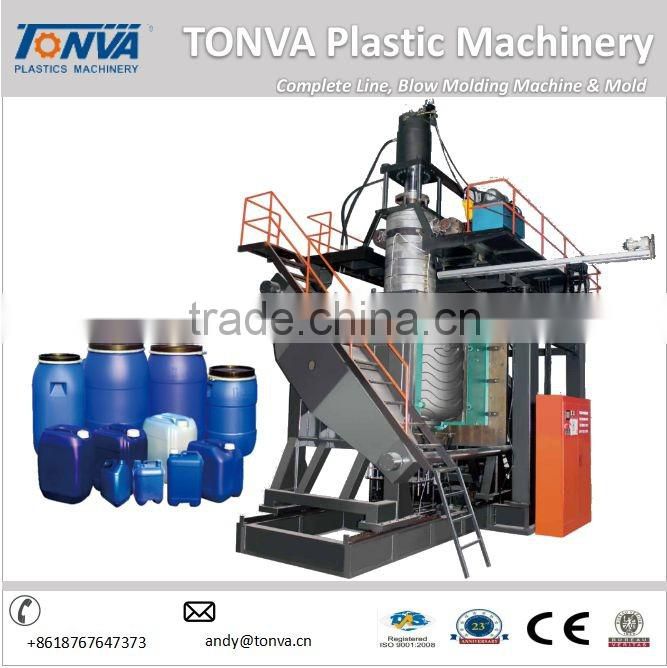

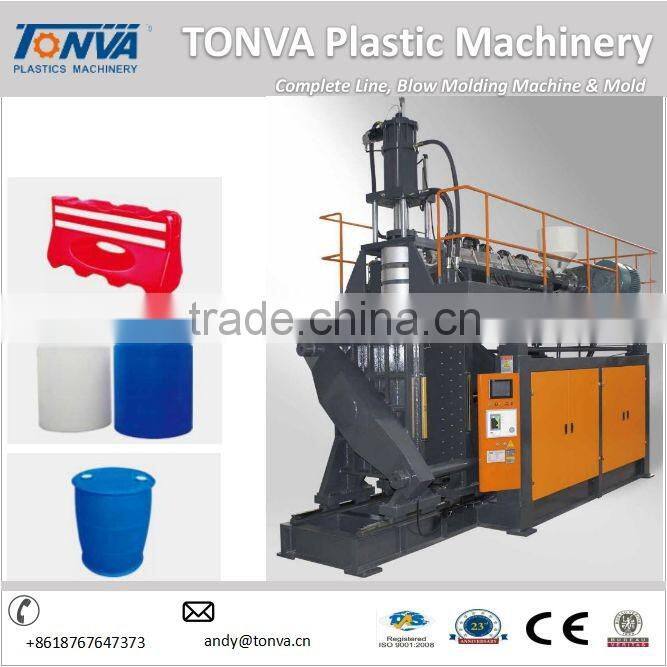

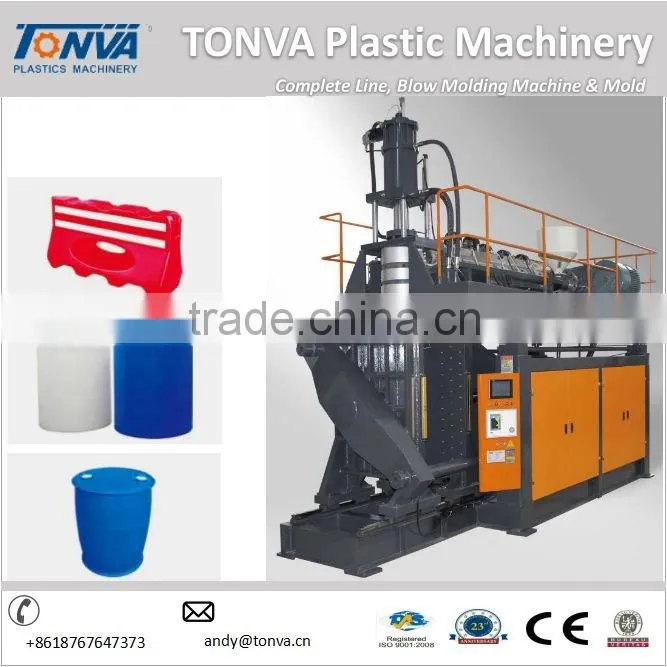

Specification of Water Tank Blow Moulding Machine

Specification of Water Tank Blow Moulding Machine thumbnail-1
Specification of Water Tank Blow Moulding Machine thumbnail-2
Specification of Water Tank Blow Moulding Machine thumbnail-3
Specification of Water Tank Blow Moulding Machine thumbnail-4
Specification of Water Tank Blow Moulding Machine thumbnail-5
Specification of Water Tank Blow Moulding Machine photo-1

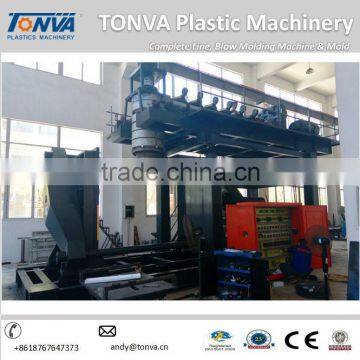

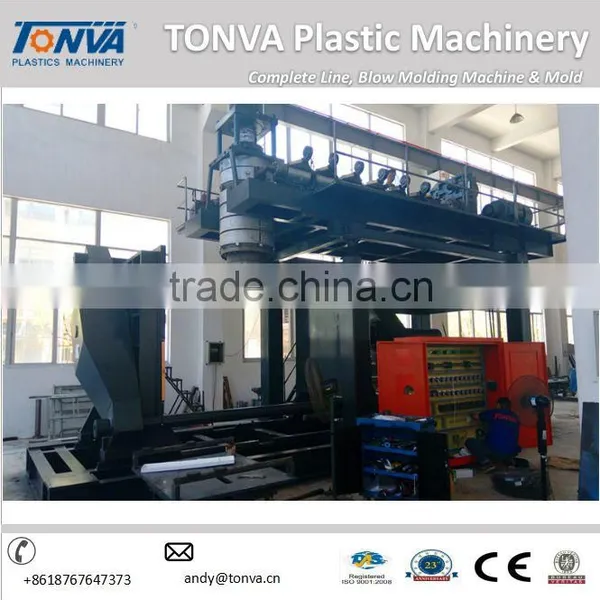

Specification of Water Tank Blow Moulding Machine photo-2
Specification of Water Tank Blow Moulding Machine photo-3
Specification of Water Tank Blow Moulding Machine photo-4
Specification of Water Tank Blow Moulding Machine photo-5
US$ 176000.00 - 176000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Yuhuan Tonva Plastics Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name TONVA
Model Number TVA-1000L-III
Voltage 380V
Power(W) 30/45*2kW
Dimension(L*W*H) 7.8*5.4*6.2
Weight 40000kg
Certification ISO9001;BV;CE;SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
About Us

TONVA Plastic Machine Co.,Ltd was established in 1993,we are specializing in Extrusion blow molding machine,PET stretch blow molding machine,molds and auxiliary machine.


Product Description

TVA-1000L-III Basic Specification:


Single station,triple layers;
Accumulator Die-head;
90mm screw / 30kw motor;
100mm screw / 45kw motor;
100mm screw / 45kw motor;
HDPE etc material;
Output(Barrel per hour):(15KG-20KG)---10-12BPH;
MOOG parison controller 100 points;
Intelligent temperature control system;
Take out robot arm strong type;

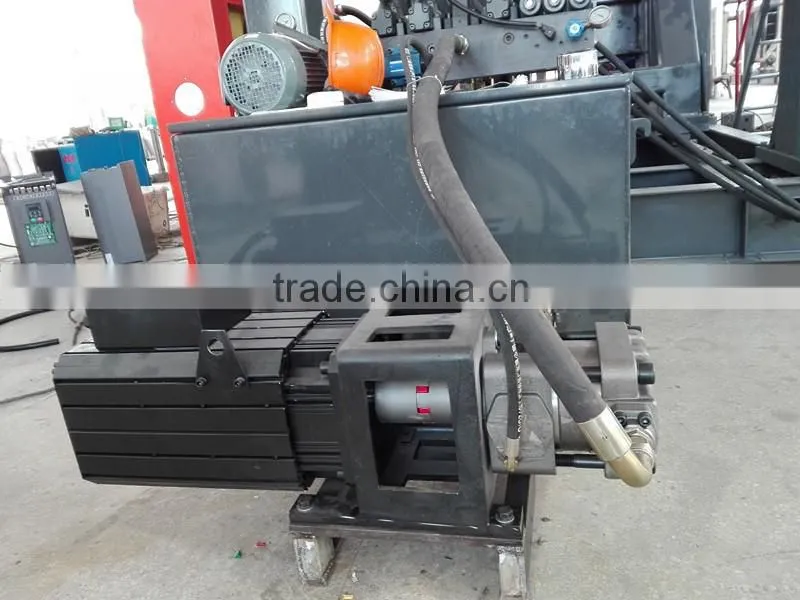

Servo motor for saving energy;

TVA-1000L-III Working Condition:

Power supply:380VAC/50HZ(depending on client's country);
Water cooling-----20℃(30HP Water chiller);
Air source-----18kw air compressor;
TVA-1000L-III Technical Parameter
CATEGORY
ITEM
UNIT
TVA-1000L-III

Basic Specification
Raw Material
--
HDPE etc
Dimension
m
7.5*5.4*6.2
Total Weight
kg
40000




Extrusion System
Diameter of screw
mm
90/100/100
Screw L/D ration
L/D
30:1
Screw rotating speed
r/min
10-85
Plasticizing capacity
kg/h
380
Drive motor
kw
30/45*2
Heating power
kw
23/25*2


Die Head
Die head material
--
38CrMOALA
Accumulator volume
L
40
Accumulator capacity
kg
30
Heating power
kw
35

Clamping System
Platen size(W*H)
mm
1600*1900
Clamping range
mm
1000-2800
Clamping force
kn
1200



Power Consumption
Servo pump power
kw
37
Total power
kw
265
Average power consumption
kw/h
114
Air consumption
m³/min
1.2
Water consumption
m³/h
3.5

Basic Working Theory:

This kind of machine is accumulator die head, single station, equipped with PLC control system, operating manual in English, pure hydraulic operated, with MOOG 100points parison controller, running stable.

Detailed Images

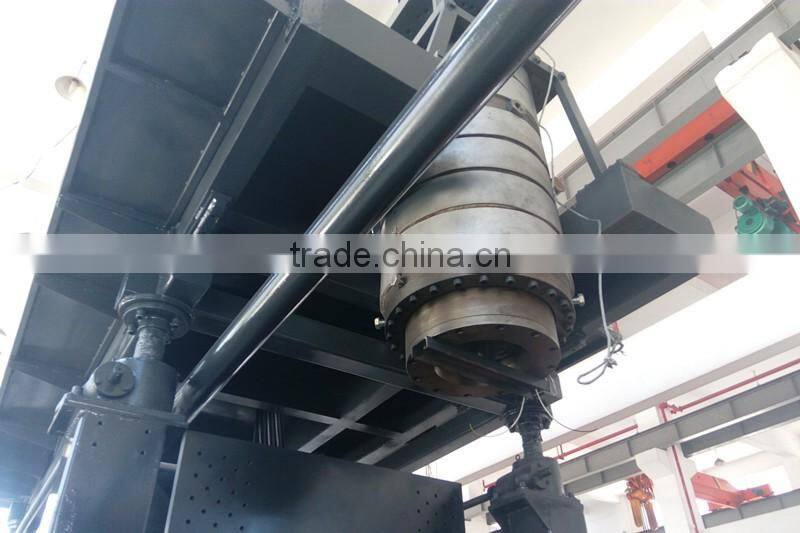

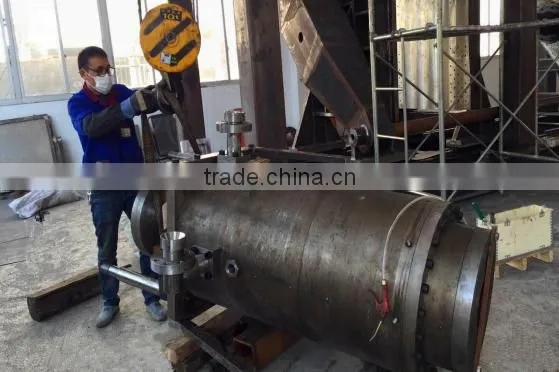

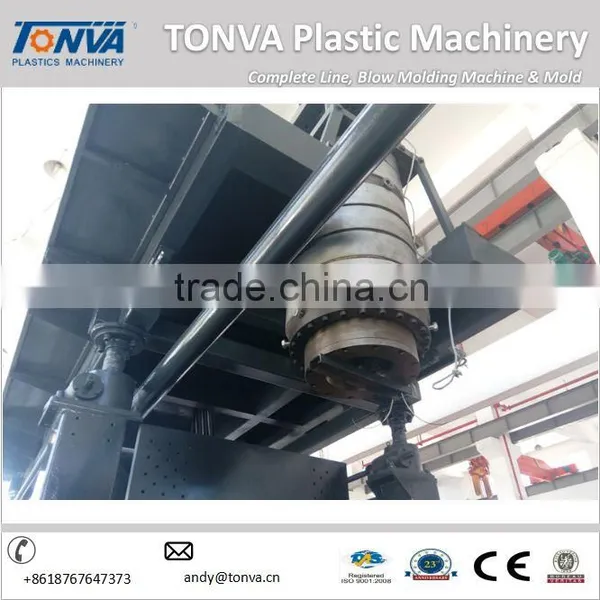

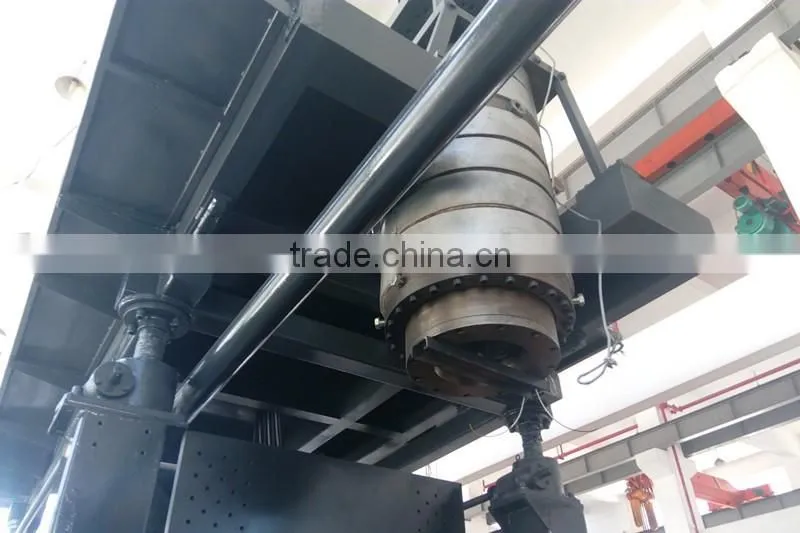

Die-head

The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness,strong corrosion resistance and long operating life after nitrogen treatment.

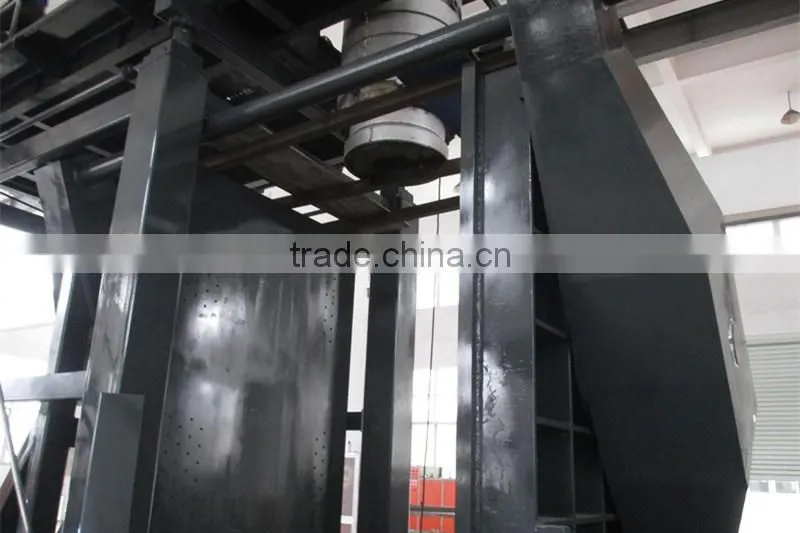

Clapming system

Double tie rod hydraulic clamping,the structure is compact,effective mold size increase 25%.

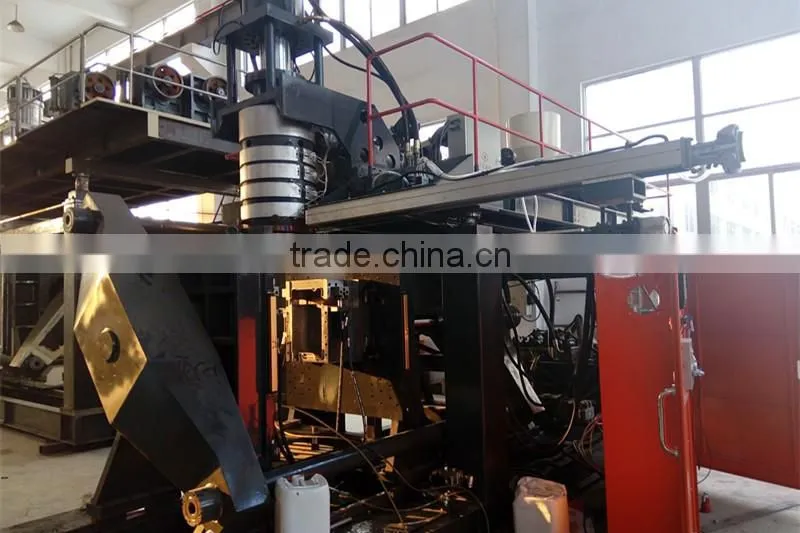

Blowing System

The movements of blowing plasten in vertical level for blowing pin up and down and horizontal level for parison stretch are drive by hydraulic motor.

Moulds Workshop
Main parts brand
Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
