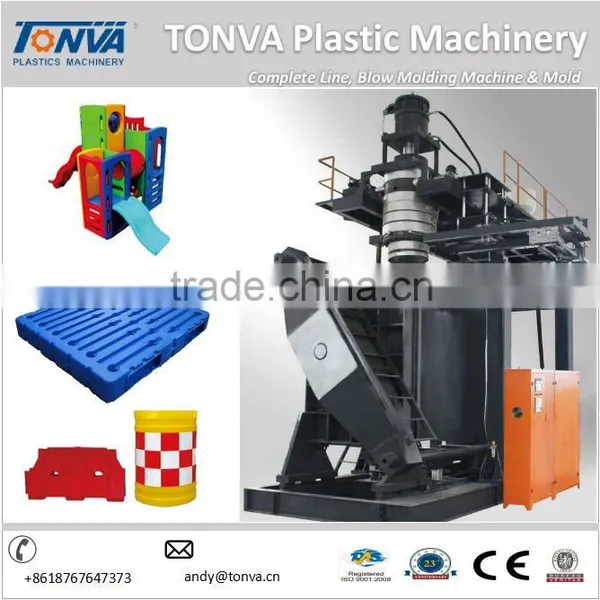

TONVA Special Design for Plastic Pallet Extruder Making Machine

TONVA Special Design for Plastic Pallet Extruder Making Machine thumbnail-1
TONVA Special Design for Plastic Pallet Extruder Making Machine thumbnail-2
TONVA Special Design for Plastic Pallet Extruder Making Machine thumbnail-3
TONVA Special Design for Plastic Pallet Extruder Making Machine thumbnail-4
TONVA Special Design for Plastic Pallet Extruder Making Machine photo-1

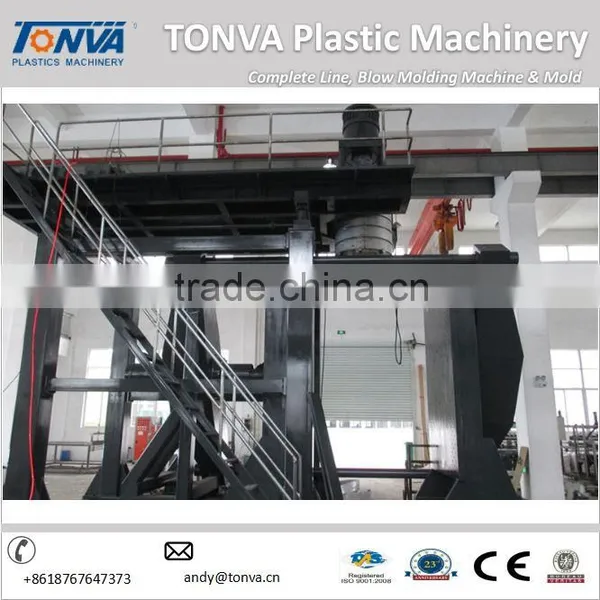

TONVA Special Design for Plastic Pallet Extruder Making Machine photo-2
TONVA Special Design for Plastic Pallet Extruder Making Machine photo-3
TONVA Special Design for Plastic Pallet Extruder Making Machine photo-4
US$ 67000.00 - 67000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Yuhuan Tonva Plastics Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic No
Place of Origin Zhejiang, China
Brand Name TONVA
Model Number TVA-230/100
Voltage 380V/3PH/50HZ
Power(W) 90KW
Dimension(L*W*H) 8*5.5*7.2m
Weight 40000kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

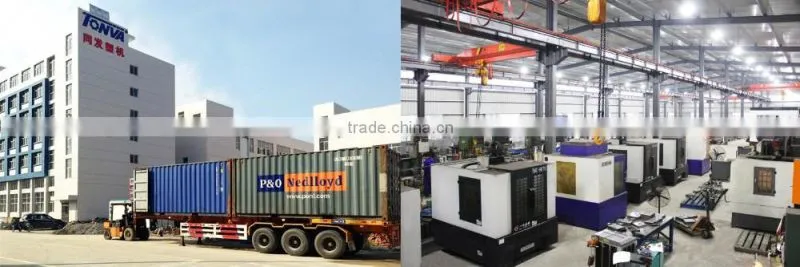

About Us

TONVA PLASTIC MACHINE CO.,LTD was established in 1993,we are specializing in extrusion blow molding machine,pet stretch blow molding machine,molds and auxiliary machine.


Product Description

TVA-230/100 Basic Specification:


Single station,single layer;
Accumulator Die-head;
130mm screw / 90kw motor;
HDPE etc material;
MOOG parison controller 100 points;
Intelligent temperature control system;
Take out robot arm strong type;
Servo motor for saving energy;

TVA-230/100 Technical Parameter
CATEGORY
ITEM
UNIT
TVA-230/100


Basic Specification
Raw Material
--
HDPE etc
Container Capacity Max
L
2300*1000
Dimension
m
8*5.5*7.2
Total Weight
kg
40000




Extrusion System
Diameter of screw
mm
130
Screw L/D ration
L/D
30:1
Screw rotating speed
r/min
10-85
Plasticizing capacity
kg/h
350
Drive motor
kw
90
Heating power
kw
35



Die Head
Die head material
--
38CrMOALA
Accumulator volume
L
40
Accumulator capacity
kg
30
Heating power
kw
35
Number of temperature Regulation zones
pcs
6

Clamping System
Platen size(W*H)
mm
1900*2500
Clamping range
mm
600-1900
Clamping force
kn
1600



Power Consumption
Servo pump power
kw
45
Total power
kw
210
Average power consumption
kw/h
88
Air consumption
m³/min
1
Water consumption
m³/h
3.5

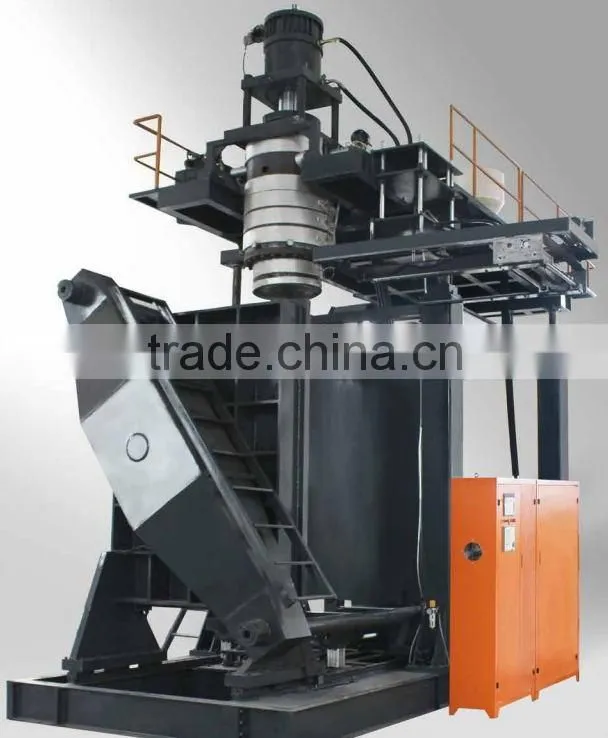

Basic Working Theory:

This kind of machine is accumulator die head, single station, equipped with PLC control system, operating manual in English, pure hydraulic operated, with MOOG 100points parison controller, running stable.

Detailed Images

Die-head

The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness,strong corrosion resistance and long operating life after nitrogen treatment.

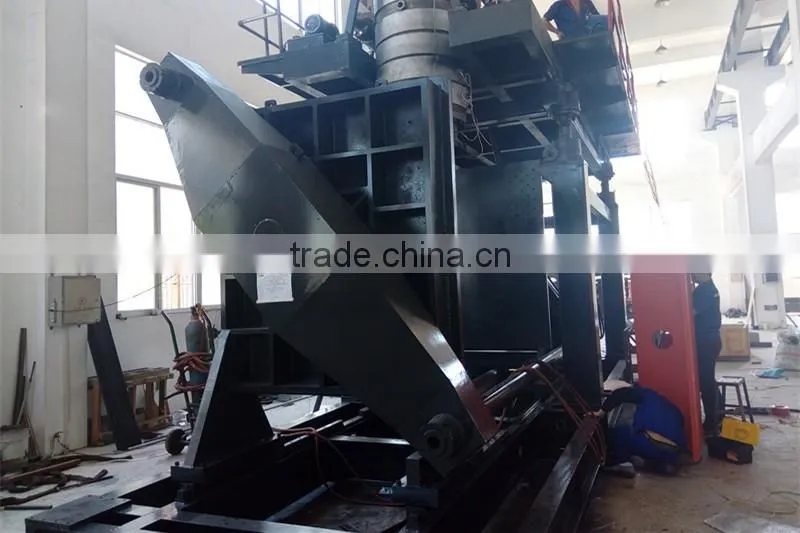

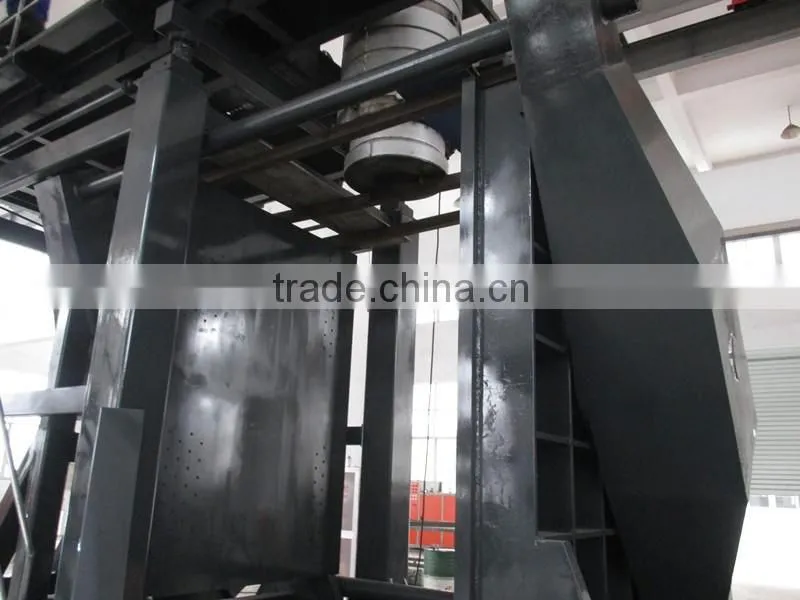

Clapming system

Double tie rod hydraulic clamping,the structure is compact,effective mold size increase 25%.

Blowing System

The movements of blowing platen in vertical level for blowing pin up and down and horizontal level for parison stretch are drive by hydraulic motor.

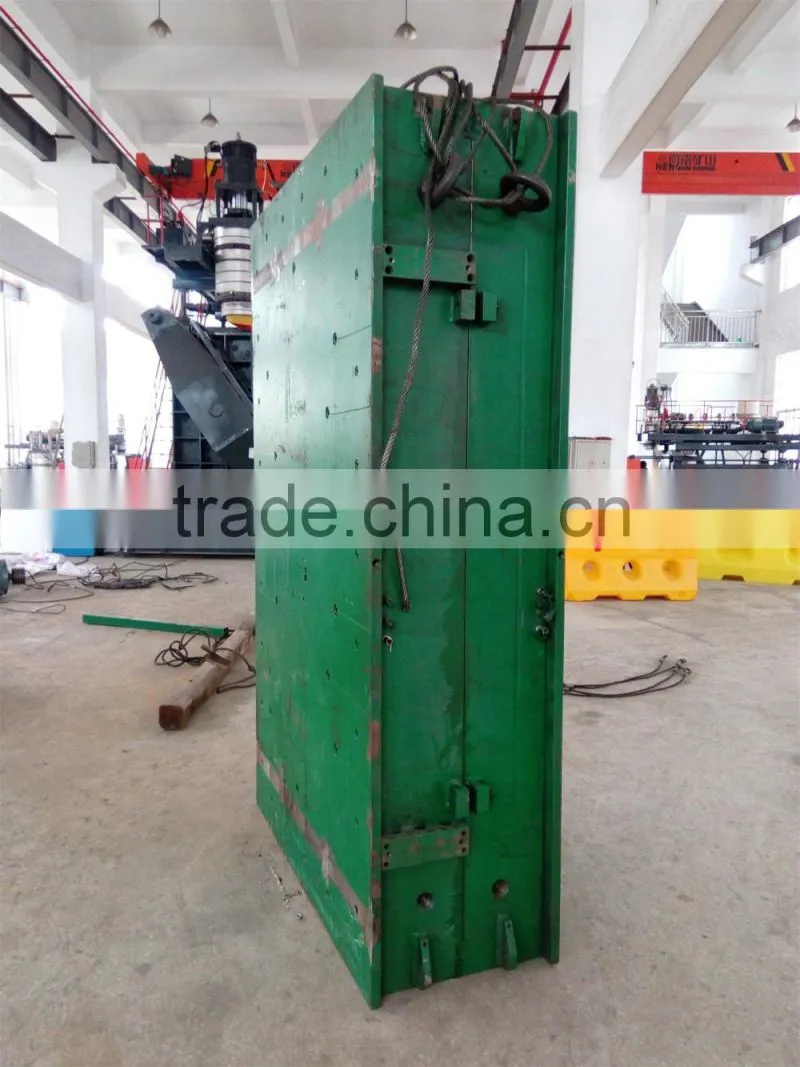

Moulds Workshop
Main Parts Brand
Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
