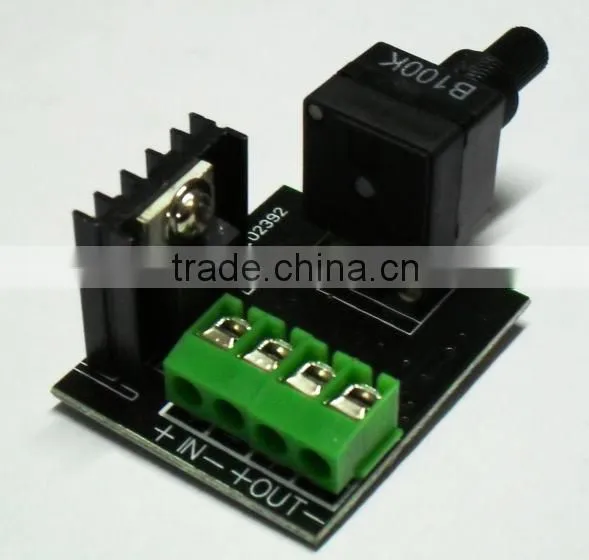

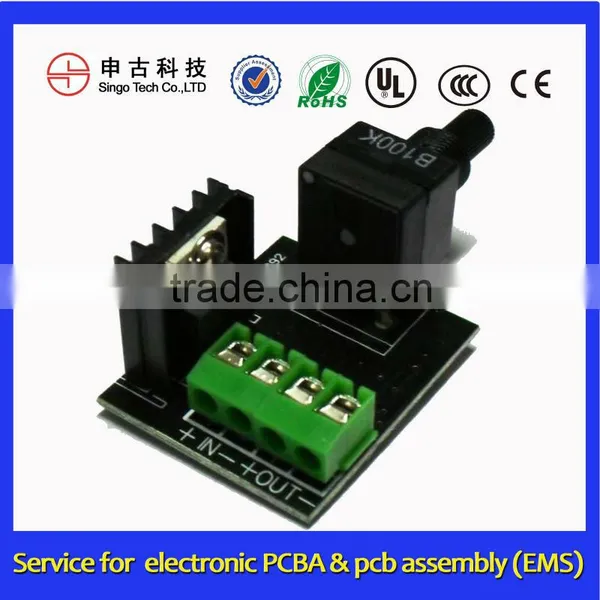

1206 PWM LED dimmer/12V 6A LED dimmer, LED dimmer,light dimmer
Hi customer, pcba OEM/ODM one-stop service will be started from Hangzhou Singo Tech Co.,LTD. Nice to meet you here.
Kindly review Introduction Video to know more about us:
https://img13.fr-trading.com/company_profile/video_introdution.html
Instructions & Specifications: PWM Dimmer, 12 Volt, 6A (72W)
This dimmer is designed to operate LED lighting, such as LED Light Strips and other light sources. It has an integral on/off switch and provides precise dimming of light sources.
To install, use the screw terminals and/or attached input and output wires (shaft is 1/4"). Take care to ensure the dimmer does not contact surrounding metal structure or other wiring.
Specifications
Mode of Operation- Continuously variable, pulse width modulation (PWM).
Supply Voltage - 8 to 20VDC working voltage, up to 30VDC momentary.
Output Voltage Range- From zero VDC to supply voltage
Output Current Range - Up to 6A
Ambient Temp Range- minus 40F (-40C) to 115F (46C), with restrictions as noted
DC-DC Conversion Efficiency - About 98% at full rated current, higher at lower current
Load Types - Optimized for resistive loads
Size–61*37*25(mm)
Weight–20 to 30 gm,
Load Regulation - Generally less than 3% from minimum load to maximum load at all settings
Line Regulation - Directly proportional to supply voltage
Power Dissipation of Drive Circuitry - Less than 0.038W. No load current draw is about 1mA. Nil current used if on/off switch is in Off position.
Accessories- Knob,
1.Company info:

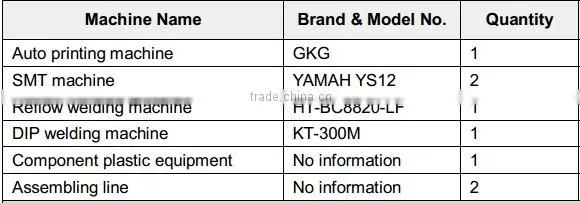

1). Production Machinery:

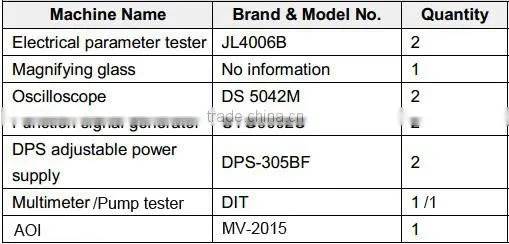

2). Testing Machinery:

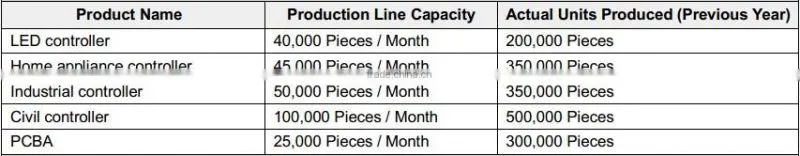

3). Production Capacity:
Click my icon,for online talking. Or sending me an email for inquiry.

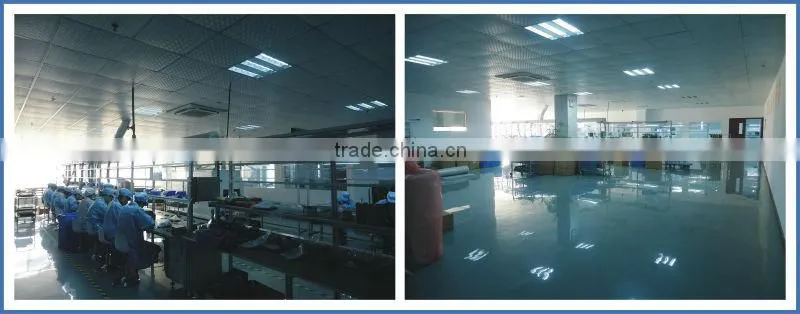

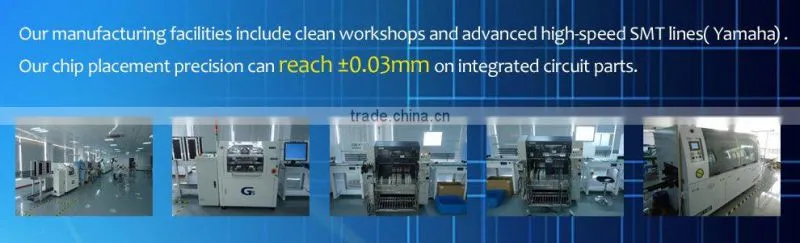

Working shop
Test tool
AOI inspector
