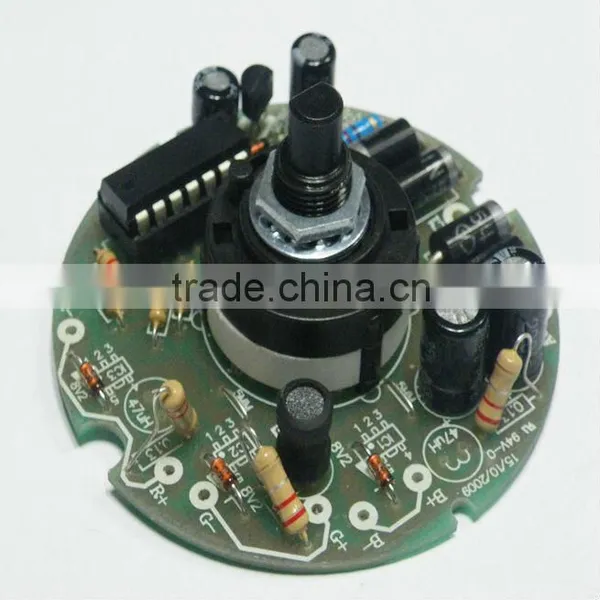

Help Center12V6A PWM LED Dimmer, LED Driver Pcba
Related Products
Welcome to Hangzhou Singo Tech Co.,ltd!
"Whether your business is big or small, HZ Singo has helped 100's of companies just like yours find highly effective, flexible electronics manufacturing solutions...”
Our LED Dimmer series
| Type | Input | Output | Current | Efficiency |
| 24700 Constant-current LED Dimmer | 80-220VAC/50-60HZ | 24V | 700mA | 85%-95% |
| 5232 Constant-current LED Dimmer | 110-220VAC/50-60HZ | 52V | 3.2A | 85%-95% |
| 1202 PWM LED Dimmer | 12VDC/2.5A | 12V | 2A | 85%-95% |
| 1204 PWM LED Dimmer | 12VDC/4.5A | 12V | 4A | 85%-95% |
| 1206 PWM LED Dimmer | 12VDC/6.5A | 12V | 6A | 85%-95% |
| 2402 PWM LED Dimmer | 24VDC/2.5A | 24V | 2A | 85-95% |
| 2404 PWM LED Dimmer | 24VDC/4.5A | 24V | 4A | 85%-95% |
| 2406 PWM LED Dimmer | 24VDC/6.5A | 24V | 6A | 85%-95% |
| 2408 PWM LED Dimmer | 24VDC/8.5A | 24V | 8A | 85%-95% |
| 7204 PWM LED Dimmer | 72VDC/4.5A | 72V | 4A | 85%-95% |
| Lamp Dimmer | 220V | 220V | 85%-95% |
If you have other specification requirement, please kindly contact me, we can design LED dimmer for you , also assembly is ok for us.
Our PCB assembly capabilities
-
PCB Surface Mount Technology
01005, 0201, CCGA, COB, MCM, MEM, BGA & uBGA,
Chip Scale Package (CSP),
Fine pitch high pin count press fit connectors,
Flip chip SOIC, TSSOP - Pin Through Hole (PTH)
- Wave solder
- Selective soldering
- Selective conformal coating
- Aqueous cleaning
- Lead-free PCB manufacturing
- PCB coating
- PCB Design Service
Equipment
SMT (Surface Mount Technology)
Four complete SMT lines comprised of the following machines:
- Quantity 4 – MYDATA MY15E
- MYDATA MY12
- Quantity 2 – UNIVERSAL-4796 HSP
- UNIVERSAL-4797L HSP
- Quantity 3 EKRA- X4
- EKRA- X5
- TRITON IV MIL SMT (aqueous cleaner)
Through hole
- Universal TH- Radial
- Universal TH- VCD-Sequencer
- Universal TH- Dip
Quality Assurance & Quality Control
- Vantage S22™ - Post-Reflow AOI System
- Marantz - NSPECFV18
How do we prevent ESD damage?
(Electrostatic Discharge)
- We oversee ESD awareness and certification training for all personnel working or have access to an ESD sensitive area.
- Maintain work instructions, drawings, and other documentation for ESD cautions, markings, and precautionary procedures.
- Audit and certify ESD-protected areas on a regular basis.
- Ensure that access to protected areas is limited to persons who have completed ESD training
PCB fabrication/design & development stages:
1. Requirements & Specifications
2. Preliminary Design Review (PDR)
3. Critical PCB Design Review (CDR)
4. Alpha PCB Prototype Phase
5. PCB design service: Beta Prototype Phase
6. Production Readiness
Quality control&inspection:
Inspection tools:
AOI inspection machine:
Work shop pictures:

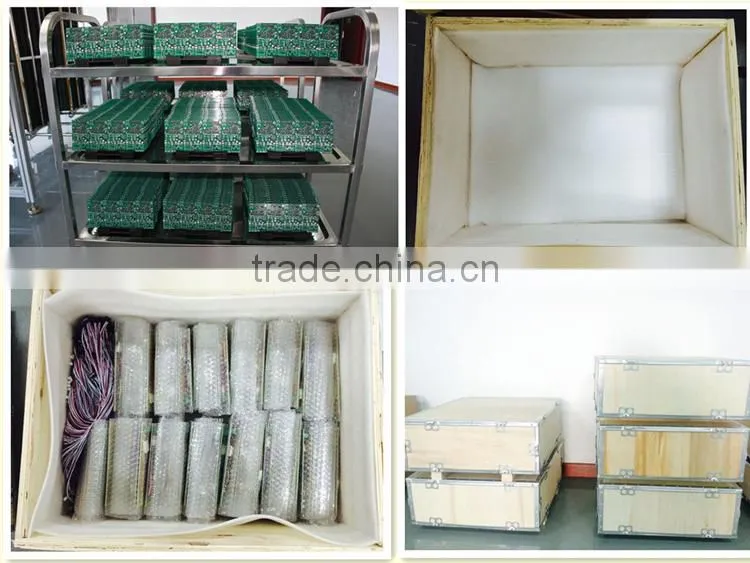

Packing:
Certification:
Even only one piece, we will care. Looking forward to provide service for you...
