Lawn LED Light Pcba/ LED Illumination

Name: Lawn LED Light Pcba/ LED Illumination
Brand: Singo
SKU: 118783393

US$ 1 - 50 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Singo

Model Number:

PCBA

Hangzhou Singo Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Singo

Model Number PCBA

Base Material FR4

Copper Thickness 1 OZ

Board Thickness 1.6mm

Min. Hole Size 8mil

Min. Line Width 5mil

Min. Line Spacing 5mil

Surface Finishing according to your request

Welcome to Hangzhou Singo Tech Co.Ltd

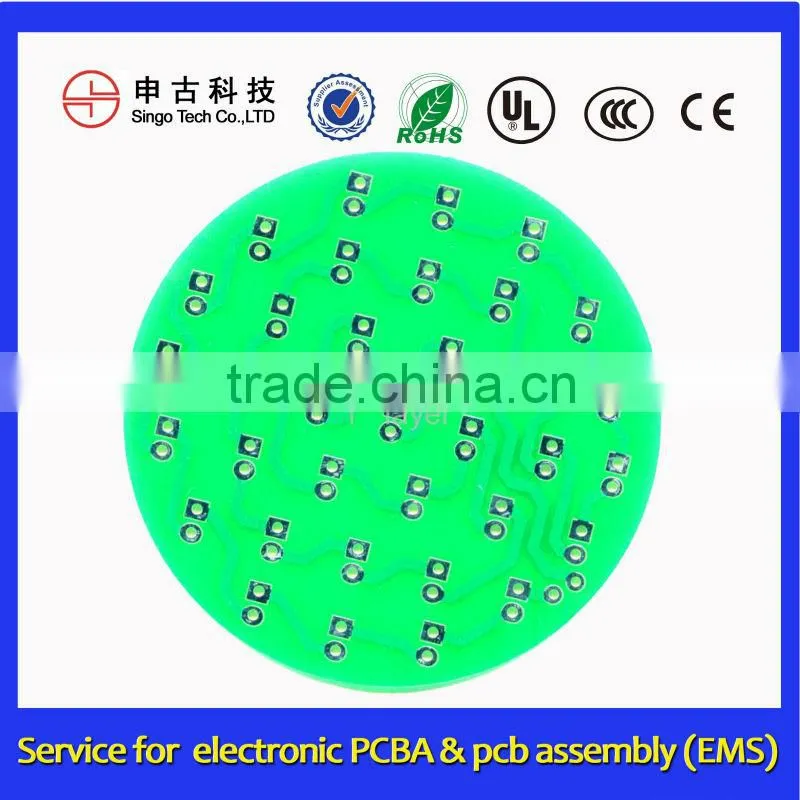

Lawn LED light pcba/ LED illumination

Our Mnnufacturing facilitied include clean workshop and advanced high-spped SMT lines(Yamaha);

Our chip placement precision can reach ±0.03MM on integrated circuit part;

SMT-AOI testing.

Kindly review our website to know more about us:

https://img13.fr-trading.com/

1.Introduction of our craft capability :

Specifications	Details
Base Material	FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon,Teflon,Taconic, Rogers, Polyimide*, Kapton,Dupont
Fil Thickness ( in inches)	0.062”, 0.080”, 0.093”, 0.125”, 0.220”, 0.047”, 0.031”, 0.020”, 0.005"
Layer count	1 to 26 Layers
IPC Class	Class II, Class III , Class 1
Annular Ring	5 mil/side or Greater (Min. Design)
Finish Plating	Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other
Copper Weight	0.5OZ-7OZ
Trace/Space Width	3 Mils or Greater
Drill Clearance	0.1mm(laser drilling)
Plated Slots	0.036 or Greater
Smallest Hole (Finished)	0.1mm or Greater
Gold Fingers	1 to 4 Edge (30 to 50 Micron Gold)
SMD Pitch	0.080” - 0.020” - 0.010”
Soldermask Type	LPI Glossy, LPI-Matte, SR1000
CNC Route Point	Any
Minimum Route Width	0.031”
Scoring	Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*
Body Gold	HARD, IMMERSION (up to 50 MICRON GOLD)
Data File Format	Gerber 274x with embedder aperture
Fab. Drawing Format	DXF, HPGL, DWG, PDF, Gerber
E.T Testing	Flying Probe, Single Sided, 1up Plate, Clampshell, Net List
Counter Sink / Counter Bore	Availiable up to 0.250 Diameter
