Specifications
Three phase panel meter1. monitor grid power quality
2. V.I.PF,kWh,instantenuous power
3. reset function through IR
Three Phase Panel meter
As a professional manufacturer, YTL designs and produces electronic energy meters(Panel meter) which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic energy meters (Panel meter) , concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three phase Panel meter | |
Installation type |
Inserting mounted | |
Module No. |
D549001 (panel meter) | |
Brand |
YTL (panel meter) | |
Rated Current |
5(50)A | |
Reference Voltage |
220V 230V | |
Frequence |
50/60HZ | |
Display Mode |
LCD | |
Accuracy |
1.0 | |
Impulse Constant |
10000imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
commect to external CT | |
Communication&Protocol |
RS485 | |
Power Consumption |
2W | |
Material of meter case |
ABS | |
Size |
48*48*50mm | |
Certificate |
ISO9001 | |
Standard |
IEC62052-11,IEC62053-21 | |
2.Functions and characteristic | ||
A. It can be mounted on many kinds of machines and deveices and used for measuring and showing the operating time, consumed power, voltage, current & power in an alternate display and synchronous display on the same LCD screen | ||
B. It could memorize all the data when power off, then the whole data can continue to running on and to be shown when power on again. | ||
C. could control and check how much energy consumed in your hand. | ||
D. this kWh meter has RESET function. The customers can reset the consumed power through the infrared light controller outside. | ||

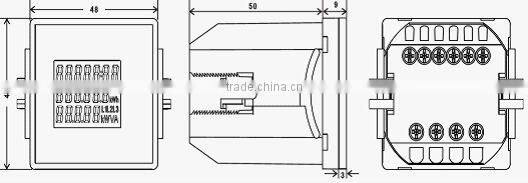

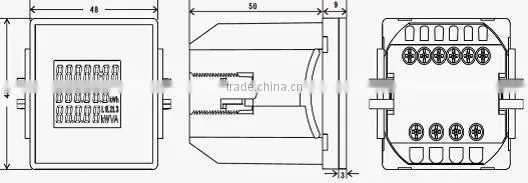

3.Outer and mount dimension: | ||
|
| ||
4.Wiring diagram: | ||
|
| ||
5.Transaction Information | ||
MOQ |
300pcs | |
Sea Port |
Shanghai | |
Payment Terms |
T/T,L/C | |
Supply Ability |
50000pcs/Month | |
Delivery time |
20-25 days after receive prepayment | |
Normal Package |
common white box for panel meter | |
If you are interested in our three phase panel meter, pls feel free to contact us at any time.
