Specifications
single phase digital power meter.1-reset function
2-memorize all the data when power off
3-Display many parameters
4-CE
Single phase digital power meter
As a professional manufacturer, YTL designs and produces digital power meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications
YTL is devoted to develop and design all types of digital power meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Single phase digital power meter | |
Installation type |
panel mounted | |
Module No. |
D149001 ( digital power meter ) | |
Brand |
YTL ( digital power meter ) | |
Rated Current |
5(16)A | |
Reference Voltage |
220V | |
Frequence |
50-60Hz | |
Display Mode |
LCD | |
Accuracy |
1.0 | |
Impulse Constant |
10000imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
direct mode | |
|
Communication& Protocol |
/ | |
Power Consumption |
2VA | |
Material of meter case |
PC | |
Size |
48*48*50mm | |
Certificate |
CE | |
Standard |
IEC62052-11 IEC62053-21 | |
2.Functions and characteristic | ||
A. This Timer/Time/kWh meter is suitable for Panel mounted, whose dimension is only 48mm*48mm | ||
B. It can be mounted on many kinds of machines and deveices and used for measuring and showing the operating time, consumed power, voltage, current & power in an alternate display and synchronous display on the same LCD screen. | ||
C. it could memorize all the data when power off, then the whole data can continue to running on and to be shown when power on again.You could control and check how much energy consumed in your hand. | ||
… | ||

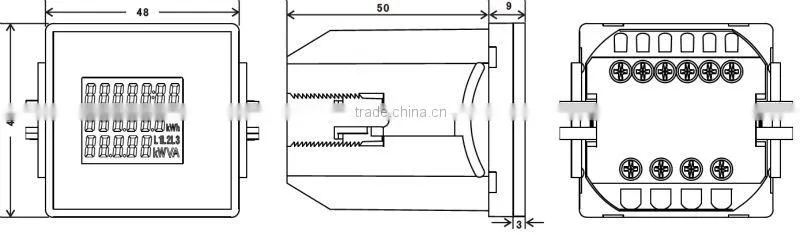

3.Outer and mount dimension: | ||
| | ||

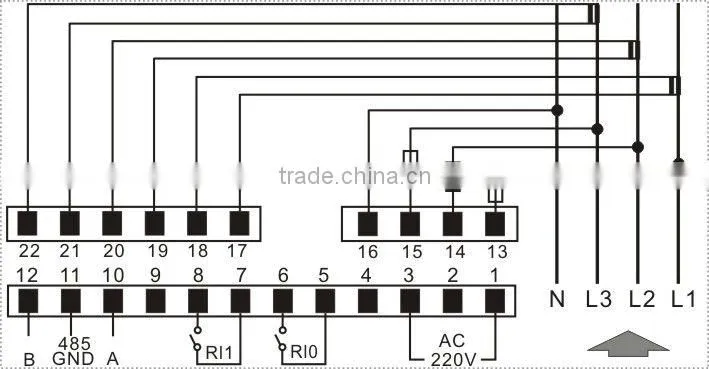

4.Wiring diagram: | ||
|
| ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sea Port |
Shanghai | |
Payment Terms |
TT prepayment | |
Supply Ability |
50,000pcs per month | |
Delivery time |
25 days | |
Normal Package |
white or colorful box (power meter) | |
