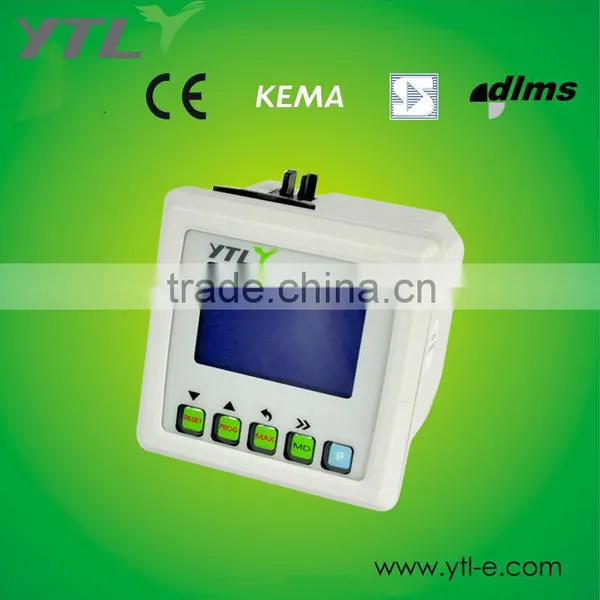

Three Phase Panel-Mounted Energy Meter

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YTL

Model Number:

D543001

Zhejiang Yongtailong Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YTL

Model Number D543001

Display Type Digital Only

Phase Three Phase

Measuring Energy Range 1.5(6)A

Accuracy Class 1.0

Output Voltage 250VAC

Operating Temperature -10--60

Dimensions 72*72*80mm

Specifications

1. Compact design
2. monitor power line quality
3. display various values for analysis
4. low cost

1.Product Details
Product Name		THREE PHASE PANEL-MOUNTED ENERGY METER
Installation type		plug-in
Module No.		D543001( energy meter )
Brand		YTL( energy meter )
Rated Current		1.5(6)A
Reference Voltage		250VAC
Frequence		50-60HZ
Display Mode		LCD
Accuracy		1.0
Impulse Constant		10000imp/kWh
Start Current		0.004Ib
Connection Mode		CT type
Communication& Protocol		RS485 MODBUS RTU
Power Consumption		≤8VA ≤0.4Wh
Material of meter case		PC
Size		727280mm
Certificate		CE MID ISO9001
Standard		CE
2.Functions and characteristic
A.RS485 communication
B. Harmonic distorsion (the v and I),neutral current,true RMS, over 55 parameters,4 quadrant measures, 2 pulse or alarm outputs, programmable or contacts,
C.Display many parameters, like date, time, current ,voltage,frequency, power factor etc
D Accurately measure forward and reverse energy.
3.Outer and mount dimension:

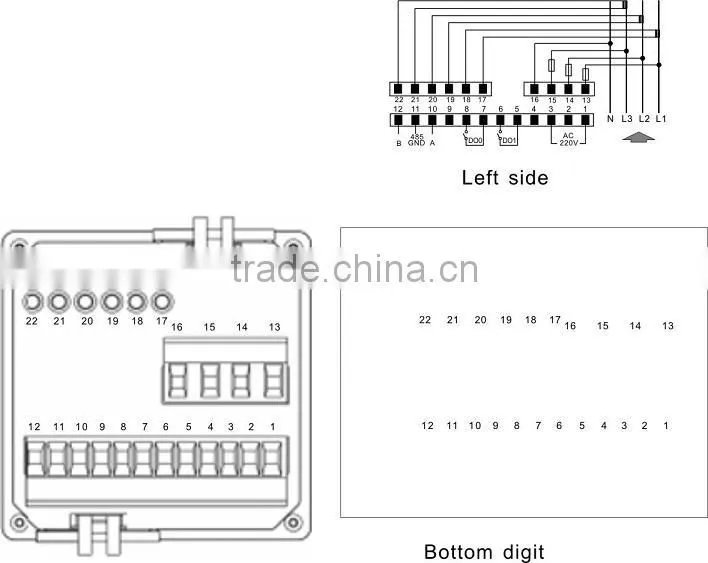

4.Wiring diagram:

5.Transaction Information
MOQ	500pcs
Sea Port	Shanghai
Payment Terms	TT LC
Supply Ability	500,000pcs per month
Delivery time	20-25 days
Normal Package
