Medium Voltage Armored XLPE Cable
- Shenzhen
- T/T
You May Like
-
0.6/1KV PVC Insulated Armoured Wire Cable
-
Medium Voltage Xlpe Power Cable Electric Cable Armoured
-
Copper Conductor XLPE Insulated Steel Wire Armored Cable
-
0.6/1kv Power Cable Steel Armored Cable
-
4c Cable Power 0.6/1kv Power Cable Steel Armored Cable
-
4c Power Cable 0.6/1kv Low Voltage Power Cable Steel Armored Cable
Product Details
| Place of Origin | Guangdong, China | Brand Name | Bendakang | |
| Model Number | YJV22, YJV32 | Insulation Material | XLPE | |
| Type | Medium Voltage | Application | Other, transmission and distribution lines | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

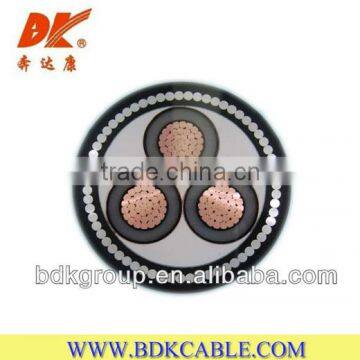

Medium voltage armored XLPE cable. It applies to the transmission and distribution lines with rated voltage from 3.6/6KV to 26/35KV, to be laid directly in ground, outdoors, indoors and in cable ducts.
General Information:
Rated Voltage : 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 18/20KV, 18/30KV, 21/35KV, 26/35KV
Range of Nominal cross section: Single core:25 mm2 ~ 630 mm2 ; 3 cores: 25 mm2 ~ 400 mm2
Standard : IEC60502, BS6622, VDE0276, GB/T12706
Conductor: Class 2 annealed copper strands
Core shield: semi-conducting compound + copper tape metallic screen
Insulation: XLPE
Armore: 1 core: ATA, AWA, 3 cores: STA, SWA
Sheath: PVC
Max. Operating Temperature : 90℃, can be 110℃ as per requirement
Remark : The cable can be of flame retardance, fire resistance and environment friendly or other property
