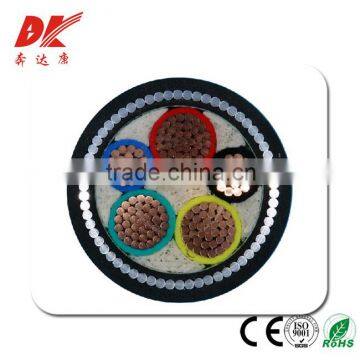

0.6/1KV PVC SWA Power Cable Steel Wire Armoured Power Cable

0.6/1KV PVC SWA power cable steel wire armoured power cable . It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.

General Information:
Rated Voltage :   0.6/1KV

Cores :  1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E

Range of Nominal cross section:   1.5 mm2 ~ 630 mm2

Standard :   IEC60502, BS6346, GB/T12706

Conductor:  Class 1/2 annealed bare copper solid or strands

Insulation: PVC

Armore: SWA

Sheath: PVC

Max. Operating Temperature :  70℃, can be 90℃ and 110℃ as per requirement

Remark :  The cable can be of flame retardance, fire resistance and environment friendly or other property.

Main manufacturing procedure:

1. Copper wire drawing and annealing
2. Copper wire stranding
3. PVC insulating extruding

4. Cores twisting

5. Inner PVC sheath extruding

6. Armore winding

7. Outer PVC sheath extruding and labeling
8. Spooling

COMPANY OVERVIEW:

PRODUCTION WORKSHOP:

CERTIFICATES:

MAIN QUALITY INSPECTION EQUIPMENT

Shenzhen Bendakang Cables Holding Co., Ltd. is the leading manufacturer of Electric and Communication Cables in South China. We have got the ISO9001, ISO14001 and OHSMS18001 certificates,supplying and exporting all kinds of Electric Cables for over 15 years. Our company are well organized, producing and inspecting our products seriously according to national standard GB and international standards, such as IEC, BS, CE, AS/NZS and other standards.

Why Choose Us ?
More competitive price and standard quality.
Experienced engineering team work, latest technological machinery and new tech available.
Market-oriented management, OEM,OBM and ODM acceptable.
Standardized Quality Control system and operation.
