Asphalt Emulsifier,hot Sales Emulsified Asphalt Plant Configuration Details From Manufacturer
US$ 25,000 - 26,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Longda
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao;Tianjin;Alataw Pass
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Emulsified Asphalt Plant,asphalt Emulsification Machine for SalesUS$ 25,000 - 26,000MOQ: 1 Set -
Model ZXGR-8 Emulsified Asphalt Plant Details,Asphalt Batching Plant Cold Mix Asphalt PlantUS$ 25,000 - 32,000MOQ: 1 Set
-
2015 Hot Sales Self Design Emulsified Asphalt PlantUS$ 25,000 - 26,000MOQ: 1 Set
-
Asphalt Thermal Regeneration EquipmentUS$ 200,000 - 400,000MOQ: 1 Set
-
Asphalt Thermal Regeneration Equipment/machinery MachineUS$ 200,000 - 400,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Longda
Model Number
ZXGR-6
Voltage
44L/450V
Power(W)
45KW
Dimension(L*W*H)
7000*2200*2250mm
Weight
7 Tons
Certification
ISO9001;SGS
Warranty
13months
After-sales Service Provided
Engineers available to service machinery overseas

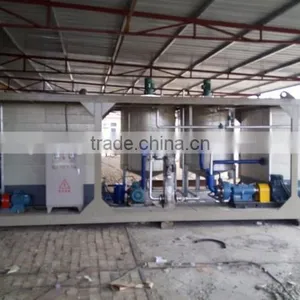

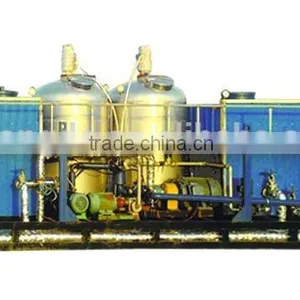

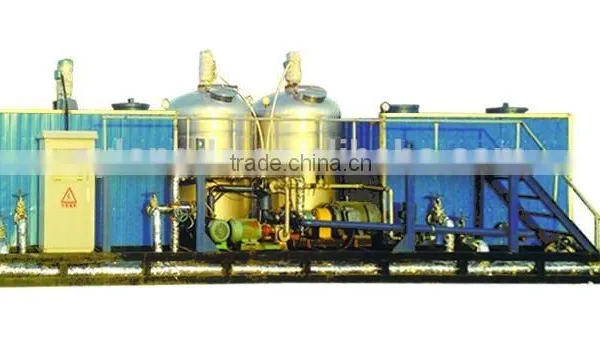

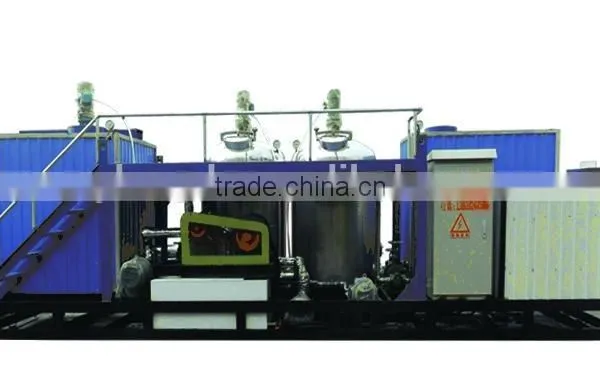

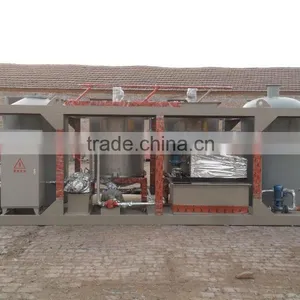

ZXGR-6 Emulsified asphalt plant, asphalt emulsification machine
configuration list
1.Specification:
1 set Equipment Assembly platform(L*W*H:7000*2200*2250mm)Channel steel frame welding knot(Can be installed into a container sealed)
3m3Transfer heating of asphalt tank:1set
- 1).Steel plate welding junction:material Q235
- 2).built-in seamless tubes:3.5mm, diameter:φ51
- 3).Glass joints of rock wool insulation, exterior tile cover
- 4).1set 3kw mixer (Axis wings)
3m3 water heating tank:1set
- 1).Steel plate welding junction:material Q235
- 2).built-in coil:3.5mm, diameter:φ51
- 3).Glass joints of rock wool insulation, exterior tile cover
2sets 1.5m3 Emulsion Preparation tank
- 1).316L Stainless steel welding knot
- 2).closed pressure vessel head
- 3).Sealed manholes
- 4).1.5kw mixer(with Stainless Steel Axis Wing)
1 set Dandong Blue Sky Pump Bitumen emulsifying machine
- 1).model:RHJ-6
- 2).flow:6 m3/h
- 3).speed:2930r/min
- 4).motor power:30KW,model:Y/YB160M2-2
- 5).temper≤300℃
- 6).center materials:306L
1 set asphalt YCB-G
- 1).Model:LB-6,pressure:0.6mpa
- 2).flow:6 m3/h
- 3).mated motor:Model 5.5kw-6,frequency conversion control
1 set lotion pump
- 1).Model:YCB7.2/2.5
- 2).flow:8L/min
- 3).pressure:2.5MPA power:5.5kw
- 4).speed:1450r/min permitted suction vacuum lift:3m
- 5).material:316L
1 set hot water pump
- 1).Model:SGR-15
- 2).Dia:φ50
- 3).flow:10mm3
Valve:
- 1).4 sets DZ40 High temperature and gate valves(WCB,can be beared pressure 16kg)
- 2).2 sets DZ25 High temperature and gate valves(WCB,can be beared pressure 16kg)
- 3).2 pcses1 - inch - diameter stainless steel ball valve
- 2 pcses1 - inch diameter disc valve ball valve
- 4).1pcs 1 inch Stainless Steel Check Valves
1 set Heat exchanger of finished products
pipeline system
- 1).Heat - Conducting oil state line:φ5T
- 2).asphalt pipe:φ5T,φ76,Jacket insulation type
- 3).1 set Galvanized water pipes:φ25
- 4).1 set Stainless steel pipes:φ25
1 set controller:
- 1). Air switch:CAM1-225A
- 2).breaker:DZ47-63/32A DZ47-63/61A DZ47-100/100A
- 3).AC contactor:CJX2-6511 CJX2-3201 CJX2-1210
- 4).overheat switch:JR36-63/45A JR36-20/7.2A
- 5).voltmeter:44L/450V
- 6).ammeter:44L1/150/5
- 7).mutual inductor:BH0.66/1540/5
- 8).inverter:S3000/7.5kw S3000/5.5KW
- 9).button:LAY38/11D LAY38/11N LAY3
- 10).Zero rows:TD10-6
1 set Solid Content Detection System
Extra:
- 1).2 pcs HTF the main valve:DZ50
2.Package & Shipment:
package:Nude package
shipment:15-20 days after got your deposit or workable LC
3.FAQ:
| 1) Are you the facotry? |
| Yes, we are the share stock holder of the factory, this means we control the quality and we only ship cargo which produced by ourselves, the quality can be stable and the price can be competitive, please don't worry |
| (2) Can we visit your company and your factory? |
| Yes, we welcome all the customers to visit our company and factory to enhance the realtionship |
| (3) Do you accept the L/C? |
| Yes, we can accept L/C |
| (4) Does your products can be registered in our country? |
| Yes, we can provide you the necessary documents for your registration in your country and comply to your authority regulations |
| (5) If I want to be your distributor, does there any marketing support? |
| Yes, if your sales quantity can reach a good amount, we can offer you the bonus, brochures, attend your exhibition, makreting gift etc., all the details can be negotiated by both sides,we have much experience on it |
| (6) Can I use my own design package? |
| Yes, we can offer the package which printed based on your design |
4.Contact us:
QQ: 3300701547 Tel:86-377-62773555
Skype:rebecca.liang6 Phone:86-18837707892
NOTE:PARTS OF MACHINE CAN BE CUSTOMIZED AS CUSTOMERS' REQUEST
