Model ZXGR-8 Emulsified asphalt plant details,Asphalt batching plant cold mix asphalt plant
- 30 Set / Sets per Month
- Qingdao;Tianjin Alataw Pass etc.
- T/T
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- China Original Road Construction Machinery TM1000 Asphalt Mixing Plant Price on Sale
- High Configuration Computer Control 120T/H Mobile Concrete Hot Drum Mix Plant
- Stationary Building Machine Equipment 160T/H Asphalt mixing plant LB2000
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Longda |
Model Number: | ZXGR-8 | Voltage: | 44L/450V | Power(W): | 60kw |
Dimension(L*W*H): | 7000*2200*1800mm | Weight: | 20t | Certification: | ISO9001;SGS |
Warranty: | 13months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

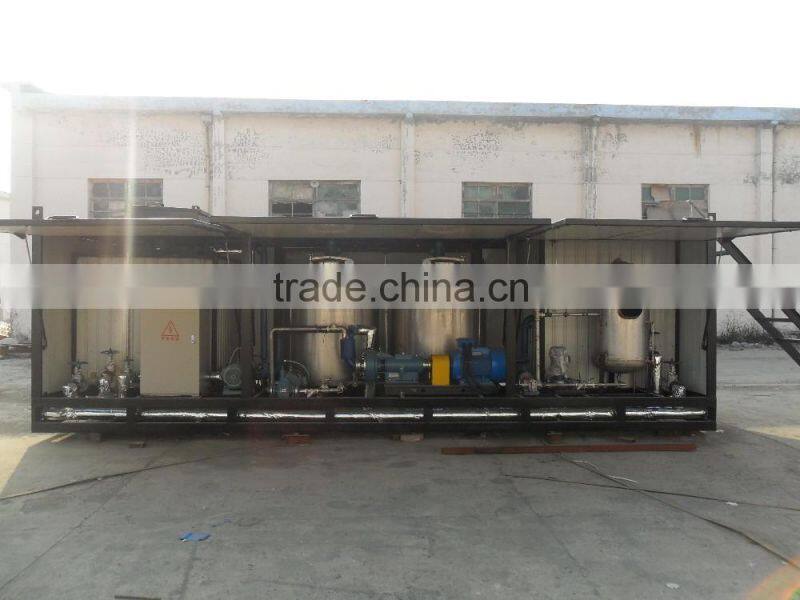

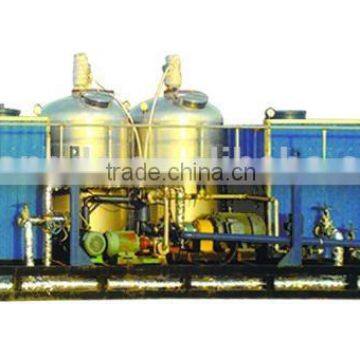

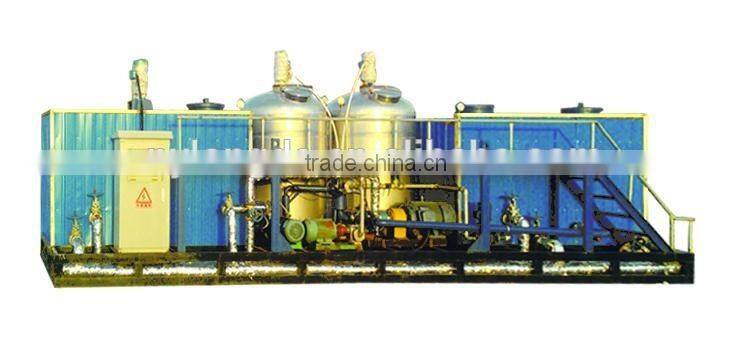

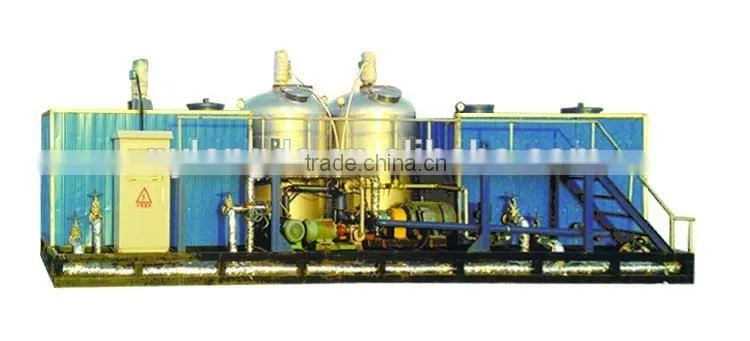

Model ZXGR-8 Emulsified asphalt plant configuration list
1.Specification
1 set Equipment Assembly platform(L*W*H:7000*2200*1800mm)Channel steel frame welding knot
3m3Transfer heating of asphalt tank:1set
1).Steel plate welding junction:material Q235
2).built-in seamless tubes:3.5mm, diameter:φ51
3).Glass joints of rock wool insulation, exterior tile cover
4).1set 3kw mixer (Axis wings)
3m3 water heating tank:1set
1).Steel plate welding junction:material Q235
2).built-in coil:3.5mm, diameter:φ51
3).Glass joints of rock wool insulation, exterior tile cover
2sets 1.5m3 Emulsion Preparation tank
1).316L Stainless steel welding knot
2).closed pressure vessel head
3).Sealed manholes
4).1.5kw mixer(with Stainless Steel Axis Wing)
1 set Dandong Blue Sky Pump Bitumen emulsifying machine
1).model:RHJ-10
2).flow:6 m3/h
3).speed:2930r/min
4).motor power:30KW,model:Y/YB160M2-2
5).temper≤300℃
6).center materials:306L
1 set asphalt YCB-G
1).Model:LB-6,pressure:0.6mpa
2).flow:6 m3/h
3).mated motor:Model 5.5kw-6,frequency conversion control
1 set lotion pump
1).Model:YCB7.2/2.5
2).flow:8L/min
3).pressure:2.5MPA power:5.5kw
4).speed:1450r/min permitted suction vacuum lift:3m
1 set hot water pump
1).Model:SGR-15
2).Dia:φ50
3).flow:10mm3
1 set 0.6m3 finished carton
1).3.75mm sealed Steel plate welding junction;
2).heat exchange facility inside
3).1 set finished slurry pump,matched motor 2.2KW
Valve:
1).4 sets DZ40 High temperature and gate valves(WCB,can be beared pressure 16kg)
2).2 sets DZ25 High temperature and gate valves(WCB,can be beared pressure 16kg)
3).2 pcses1 - inch - diameter stainless steel ball valve
2 pcses1 - inch diameter disc valve ball valve
4).1pcs 1 inch Stainless Steel Check Valves
1 set Heat exchanger of finished products
pipeline system
1).Heat - Conducting oil state line:φ5T
2).asphalt pipe:φ5T,φ76,Jacket insulation type
3).1 set Galvanized water pipes:φ25
4).1 set Stainless steel pipes:φ25
1 set controller:
1). Air switch:CAM1-225A
2).breaker:DZ47-63/32A DZ47-63/61A DZ47-100/100A
3).AC contactor:CJX2-6511 CJX2-3201 CJX2-1210
4).overheat switch:JR36-63/45A JR36-20/7.2A
5).voltmeter:44L/450V
6).ammeter:44L1/150/5
7).mutual inductor:BH0.66/1540/5
8).inverter:S3000/7.5kw S3000/5.5KW
9).button:LAY38/11D LAY38/11N LAY3
10).Zero rows:TD10-6
1 set Solid Content Detection System
Optional automatic control system
etc.
2.Package & Shipment:
package:Nude package
shipment:15-20 days after got your deposit or workable LC
3.Contact us:
QQ: 3300701547 Tel:86-377-62773555
Skype:rebecca.liang6 Phone:86-18837707892
NOTE:PARTS OF MACHINE CAN BE CUSTOMIZED AS CUSTOMERS' REQUEST
