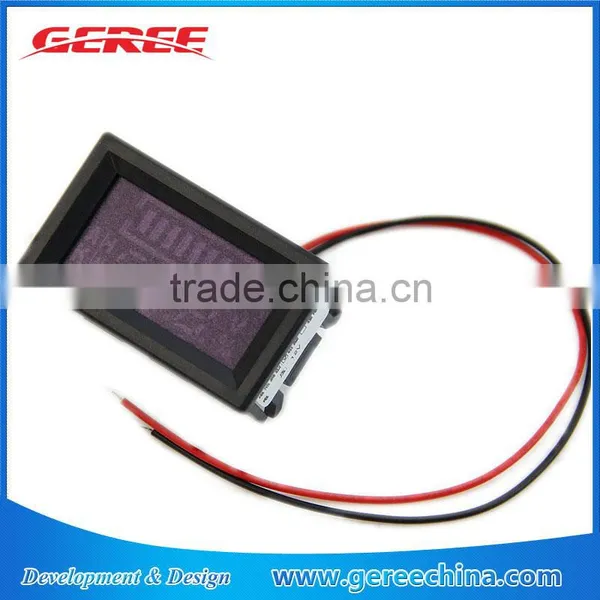

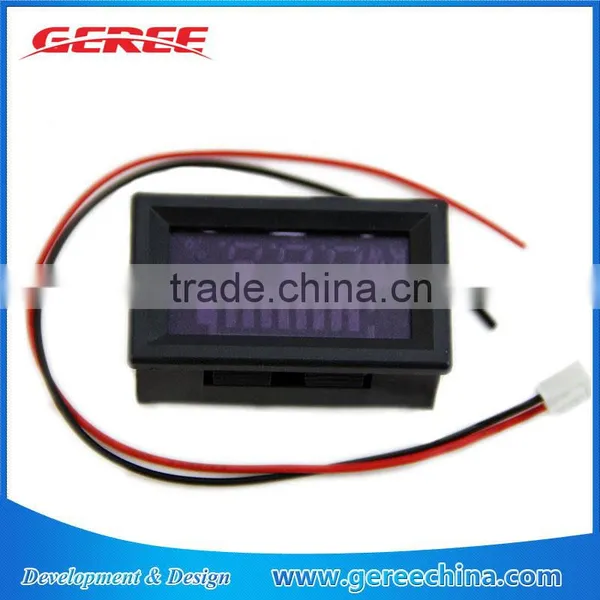

Help CenterHot Selling 12-96v Digital Acid Lead/Lithium/NiMH Battery Capacity Indicator Tester and Voltmeter/voltage Monitor
Related Products
-
12V or 24V LED Digital Lead Acid Battery Capacity Indicator/tester Gauge Meter Tri-colors RectangleUS$ 7.4 - 10.6MOQ: 10 Pieces -
22.5cm Digital Portable Cooking Food Probe Meat Kitchen BBQ Selectable Sensor ThermometerUS$ 1.4 - 2.4MOQ: 20 Pieces
-
Hot Selling New LCD Punch Digital Portable Counter 5 Digit Proximity Switch and Strong MagneticUS$ 4 - 5.2MOQ: 20 Pieces
-
Hot Selling DC Meter Voltage Current Time Power Watt Capacity Panel Meter, Car Battery TesterUS$ 6.9 - 9.5MOQ: 10 Pieces
-
12V Lithium Battery Capacity Tester Display Panel Electric Power Indicator BoardUS$ 1.3 - 1.9MOQ: 20 Pieces
Description:
Name: battery capacity LED Tester voltmeter
Work Current:< 5-15mA (with backlight)
Energy Resolution:1%
Voltmeter Accuracy :1%
Temperature: -20~70°C
Humidity:10-80%
Black wire connect to negative, red to positive
External Dimension:48×29×21 mm
Hole Dimensions :45.5×26.5 mm
With a shell, easy to use stand-alone or embedded in the panel on the product.

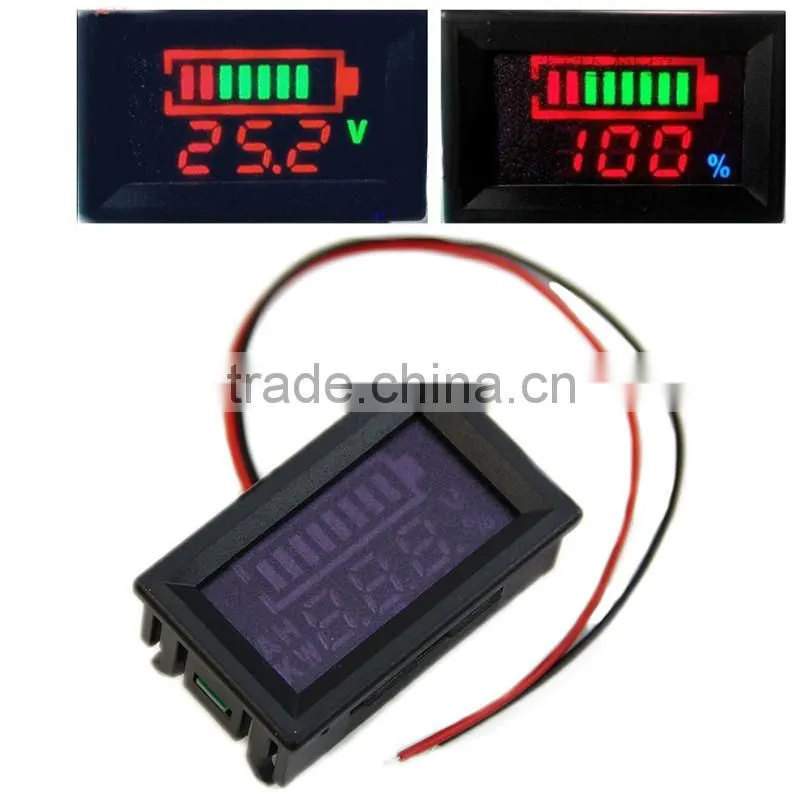

Display Mode:Battery +voltage,Battery +Percentage
Supply voltage: DC6-120V (maximum)
Test voltage: DC6 ~ 120V
How to use:
1. Press the white button on the backside for about 3s until it shows “1-U” and release it. Press it again for 1s it shows “2-b” and release it. Press it again for another 1s it shows “3-c” and release it. Press it again for another 1s it shows “4-d”.
2. When it shows “1-U”, Press the white button for 3s then you can adjust the voltage admeasuring apparatus. Press it for a longer time, the voltage goes up. Then Press it for another longer time, the voltage goes down. Do it again and again. To save and exit Automatically after the screen is twinkling.
3. When it shows “2-b”, you can change the type of battery.
12V: 1pc 12V Lead-acid battery
3.7V: 1pc 3.7V Lithium polymer battery
3.2V: 1pc 3.2V Lithium iron phosphate battery
1.2V: 1pc 1.2V NiMH battery
4.When it shows “3-c”, you can adjust the number of batteries.
Please refer to the following:
12V Lead-acid battery: 1-10pcs
3.7V Lithium polymer battery: 2-28pcs
3.2V Lithium iron phosphate battery: 3-32pcs
1.2V NiMH battery: 10-70pcs
5. When it shows “4-d”, you can adjust the display mode. “V” is voltage mode. “%” is percentage mode. “V %” is voltage& percentage cycle mode.
Note:
This tester for Lithium and lead-acid batteries Universal ,the factory default setting for 24V lead-acid battery power and voltage cycle display,If you need to test other specifications can be re-set by yourself.
