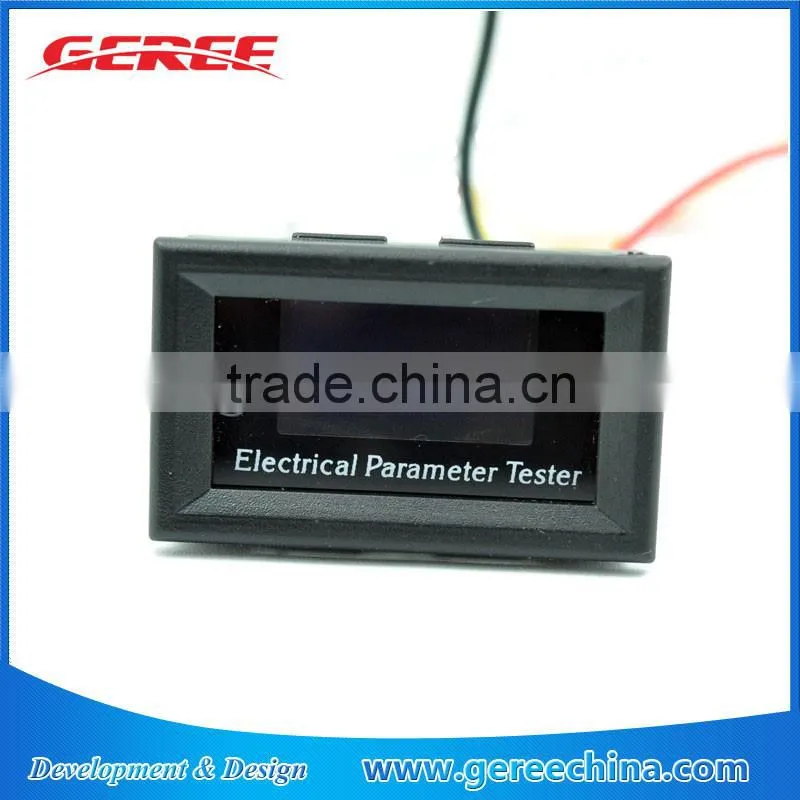

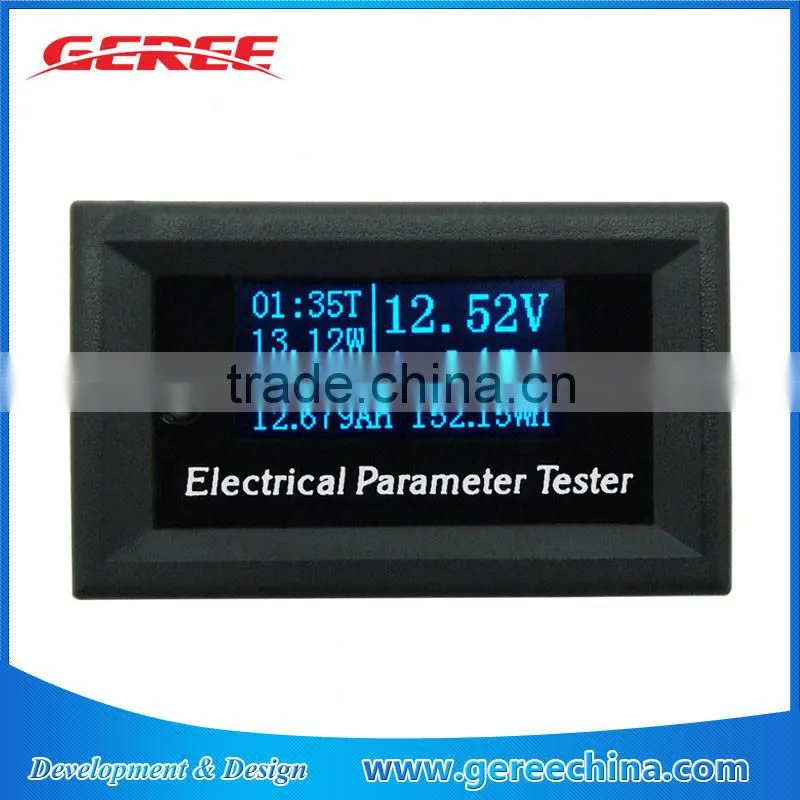

DC Combo Meter Voltage Current Time Power Watt Capacity Panel Tester Car Battery

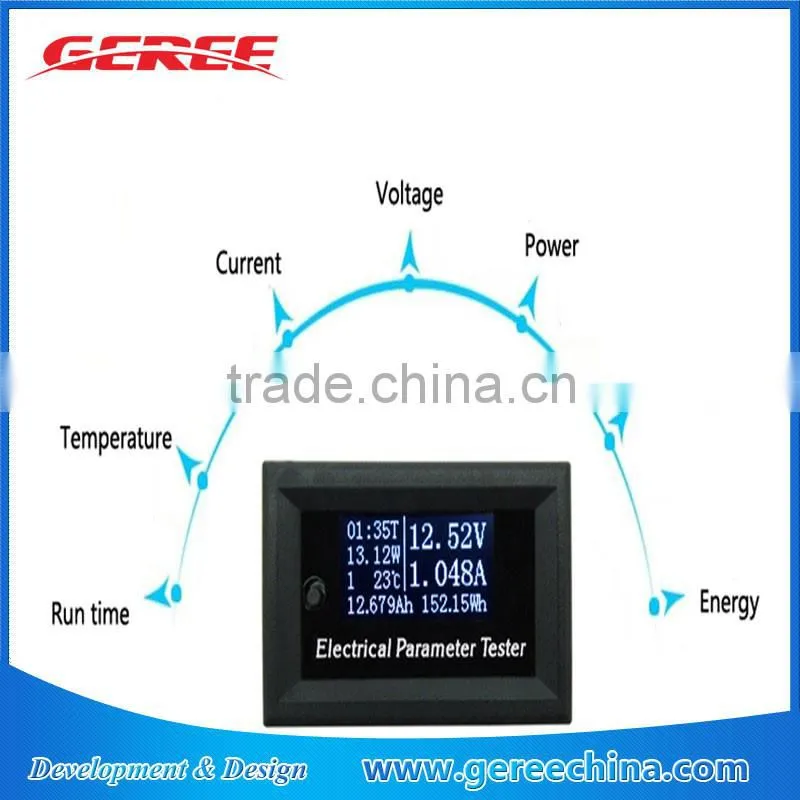

Technical parameter
Voltage measurement range:DC 0.00-33.00V
Current measurement range:DC 0.000-3.000A
Time measurement range:0-99h59min
Power measurement range:0-99.00w
Temperature measurement range:-15℃~60℃
Capacity measurement range:0-99.999Ah
Energy measurement range:0-999.99Wh
Voltage measurement accuracy:±(0.3%+2digit)
Current measurement accuracy:±(0.8%+3digit)
Product weight:18.5g

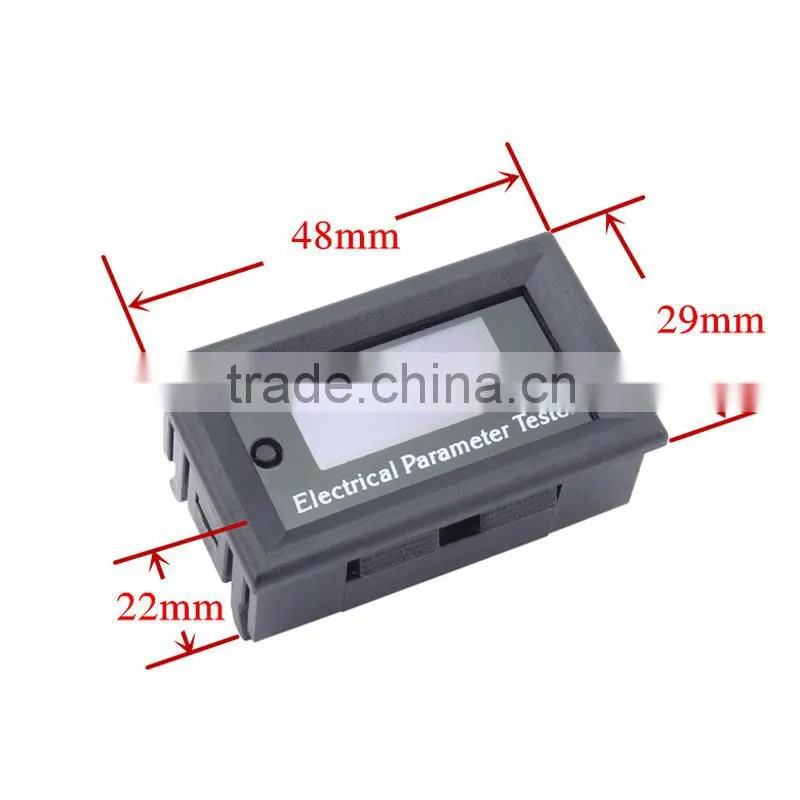

Product size:48mm×29mm×22mm
Button Function instrucion:
In the display inrrerface click the button to switch data set: keep pressing button to clear the accumulated data to zero the component aging and temperature variation after long-term use may appear tiny error when it measures small current . to avoid this error ,you can unplug the current wire socker and keep pressing the burron to connect power supply until the screen display (AAA) then loose button

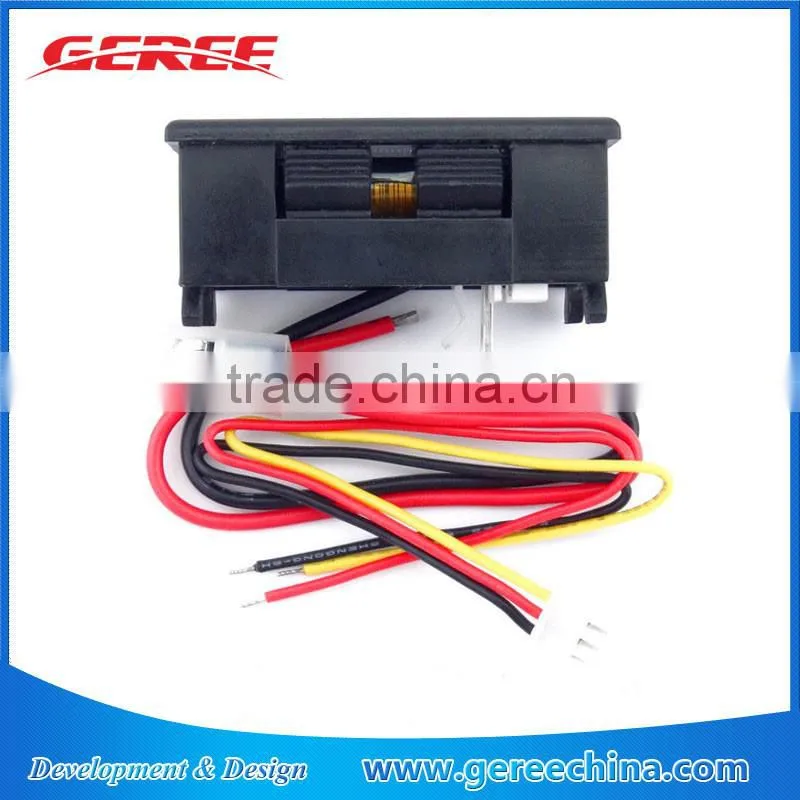

The wiring diagram instuction
red thin line
black thin line
yellow thin line
red thick line
black thick line
package include:
1x DC conbo meter voltage current time power watt capacity panel tester
