SIGN 1610 Reci 90w Double Head Laser Cutting Machine /auto Focus Laser Cutting Engraving Machine

How to choose suitable laser machine ?

1.choose suitable laser machine table, depend on your material length and wideth , standard size:

small size :400*300mm, 600*400mm, 900*600mm

middle size :1200*900mm, 1300*900mm, 1400*900mm

large size :1300*1800mm,1600*1000mm, 1300*2500mm,1500*3000mm

2. we have different laser tube power for different requirements

--most used for engraving , suggest you 40w/60w

--most for cutting , reci 150w /reci 180w

--both engraving and cutting , reci 90w /reci 100w more multifuntional

 SIGN 1610 reci 90w  double head laser cutting machine /auto focus laser cutting engraving machine

Model----SIGN-1610

working area --1600*1000mm

laser power --- 90w+90w/60w +150w/150w+150w

laser head --- double heads

cooling way ---water chiller

exhaust fan and air pump

professional controller and software

English manual and operating video

suit for perfect engraving and cutting co2 materials

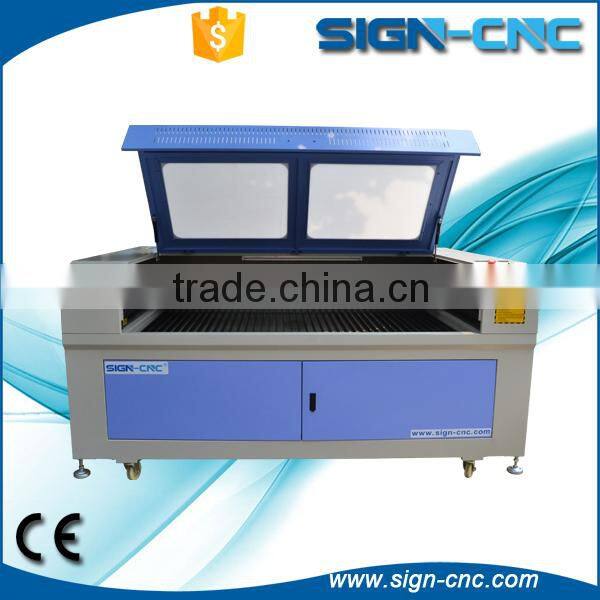

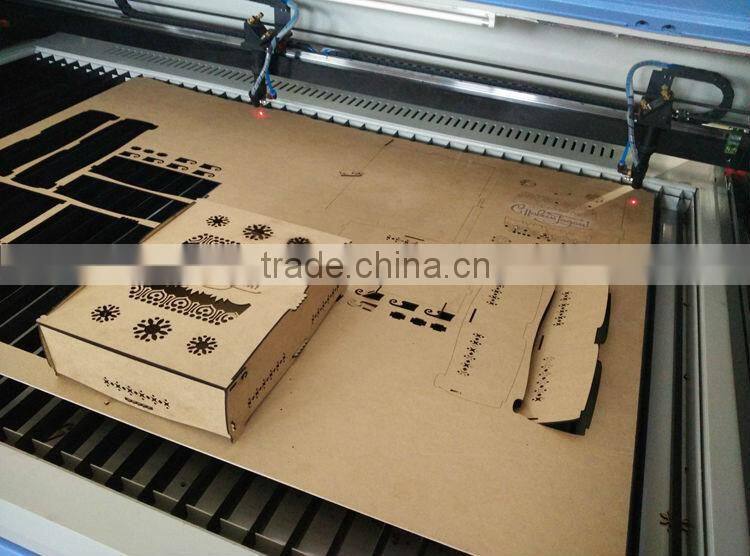

1. the machine pictures of laser cutting machine

2. machine features of laser cutting machine

---The imported linear guide way ensures the high precision and the long service.

---The stepper motor guarantees cutting and engraving smooth.

---The structure is strong enough to ensure the moving stable.

---High quality laser tube provides the strong beam and long service life.

---Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.

---The anti-pollution design improves the stability of the whole machine greatly.

3. Applicable materials

---wood /MDF /plywood/balsa wood/bamboo/PCB board /wooden crafts

---plastic/ acrylic/double color sheet

---cloth/fabric/leather/wool felt/ paper/cotton /silk/polyester

--glass/marble/stone/tombstone/headstone/granite

4. laser engraving cutting samples

5. Technical Parameter of laser cutting machine

 6. standard machine parts of laser cutting machine

2×laser tube

3 Reflcting Mirrors to reflect the light from Laser tube

1×CW3000 water chiller / 1×CW3000 +CW5200 water chiller

Air Exhaust Fan to protect the Focusing Len from pollution

1×RuiDa control system

1×CD (English manual and operating video )

1×tools

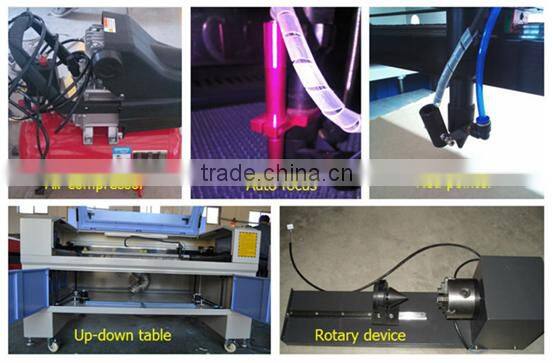

7. Optional laser parts

---Air compressor ---it used for cooling some flammable materials when working , such as wood, mdf, plywood, cloth, fabric, leather

---Auto focus ---it can automatic measure the distance from the laser head to worktable , more accuracy

---Red pointer --it can see the location of laser light

---Rotary system --it used for engraving some cylinder materials, such as bottle,  Irregular wood materials

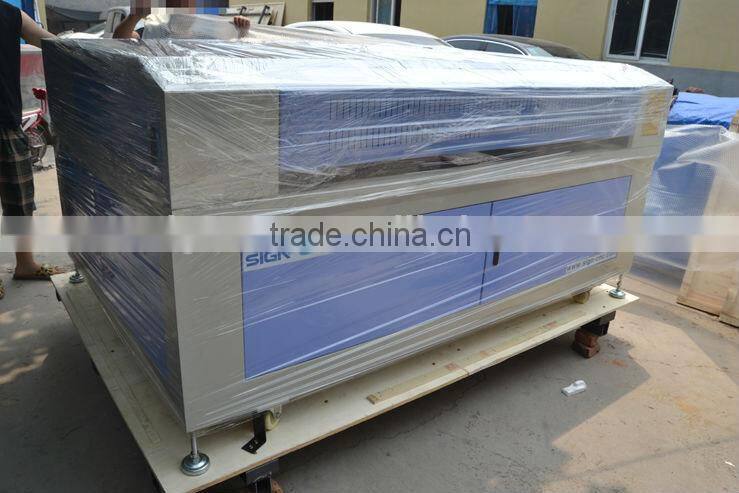

8. Packing parts

  We use the strong non-fumigation wooden case with steel tube under the pallet, so it can avoid any damage to the machine

9. After Sale Service

1.  Service before sale: our salesman will try to know more about your demands about the laser engraving cutting machine , including the max working size, main processing materials and the thickness , so we will offer you suit machine

2.  Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts

3.  Service before shipping : the machine parts will be installed and tested by our professional technician, send the test video according to customer’s processing materials for customer confirmations

4.  Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.   Service of teaching : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely

6.  Service of warranty : we guarantee the machine for 2 years, some machine parts ( quality problems ) can be free charge to replace it within warranty

10 .FAQ

1. I want to cut acrylic 20mm , and also want to engrave wood , could you recommand me one machine?

ok , no problems, please tell me your max working area , we have the double heads laser cutting machine , the laser power is 60w +150w . the 60w is used for engraving , the 150w is used for cutting .

2. I want to cut 20mm acrylic , i want to use 150w laser power . but when i want to engrave , so could i put the 150w becomes 60w ?

dear friend, this can not use 150w becomes 60w .it will effect the whole machine structure and the processing effective

3. what is the formats are your machine support ?

our laser machine support Coreldraw, Photoshop, AutoCAD, Tajima ect
