Specifications
sign making machine1.CO2 sealed laser tube
2.Window is fireproof glass
3.DSP off line control

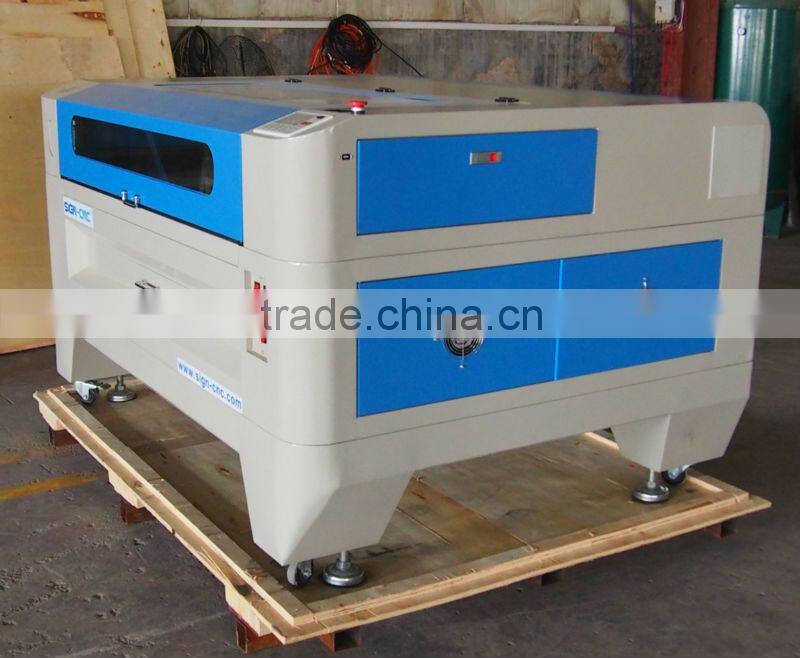

Jinan China hot sale CO2 laser machine for sign making machine :
Machine Features:
CO2 Glass sealed laser tube
China famous brand (Weeson, Reci), good beam mode stability, service time over 1500~8000 working hours.
Applicable Industries:
Furniture industry, Model industry,Decoration,Electronics, Advertising, Embroidery, garments, label processing, arts and crafts, etc.
Applicable Materials:
Non-metal materials such as label, rubber, marble, granite glass, tiles, paper boards, leather, embroidery, PVC,acrylic, plastic, MDF, wooden plates, garment and paper ware etc.
Technical Parameters:
Model | SIGN-1390 |
Cutting area | 1300x 900mm (51 x 35") |
Laser power | 80W / 100W / 150W |
Laser type | CO2 sealed laser tube,water-cooled,10.6um |
Working life of laser tube | More than 8000 hours |
Engraving speed | 0-60000mm/min |
Resolution ratio | ≤0.0125 |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | AC 110 - 220V ± 10%, 50 - 60Hz |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0mm x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | Tajima, CorelDraw, Photoshop, AutoCAD |
Driving system | Stepper motor and belt |
Cooling mode | Water-cooling by water chiller |
Packing Dimensions | 2300x1850x1380mm |
Net Weight | 450kg |
Optional Spare Parts | Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts | Laser Tube and Lens |
The optional items:

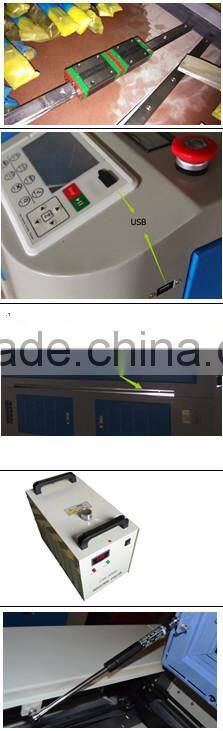

| 1. Adopt international linear rail HIWIN, more precision. | |
2. Easy to operate. USB offline control system: design on one computer and used on many machines. | ||
3. Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the workpiece length. | ||
4. High quality water cooler, protect stable radiation and prolong the lift-span of laser. | ||
5. Lift gas spring with a high quality more smooth and long lifetime | ||

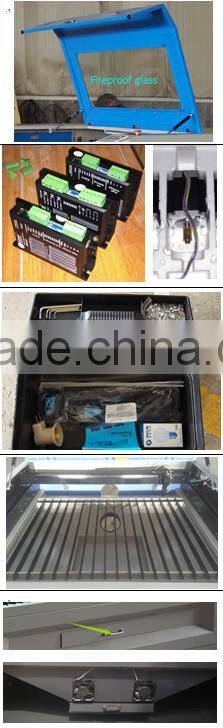

| 6. Fireproof window, more security. | |
7. High accuracy stepper motors and drivers. Belt transmission | ||
8. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick | ||
9. Aluminum blade table: to process hard materials like acrylic, wood and so on. | ||
10. With the drawer and the funnel design for collecting remnant material, it is convenient to use. | ||

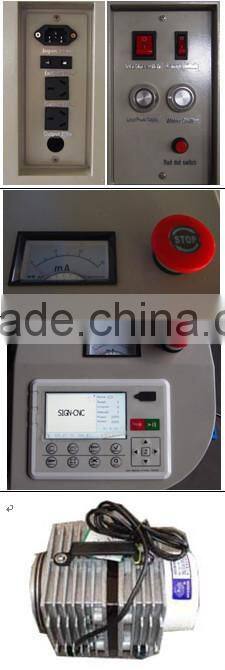

| 11. Machine switch and Saft Socket: All the switches the plug base and other connections are not bulgy of surface of the machine, this make sure safety of the workers. | |
11. Emergency switch: the machine can be suspended in an emergency. More safety. | ||

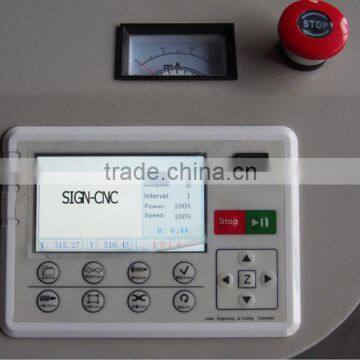

12. DSP Control panel: you can control the machine off line through the control panel. More convenience. | ||
13. Air pump have been used when you engraving. And cutting the acrylic and plastic. | ||
The optional items: | ||
| 1. Honeycomb platform: to engrave soft materials like paper, leather and so on. | |
2. Red point for position: The laser is invisible. Red dot shows the position of the laser on the material,, quickly find the position. | ||
3. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on. | ||
4. Auto-focus: Engrave uneven surface, help to get the best focus distance. | ||
5. Up/down Z-axis: to adjust the height of table, for putting 300mm depth materials. | ||

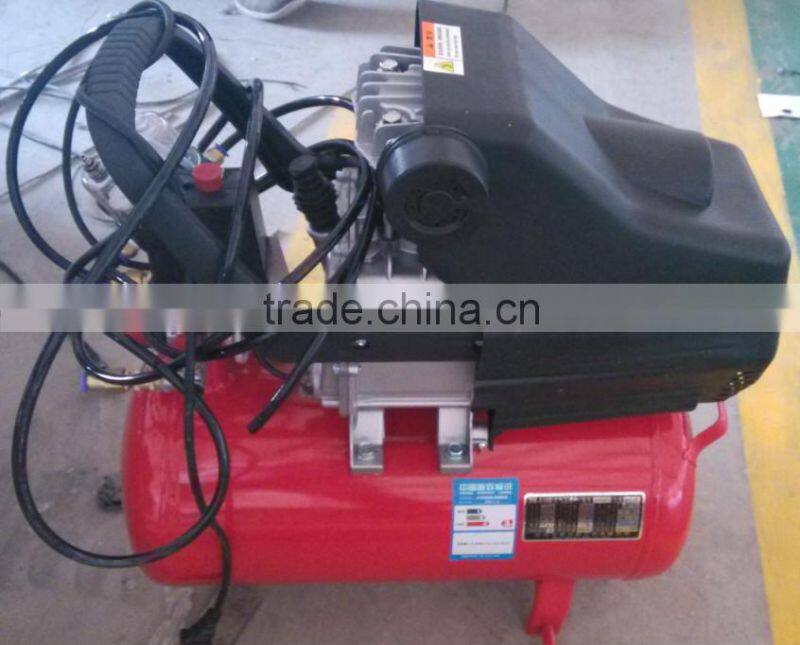

| 6. Air compressor: When you cutting the leather, fabric and wood you need to change the air pump to air compressor. In order avoid the materials burn. | |

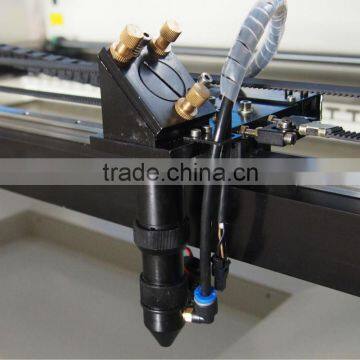

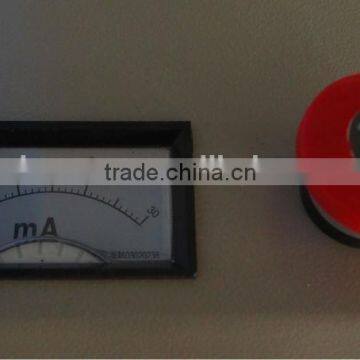

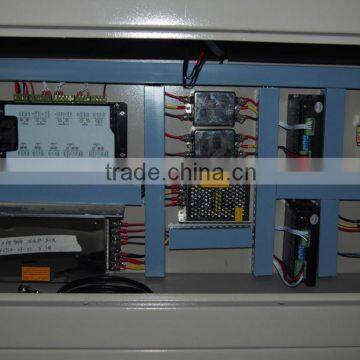

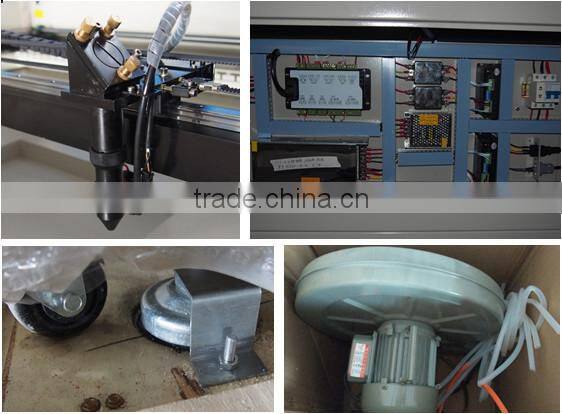

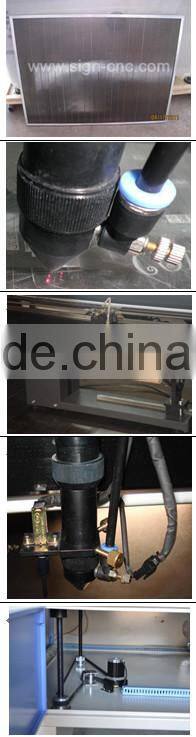

Other details:
Samples display:
Acrylic and sponge
Wood
Fabric
wool felt

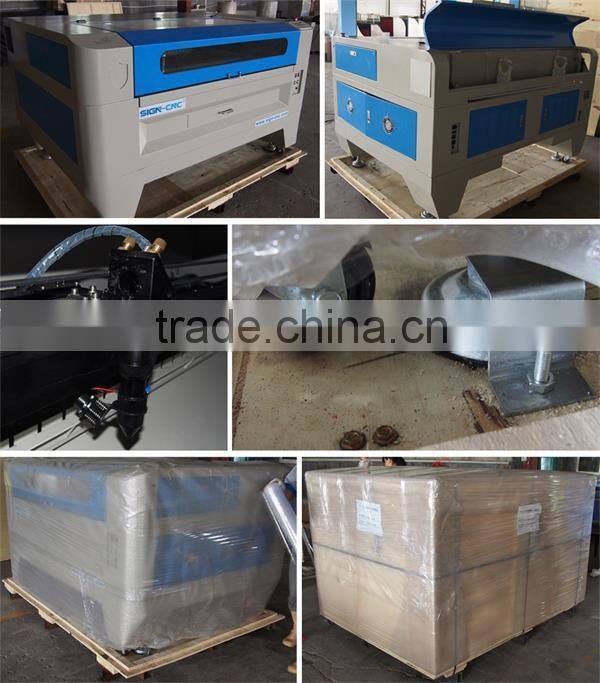

Packing:
Our Services:
1.Two year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
Our customers:
About Us:
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
