Specifications
Leading wire1. High quality, low price,quick delivery
2. Professional OEM manufature
3. ISO,CCC,UL,VDE

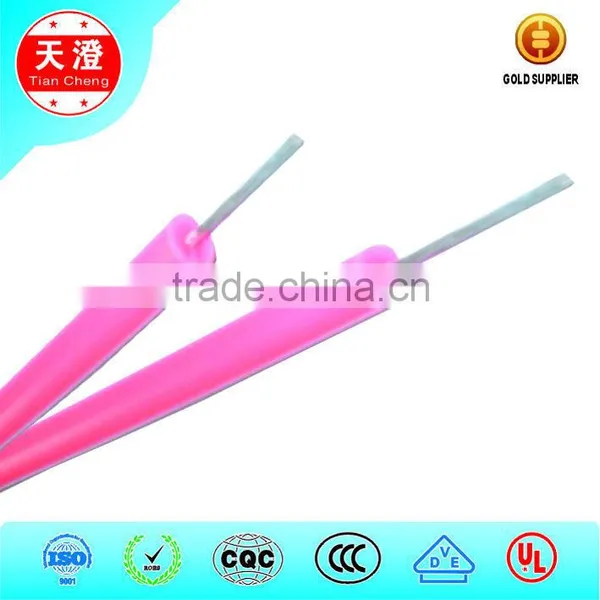

10mm2 Silicone Rubber Insulated High-voltage Electrical Motor Leading Wire
Product features:
Rated voltage: 6000V
Rated temperature: -60°c~200°c
Conductor: tin-coated copper wire
Insulator: Silicone Rubber
|
Spec. mm |
Conductor |
Insulation |
Wire dimeter |
Max resistance 20°C (Ω/KM) |
|||
Structure No/mm |
Diameter mm |
Nominal Thickness mm |
Min Thickness mm |
Nominal mm |
Tolerance mm |
||
0.75 |
24/0.20 |
1.15 |
2.3 |
1.97 |
5.75 |
±0.25 |
26.7 |
1.0 |
32/0.20 |
1.34 |
2.3 |
1.97 |
5.95 |
±0.25 |
20.0 |
1.5 |
30/0.25 |
1.60 |
2.5 |
2.15 |
6.60 |
±0.30 |
13.7 |
2.0 |
41/0.25 |
1.90 |
2.5 |
2.15 |
6.90 |
±0.30 |
9.9 |
2.5 |
49/0.25 |
2.00 |
2.8 |
2.42 |
7.60 |
±0.30 |
8.21 |
4.0 |
56/0.30 |
2.70 |
2.8 |
2.42 |
8.30 |
±0.30 |
5.09 |
6.0 |
84/0.30 |
3.30 |
3.0 |
2.6 |
9.30 |
±0.30 |
3.39 |
10.0 |
84/0.40 |
4.60 |
3.0 |
2.6 |
10.6 |
±0.30 |
1.95 |
Certificates:

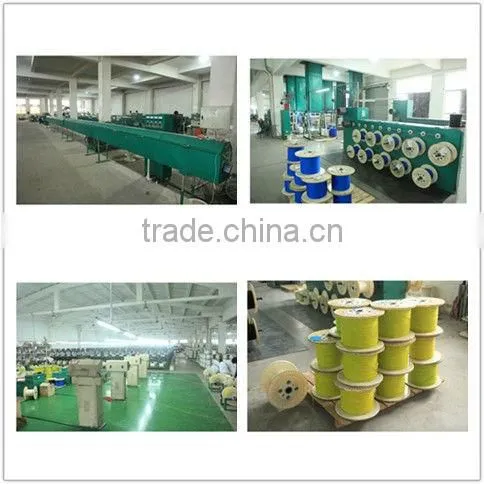

Production Line:
More details
As an ISO9001:2000 and ISO14001:2004 E certified company, we are specialized manufacturer of heat and fire resistant cables, power cables, heating cables, communication cables and various kinds of sleeves. Ranging from silicone rubber, PVC/XLPE and Teflon insulated/sheathed cables to mica taped and fiberglass braided cables, coaxial cables as well as silicone, fiberglass and heat shrinkable sleeves, our products are UL, VDE or IEC certified and RoHS/REACH compliant, which are mainly used for such industries as automobile, motor, metallurgy, power, railway, home appliance and lighting etc.
