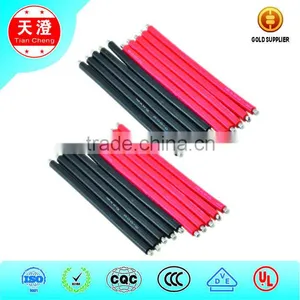

Help CenterUL 3212 3213 High Voltage Double Insulation Silicone Rubber Wire
Related Products
-
SIF Braidless VDE Silicone Cable WireUS$ 0.02 - 4MOQ: 2000 Meters -
JG-500V Silicone Rubber Insulation Electrical Motor Leading High-voltage WireUS$ 0.2 - 50MOQ: 1000 Meters
-
JG-1000V Silicone Heat Resistant Electrical Motor Leading Wire Quality ChoiceUS$ 0.5 - 50MOQ: 5000 Meters
-
1.0mm2 EN 50143 B Silicone Rubber High Voltage Wires and CablesUS$ 0.1 - 2MOQ: 2000 Meters
-
0.75mm AGR Silicone Rubber Heat Resisiting Wires and CablesUS$ 0.1 - 0.8MOQ: 2000 Meters
Specifications
double insulation silicone rubber wire1 high quality,low price
2 professional OEM manufature
3 UL,SGS,ISO,CCC,VDE

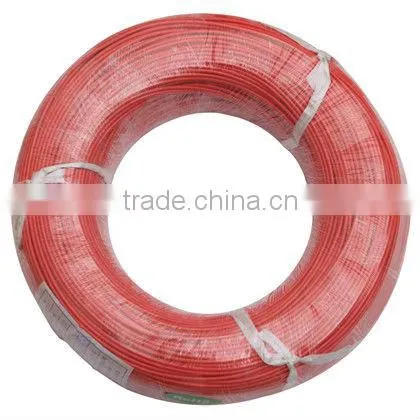

UL 3212 3213 high voltage double insulation silicone rubber wire
Specifications
1.Rated Voltage:600V
2.Rated temperature:-60°C~+150°C
3.Conductor: nickel-coated, tin-coated and silver-coated copper wire
4.Insulator: silicone rubber
5.Applicable for electron, electrical household appliance, lamps and lanterns, and the internal high temperature environment of combustion equipment
Product dimensions
|
Type |
AWG NO. |
Spec. mm² |
Conductor |
Insulation |
Wire dimeter |
Max resistance 20°C (Ω/KM) |
|||
|
Structure No./mm |
Diameter mm |
Nominal Thickness mm |
Min Thickness mm |
Nominal mm |
Tolerance mm |
||||
|
UL 3212 |
26 |
0.128 |
7/0.16
|
0.48 |
1.14 |
1.03 |
2.80 |
±0.10 |
148 |
24 |
0.205 |
7/0.20 |
0.60 |
1.14 |
1.03 |
2.90 |
±0.10 |
93 |
|
22 |
0.324 |
7/0.25
|
0.75 |
1.14 |
1.03 |
3.05 |
±0.10 |
55 |
|
20 |
0.519 |
7/0.31 |
0.93 |
1.14 |
1.03 |
3.25 |
±0.15 |
34.6 |
|
18 |
0.823 |
7/0.39 |
1.17 |
1.14 |
1.03 |
3.45 |
±0.20 |
21.8 |
|
16 |
1.31 |
7/0.49 |
1.47 |
1.14 |
1.03 |
3.75 |
±0.20 |
13.7 |
|
14 |
2.08 |
7/0.62 |
1.86 |
1.14 |
1.03 |
4.15 |
+0.30 -0.20 |
8.62 |
|
12 |
3.31 |
43/0.32 |
2.50 |
1.14 |
1.03 |
4.80 |
+0.30 -0.20 |
5.43 |
|
10 |
5.261 |
35/0.45 |
3.20 |
1.14 |
1.03 |
5.50 |
+0.30 -0.20 |
3.41 |
|
|
UL 3213 |
8 |
8.367 |
70/0.40 |
4.40 |
1.52 |
1.37 |
7.45 |
+0.30 -0.20 |
2.30 |
6 |
13.30 |
105/0.40 |
5.30 |
1.52 |
1.52 |
8.35 |
+0.40 -0.20 |
1.42 |
|
4 |
21.15 |
168/0.40 |
6.80 |
1.52 |
1.37 |
9.85 |
+0.40 -0.20 |
0.89 |
|
2 |
33.62 |
266/0.40 |
8.50 |
1.52 |
1.37 |
11.60 |
+0.40 -0.20 |
0.56 |
|
Production Line
Product show
Certificates
Quality Control & Test Instruments
Factory Overlook
