Automatic Water Filling Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 220V 415V 440V | Power | 5kw | |
| Place of Origin | Jiangsu, China | Brand Name | Hongma Automatic Water Filling Machine | |

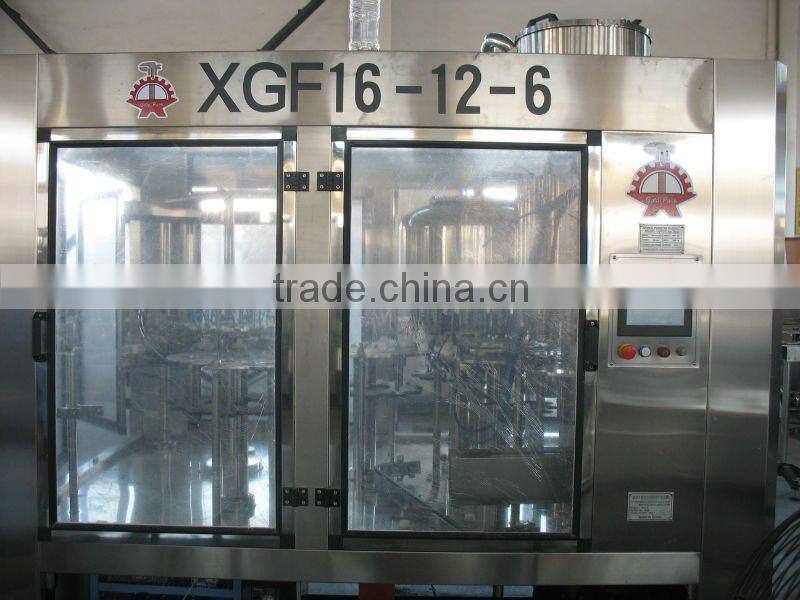

| Model Number | XGF16-12-6 Automatic Water Filling Machine | Dimension(L*W*H) | 2400*1800*2230 | |
| Weight | 2500kg | Certification | CE. ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Jiangsu Hongyu Machinery Co., Ltdinsists regarding market as direction, science and technology as key, quality as basis while service as guarantee. It has been issued ISO9001 international quality system certificate.
The main products of our company are water filling machines. And also the compelte water treatment equipments of different bottling, brrelling and canning production line, such as mineral water, pure water, soda, juice, tea and other liquid.
Main Technical parameters
Model | XGF16-12-6 | XGF18-18-6 | XGF24-24-8 | XGF32-32-12 |
Production Capacity (B/H, 500ml) | 4000-5000 | 6000-8000 | 8000-10000 | 10000-12000 |
Washing Heads | 16 | 18 | 24 | 32 |
Filling Heads | 12 | 18 | 24 | 32 |
Capping Heads | 6 | 6 | 8 | 12 |
Suitable Bottle Size | Round or Square | |||
Diameter of Bottle (mm) | φ50-φ90 | |||
Height of Bottle (mm) | 150-310 | |||
Compressed Air Pressure (Mpa) | 0.3-0.7 | |||
Washing Medium | Aseptic Water | |||
Washing Pressure (Mpa) | 0.25 | |||
Power (KW) | 3.13 | 3.84 | 4.1 | 5.6 |
Overall Dimension (mm) | 2400×1800×2300 | 2600×2000×2300 | 3000×2280×2300 | 4300×2300×2300 |
Weight (kg) | 2500 | 3000 | 4000 | 5000 |
