Specifications
infrared ir touch open frame touch monitorsingle-touch or dual-touch;
Dual rs232 and USB touch interface
IP65 for 15"-22"

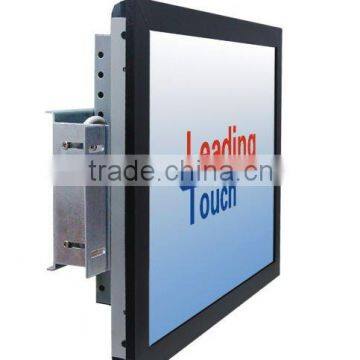

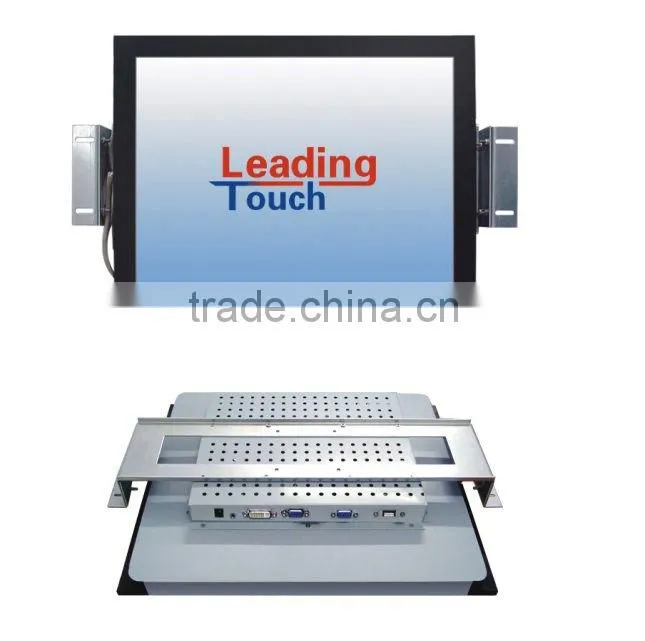

Leadingtouch 19" 4:3 Open Frame IR Infrared Multitouch Touch Screen LCD Monitor TM-1928 a customized rear and side mountable flat panel LCD monitor with the flexibility to integrate IP65 Infrared touchscreens. These TM series LCD monitors provided you with premium quality in optical resolution, durabilityand stability. Built with watertight IP65 rated front bezel, this unit becomes completely dust and waterproof. These could also withstand various public andweather conditions.
Model |
TM-1928 |
Description |
19″TFT Open Frame Touchmonitor |
Case/Bezel Color |
Black |
Display |
4:3 Ratio Active matrix TFT LCD |
Optimal(native) resolution |
1280X1024@60Hz |
Sychronization Range |
Horizontal:30-80 kHz; Vertical: 60-75Hz |
Useful screen area |
Horizontal: 14.81" (376 mm);Vertical: 11.85" (301mm) |
Colors |
16.7 million |
Brightness |
LCD panel: 300cd/m2 (typical) |
| |
With SAW touchscreen: 280 cd/m2 (typical) | |
Pixel Pitch |
0.294 x 0.294 mm |
Response Time |
8 msec (typical) |
Contrast ratio |
800:1 typical |
Viewing angle(typical, from center) |
Horizontal (left/right): 160°(80° /80° ) |
Vertical (up/down): 170°(85° /85° ) | |
Backlight Lamp life |
50,000 Hrs to 1/2 brightness |
Input video format |
VGA or DVI optional |
Input video signal connector |
Mini D-Sub 15-Pin VGA type |
On Screen Display(OSD) |
Remote OSD with 1.2m cable |
Touch Technology |
IR Infrared Touchscreen |
Touch Interface |
Combo 10ms232 and USB interface |
Touch Resistive Time |
10ms |
Mounting Options |
Open Frame VESA, 75 mm & 100mm |
Power supply |
External:100-240V AC, 50-60 Hz |
Power Consumption |
50W max |
Temperature Range |
Operating: 0°C to 50°C; Storage: -20°C to 60°C |
Humidity Range |
Operating: 10%-90%; Storage: 5%-90% no condensing |
Touchmonitor Dimension |
515x 367x 65.7(mm) |
Shipping Carton Dimension |
TBD |
Weight(approx.) |
TBD |
Warranty |
1 year |
Agency Approvals |
FCC, CE, RoHS compliant |
