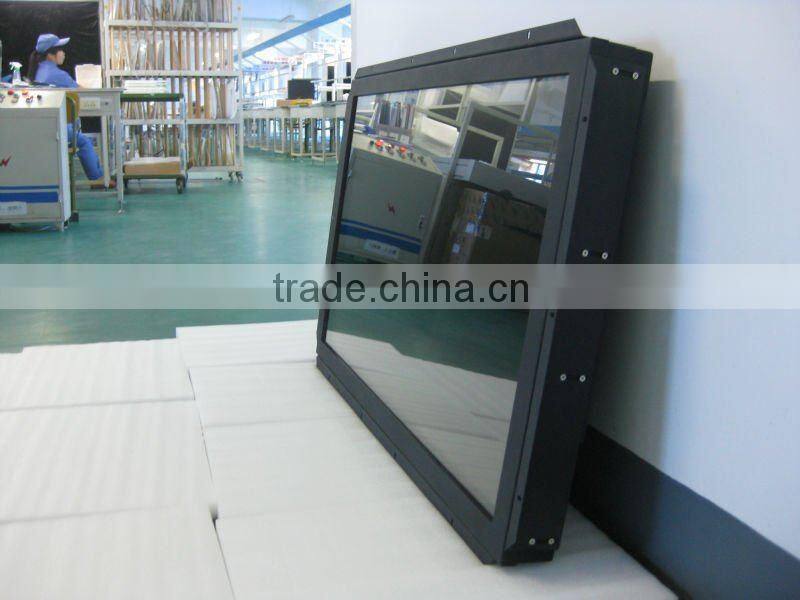

Leadingtouch 32'' IP65 Multitouch IR Infrared Touch Monitor TM-3258

Model

TM-3258

Description

32” TFT Open Frame Touchmonitor

Case/Bezel Color

Black

Display

16:9 Ratio 32”Active matrix TFT LCD

Optimal(native) resolution

1366X768@60Hz

Sychronization Range

Horizontal:48 kHz; Vertical: 60Hz

Useful screen area

Horizontal: 27.44"( 697mm);Vertical: 15.43" (392mm)

Colors

16.7 million

Brightness

LCD panel: 500 cd/m2 (typical)
with touchscreen: 230 cd/m2 (typical)

With Infrared touchscreen: 480 cd/m2 (typical)

Pixel Pitch

0.511 x 0.511 mm

Response Time

16 msec (typical)

Contrast ratio

1200:1 typical

Viewing angle(typical, from center)

Horizontal (left/right): 170°(85° /85° )

Vertical (up/down): 170°(85° /85° )

Backlight Lamp life

50,000 Hrs to 1/2 brightness

Input video format

VGA or DVI optional

Input video signal connector

VESA DDC 1/28

On Screen Display(OSD)

Remote OSD with 1.2m cable

Touch Technology

Infarared

Touch Interface

Combo serial (RS232) and USB interface

Touch Resistive Time

20ms

Mounting Options

Rear Fixed, 75 mm & 100mm VESA mount

Power supply

External:100-240V AC, 50-60 Hz

Power Consumption

115W Typical

Temperature Range

Operating: 0°C to 50°C; Storage: -20°C to 60°C

Humidity Range

Operating: 10%-90%; Storage: 5%-90%, Non condesing

Touchmonitor Dimension

784x 475 x 115(mm)

Warranty

Monitor: 3 years’; LCD Panel: 1 year

Agency Approvals

FCC, CE, RoHS compliant
