Help CenterSAW, Infrared, IR, Resistive, Capacitive Open Frame 12 Inch Touch Screen Monitor
Related Products
-
LeadingTouch 19inch P-CAP Touch Panel All In One ComputerUS$ 400 - 800MOQ: 1 Piece -
26inch Full HD Multitouch Touch Screen MonitorUS$ 500 - 550MOQ: 1 Piece
-
LeadingTouch 17" Open Frame Touch Monitor for Kiosks TM-1739US$ 200 - 300MOQ: 1 Unit
-
TM-1939 for Gaming Kiosks Compatible ELO SAW Touch Open Frame Touch MonitorUS$ 220 - 300MOQ: 1 Unit
-
LeadingTouch 55" Multitouch Open Frame Touch Touch Monitor TM-5558US$ 1,000 - 2,000MOQ: 1 Unit
Specifications
1, 12inch touch screen monitor2, SAW or IR touch solution
3, USB VGA DVI input
LeadingTouch is professional manufacture of touch screen and touch monitor and touch screen.
TM-1268 is open frame 12inch touch screen monitor , IR (infrared) touch Technology, apply for Kiosk, ATM, Vender Machine, Gaming Machine, Advertising, wide application evironment, dustproof, waterproof, anti-vandalism.

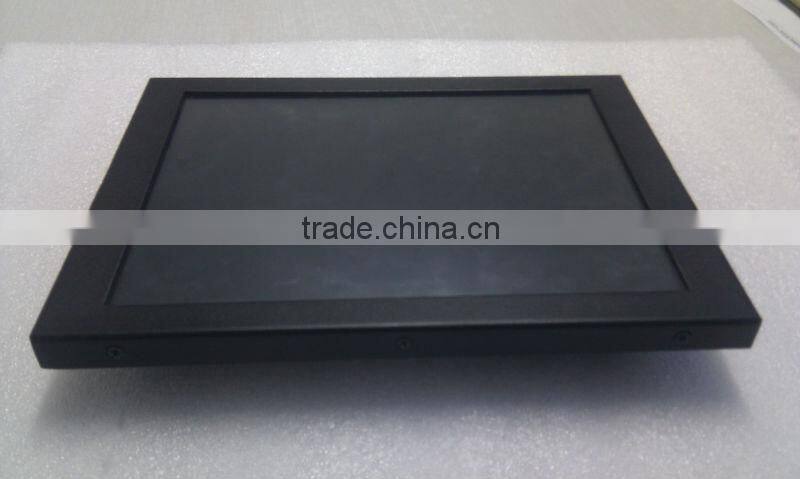

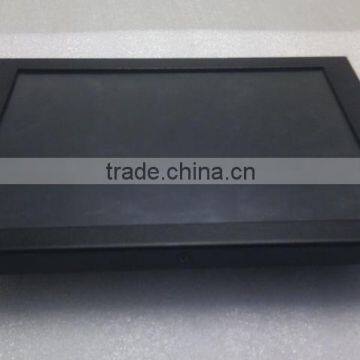

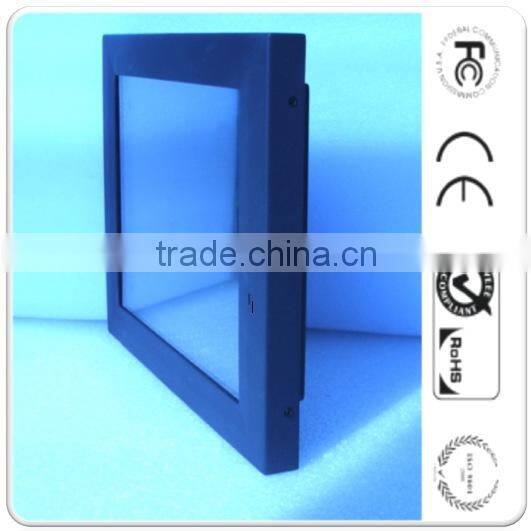

Leadingtouch 12" Open Frame IR Infrared Touch Screen Monitor

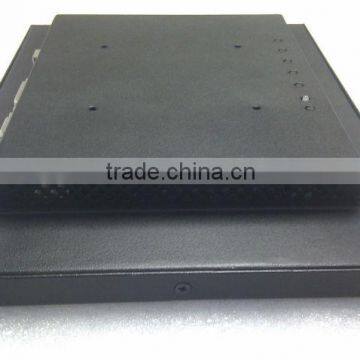

TM-1268 is a customized rear and side mountable flat panel LCD monitor with the flexibility to integrate touch technologies IP65 Infrared touchscreens. These TM series LCD monitors provided you with premium quality in optical resolution, durability and stability. Built with watertight IP65 rated front bezel, this unit becomes completely dust and waterproof. These could also withstand various public and weather conditions
Model | TM-1268 | |||
Description | 12" Rear-Mount IP65 Monitor | |||
Case/Bezel Color | Black/ White | |||
Display | 4:3 Active Matrix TFT LCD | |||
Optimal (native) Resolution | 800 × 600 @60Hz | |||
Sychronization Range | Horizontal: 30-80 kHz, Vertical: 60-75 Hz | |||
Useful Screen Area | 246.4 mm × 185.2mm | |||
Colors | 16.7 M | |||
Brightness | 400 cd/m2 | |||
Pixel Pitch | 0.3075 × 0.3075 mm | |||
Response Time | 25ms (Typically) | |||
Contrast Ratio | 350:1 (Typical) | |||
Viewing Angle(CR≥10) | Horizontal: ±60° or 120° total | |||
Vertical: 40°/ 60° or 100° total | ||||
Backlight Lamp Life | 50000 hrs | |||

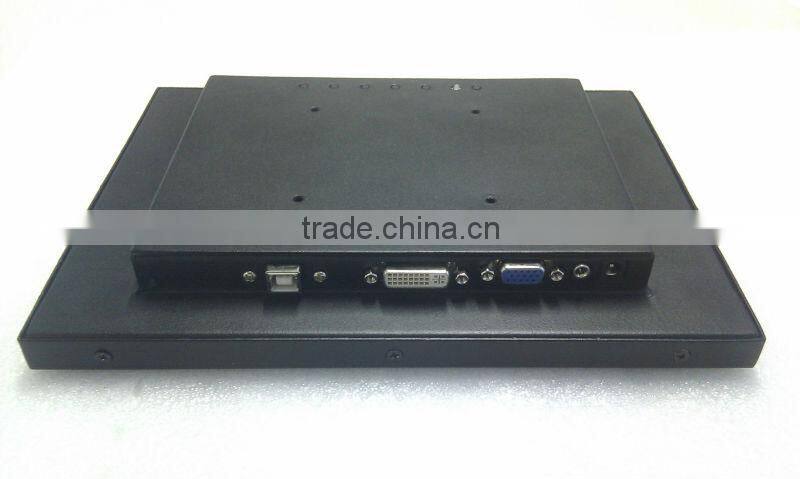

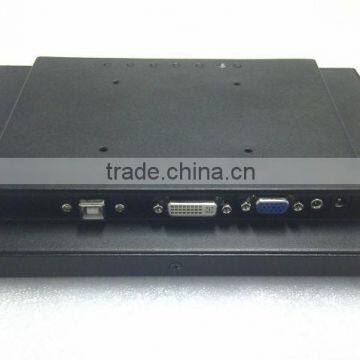

Input Video Format | VGA & DVI | |||
Input Video Signal Connector | VGA & DVI | |||

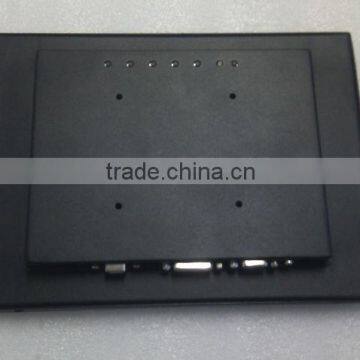

On Screen Display(OSD) | Controls (back): ON/OFF,MENU,LEFT,RIGHT,SEL,AUTO | |||
Mounting Options | VESA Mount (75mm) | |||
Power Supply | External Adapter: 100-240VAC, 50-60Hz | |||
Power Consumption | 36W Max | |||
Temperature Range | Operating: 0°C to 50°C; Storage: -20°C to 60°C | |||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |||
Dimension and Weight | Item | QTY (UNIT) | Dimension (mm) | Weight (KGS) |
Monitor | 1 | 292 x 231 x 34 | 2.0 | |
Box After Packing | 1 | 370 x 160 x 350 | 3.2 | |
Warranty | 1 year | |||
Agency Approvals | FCC, CE, RoHS | |||

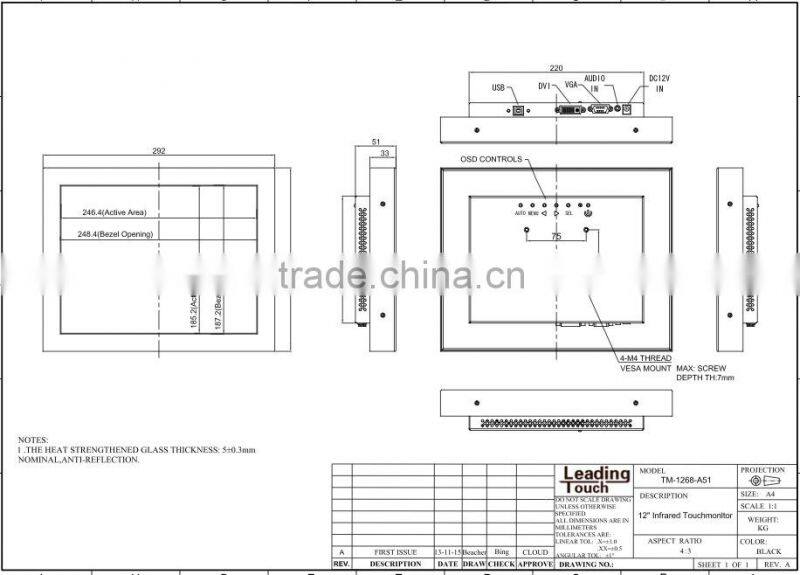

Drawing
Carton or Pallent
37 x 16 x 35cm x 1carton for 1unit

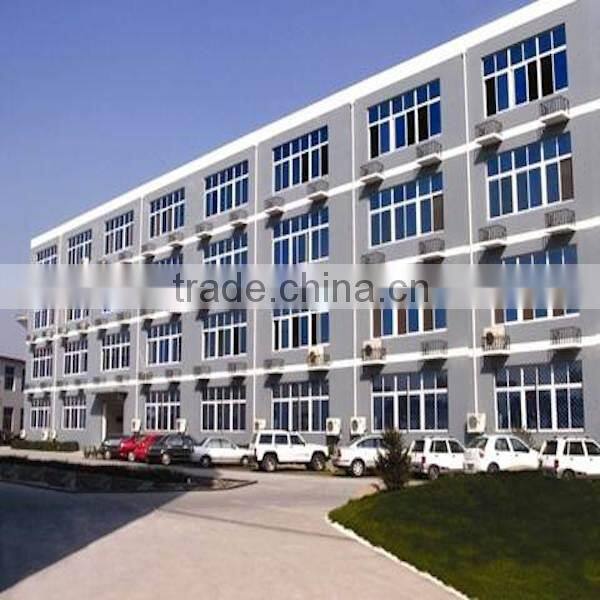

Welcome to visit LeadingTouch Technology Co.,Ltd. in BeiJing China.
LeadingTouch was founded in 2001, to design, develop, manufacture and market Touch Product.
LeadingTouch is major producer of Surface Acoustic Wave (SAW), Infrared (IR) Touch Sreen, Touch Bezel and Touh Monitor in the world over 10 years for POS, Kiosks, ATM, Retail, Hospitality, Interactive Digital, Industrial, Medical, Gaming, Transportation, Custom... and travel the world over by excellent Management, Powerful Technical Team and R&D, Strong Production Capacity outsanding sales and service network
It is proud that we have so many good people working here who care enough to do their very best. Quality, continual improvement and customer satisfaction are the personal responsibility of each employee.
